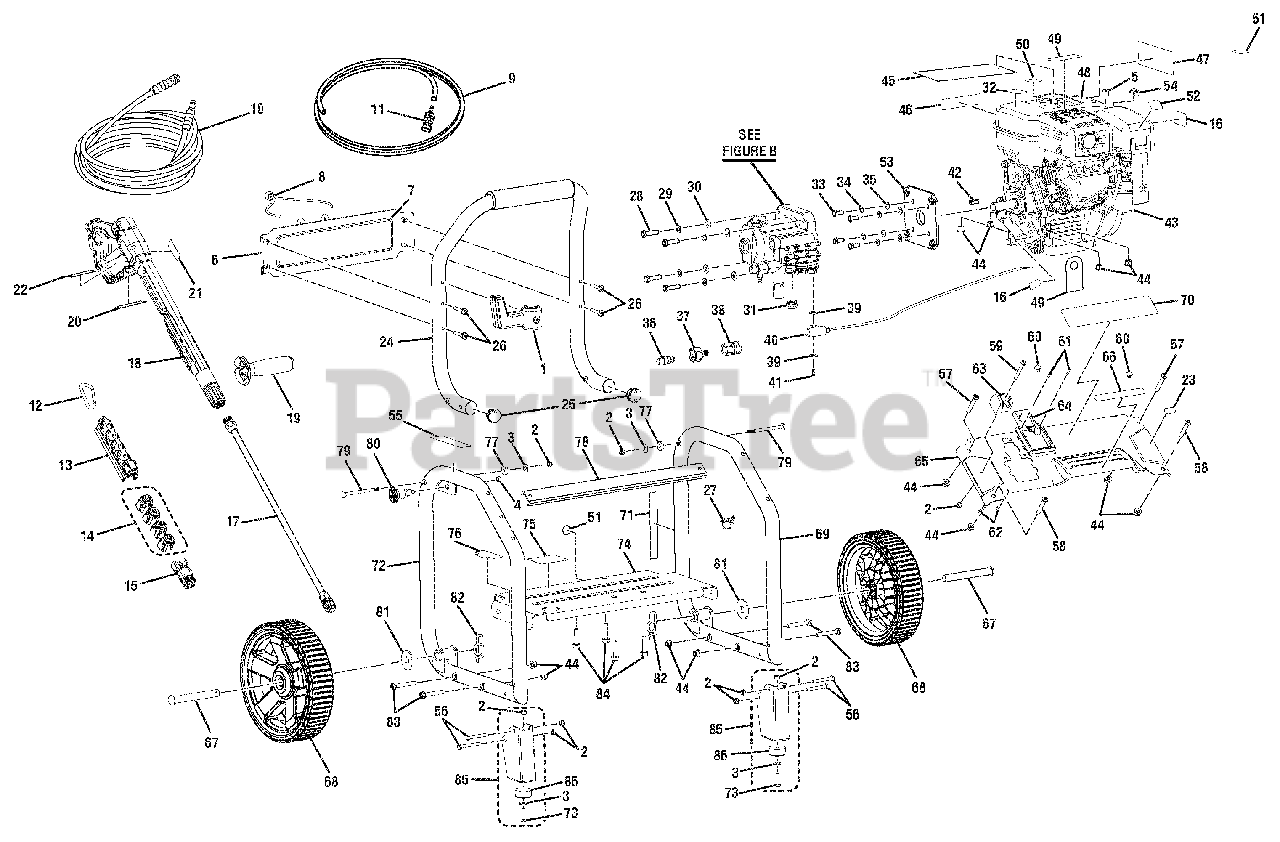

986003 - Gravely Pressure Washer (SN: 002001 & Above) Assembly Parts Diagram

Pressure Washer

Assembly Parts Diagram

  • Title

1

Gravely 20000418

WAND HOLDER ASSEMBLY

$

$

Not available

2

Gravely 20000419

LOCK NUT (1/4-20)
(Superseded to 20000836)

Note: (1/4-20)

$

$

Not available

3

Gravely 20000420

WASHER (1/4 IN.)

Note: (1/4 in.)

$

$

Not available

4

Gravely 20000421

LOCK NUT (1/2-20)

Note: (1/2-20)

$

$

Not available

5

Gravely 20000422

SWIVEL BUSHING

$

$

Not available

6

Gravely 20000423

LOGO PLATE

$

$

Not available

7

Gravely 20000511

PERFORMANCE LABEL

$

$

Not available

8

Gravely 20000425

BUNGEE CORD AND BEAD ASSEMBLY

$

$

Not available

9

Gravely 20000426

INJECTION HOSE

$

$

Not available

10

Gravely 20000427

HIGH PRESSURE HOSE (30 FT.)

Note: (30 ft.)

$

$

Not available

11

Gravely 20000428

INJECTION HOSE FILTER

$

$

Not available

12

Gravely 20000429

SPRING CLIP

$

$

Not available

13

Gravely 20000430

STORAGE HOLDER

$

$

Not available

14

Gravely 20000431

NOZZLE KIT

$27.99

$

Usually ships in 4-12 days

0

15

Gravely 20000432

SOAP BLASTER NOZZLE

$

$

Not available

16

Gravely 20000512

SQUEEZE TRIGGER LABEL

$

$

Not available

17

Gravely 20000433

SPRAY WAND

$

$

Not available

18

Gravely 20000434

TRIGGER HANDLE ASSEMBLY

Note: (Inc. Key Nos. 19-22)

$168.99

$

Usually ships in 4-12 days

0

19

Gravely 20000435

AUXILIARY HANDLE ASSEMBLY

$6.49

$

Usually ships in 4-12 days

0

20

Gravely 20000513

TRIGGER GUARD WARNING LABEL FS

Note: (French/Spanish)

$

$

Not available

21

Gravely 20000436

TRIGGER GUARD WARNING LABEL

Note: (English)

$

$

Not available

22

Gravely 20000514

MAX PRESSURE LABEL

$

$

Not available

23

Gravely 20000515

IDLE CONTROL LABEL

$

$

Not available

24

Gravely 20000439

HANDLE ASSEMBLY

Note: (Inc. Key No. 25)

$

$

Not available

25

Gravely 20000440

HANDLE TUBE CAP

$

$

Not available

26

Gravely 20000441

BOLT (1/4 X 42 MM PAN HD.)

Note: (1/4 x 42 mm, Pan Hd.)

$

$

Not available

27

Gravely 20000442

CABLE CLAMP

$

$

Not available

28

Gravely 20000443

BOLT (3/8-16 X 1-3/8 IN HEXHD)

Note: (3/8-16 x 1-3/8 in., Hex Hd.)

$

$

Not available

29

Gravely 20000444

LOCK WASHER (3/8 IN.)

Note: (3/8 in.)

$

$

Not available

30

Gravely 20000445

WASHER (3/8 IN.)

Note: (3/8 in.)

$

$

Not available

31

Gravely 20000446

THREADED VALVE PLUG

$

$

Not available

32

Gravely 20000516

DO NOT MIX LABEL

$

$

Not available

33

Gravely 20000447

BOLT (5/16-24 X 3/4 IN HEX HD)

Note: (5/16-24 x 3/4 in., Hex Hd.)

$

$

Not available

34

Gravely 20000448

LOCK WASHER (5/16 IN.)

Note: (5/16 in.)

$

$

Not available

35

Gravely 20000449

WASHER (5/16 IN.)

Note: (5/16 in.)

$

$

Not available

36

Gravely 20000450

THERMAL RELEASE VALVE

$23.99

$

Usually ships in 4-12 days

0

37

Gravely 20000451

GARDEN HOSE COUPLER W/FILTER

$

$

Not available

38

Gravely 20000452

QUICK DISCONNECT (FEMALE)

Note: (Female)

$

$

Not available

39

Gravely 20000453

SEAL

$

$

Not available

40

Gravely 20000454

THROTTLE CONTROL ASSEMBLY

$

$

Not available

41

Gravely 20000455

THROTTLE CONTROL BOLT(SPECIAL)

Note: (Special)

$8.49

$

Usually ships in 4-12 days

0

42

Gravely 20000456

OUTPUT SHAFT KEY (27 MM)

Note: (27 mm)

$

$

Not available

43

SP170 Hori. Engine (CARB, GV80991, 2012)

Note: (CARB, GV80991, 2012)

$

$

Not available

SP170 Hori. Engine (CARB, GV80991A, 2013)

Note: (CARB, GV80991A, 2013)

$

$

Not available

44

Gravely 20000457

LOCK NUT (M8 X 1.25 MM)

Note: (M8 x 1.25 mm)

$

$

Not available

45

Gravely 20000517

HANG TAG (ENGINE)

Note: (Engine)

$

$

Not available

46

Gravely 20000518

ADD LUBRICANT LABEL

$

$

Not available

47

Gravely 20000519

COMBUSTION WARNING LABEL

$

$

Not available

48

Gravely 20000520

DANGER LABEL (ENGINE)

Note: (English)

$

$

Not available

49

Gravely 20000521

OIL DIPSTICK HANG TAG

$

$

Not available

50

Gravely 20000522

E-85 LABEL

$

$

Not available

51

Gravely 20000523

CHECK OIL LABEL

$

$

Not available

52

Gravely 20000524

HOT MUFFLER LABEL

$

$

Not available

53

Gravely 20000458

PUMP FLANGE

$

$

Not available

54

Gravely 20000442

CABLE CLAMP

$

$

Not available

55

Gravely 20000473

HANDLE RELEASE LABEL

$

$

Not available

56

Gravely 20000459

BOLT (1/4-20 X 52 MM HEX HD.)

Note: (1/4-20 x 52 mm, Hex Hd.)

$

$

Not available

57

Gravely 20000460

BOLT (M8 X 70 MM HEX SOC. HD.)

Note: (M8 x 50 mm, Hex Soc. Hd.)

$

$

Not available

58

Gravely 20000461

BOLT (M8 X 46 MM HEX SOC. HD.)

Note: (M8 x 46 mm, Hex Soc. Hd.)

$

$

Not available

59

Gravely 20000462

SCREW (1/4-20 X 2.1 T30 TORX)

Note: (1/4-20 x 2.1 in., T30, Torx Hd.)

$

$

Not available

60

Gravely 20000463

BUMPER HANDLE

$

$

Not available

61

Gravely 20000464

SCREW (M4 X 12 MM HEX BUTN HD)

Note: (M4 x 12 mm, Hex Button Hd.)

$

$

Not available

62

Gravely 20000465

LOCK NUT (M4)

Note: (M4)

$

$

Not available

63

Gravely 20000466

WAND HOLDER

$

$

Not available

64

Gravely 20000467

TRIGGER HANDLE STORAGE

$

$

Not available

65

Gravely 20000468

FACE PLATE

$

$

Not available

66

Gravely 20000525

HOT SURFACE LABEL

$

$

Not available

67

Gravely 20000469

AXLE

$

$

Not available

68

Gravely 20000470

WHEEL

$

$

Not available

69

Gravely 20000471

LEFT FRAME

$

$

Not available

70

Gravely 20000526

LOGO LABEL

$

$

Not available

71

Gravely 20000527

QUICK START LABEL (ENGINE)

Note: (Engine)

$

$

Not available

72

Gravely 20000472

RIGHT FRAME ASSEMBLY

$

$

Not available

73

Gravely 20000486

BOLT (1/4-20 X 1 IN.)

Note: (1/4-20 x 1 in.)

$

$

Not available

74

Gravely 20000474

ENGINE PLATE

$

$

Not available

75

Gravely 20000912

DATA LABEL (GV80991)

Note: (GV80991)

$

$

Not available

Gravely 20000892

DATA LABEL (GV80991A)

Note: (GV80991A)

$

$

Not available

76

Gravely 20000530

QUICK START LABEL (PUMP)

Note: (Pump)

$

$

Not available

77

Gravely 20000476

WASHER (OD20 X ID8 X 4.5T)

Note: (OD20 x ID8 x 4.5t)

$

$

Not available

78

Gravely 20000477

BRACE

$

$

Not available

79

Gravely 20000478

CONNECTOR PIN (1/4 IN.)

Note: (1/4 in.)

$

$

Not available

80

Gravely 20000479

HANDLE KNOB

$

$

Not available

81

Gravely 20000480

WASHER (5/8 IN.)

Note: (5/8 in.)

$

$

Not available

82

Gravely 20000481

HITCH PIN

$

$

Not available

83

Gravely 20000482

BOLT (M8 X 55 MM HEX HD.)

Note: (M8 x 55 mm, Hex Hd.)

$

$

Not available

84

Gravely 20000483

BOLT (M8 X 45 MM HEX HD.)

Note: (M8 x 45 mm, Hex Hd.)

$

$

Not available

85

Gravely 20000484

FOOT ASSEMBLY

Note: (Inc. Key Nos. 2-3 and 86-87)

$

$

Not available

86

Gravely 20000485

WEAR PAD

$3.99

$

Usually ships in 4-12 days

0

Gravely 20000541

OWNER'S MANUAL GV80991

Note: (GV80991) (Not Shown)

$

$

Not available

Gravely 20000893

OPERATOR'S MANUAL GV80991A

Note: (GV80991A) (Not Shown)

$

$

Not available

Gravely 20000550

QUICK REF GUIDE GV80991

Note: (Not Shown)

$

$

Not available
