986004 - Gravely Pressure Washer (SN: 002026 & Above) Pump And Valves 4GXT30 Parts Diagram

Pressure Washer

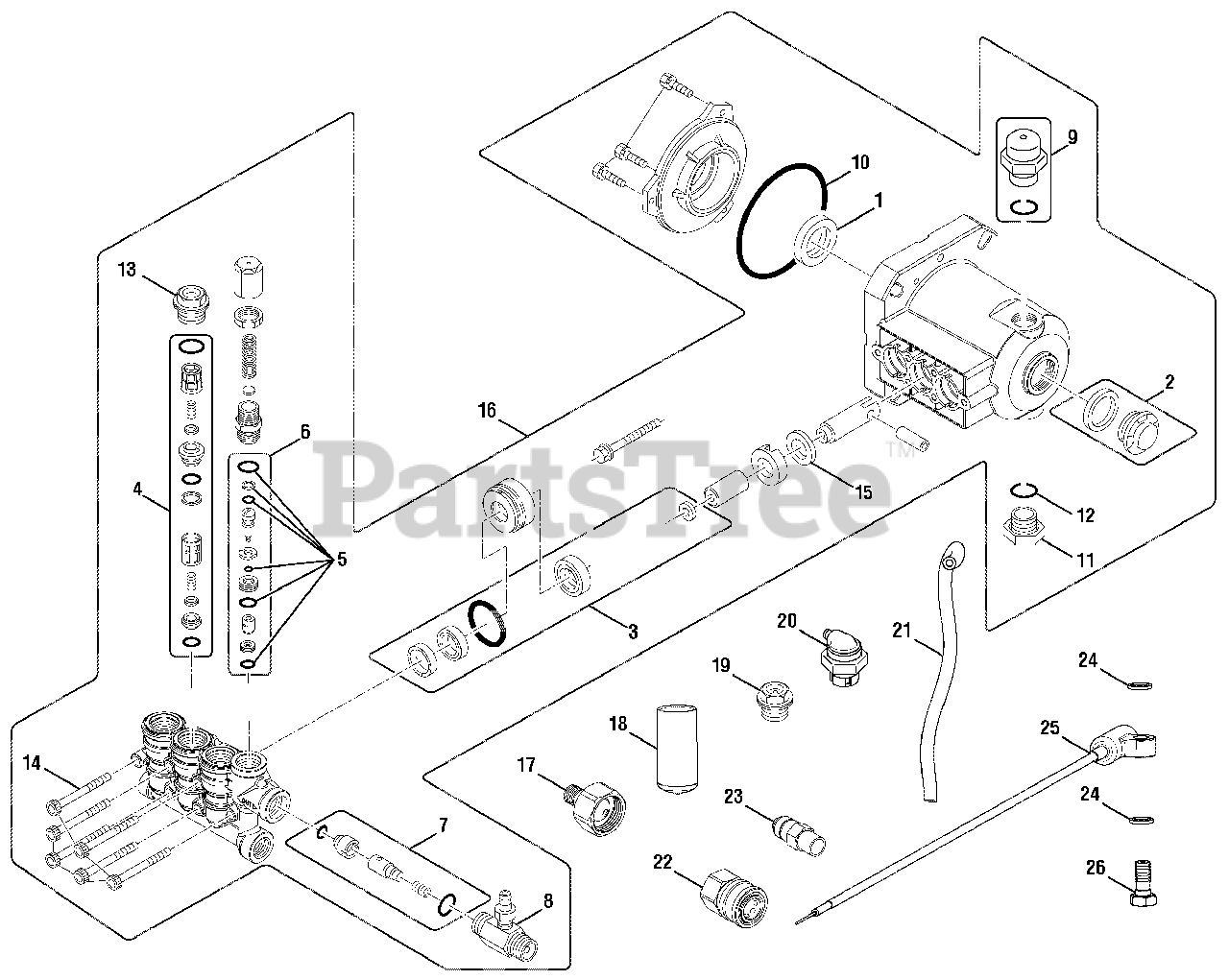

Pump And Valves 4GXT30 Parts Diagram

  • Title

1

Gravely 20000508

OIL SEAL

$

$

Not available

2

Gravely 20000901

GAUGE

$29.99

$

Usually ships in 4-12 days

0

3

Gravely 20000896

SEAL KIT

$

$

Not available

4

Gravely 20000906

VALVE ASSEMBLY

$

$

Not available

5

Gravely 20000897

O-RING KIT

$35.99

$

Usually ships in 4-12 days

0

6

Gravely 20000899

UNLOADER KIT

$148.99

$

Usually ships in 4-12 days

0

7

Gravely 20000898

CHECK VALVE KIT

$

$

Not available

8

Gravely 20000905

FIXED INJECTOR

$132.99

$

Usually ships in 4-12 days

0

9

Gravely 20000497

VENT CAP (CAT)
(Superseded to 20000510)

$

$

Not available

10

Gravely 20000507

O-RING

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 20000907

DRAIN PLUG

$

$

Not available

12

Gravely 20000909

O-RING

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 20000908

PLUG

$71.99

$

Usually ships in 4-12 days

0

14

Gravely 20000911

BOLT

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 20000509

OIL SEAL

$

$

Not available

16

Gravely 20000903

PUMP ASSEMBLY (4GXT30)

Note: (4GXT30, Inc. Key Nos. 1-15)

$

$

Not available

17

Gravely 20000451

GARDEN HOSE COUPLER W/FILTER

$

$

Not available

18

Gravely 20000910

UNLOADER CAP

$

$

Not available

19

Gravely 20000446

THREADED VALVE PLUG

$

$

Not available

20

Gravely 20000510

VENT CAP (OPTIONAL)

$

$

Not available

21

Gravely 20000498

TUBE (OPTIONAL 11 IN.)

Note: (11 in.)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 20000452

QUICK DISCONNECT (FEMALE)

Note: (3/8 in.)

$

$

Not available

23

Gravely 20000450

THERMAL RELEASE VALVE

$23.99

$

Usually ships in 4-12 days

0

24

Gravely 20000453

SEAL

$

$

Not available

25

Gravely 20000904

IDLE DOWN ASSEMBLY

$

$

Not available

26

Gravely 20000455

THROTTLE CONTROL BOLT(SPECIAL)

Note: (M10 x 1.5 in., Special)

$8.49

$

Usually ships in 4-12 days

0
