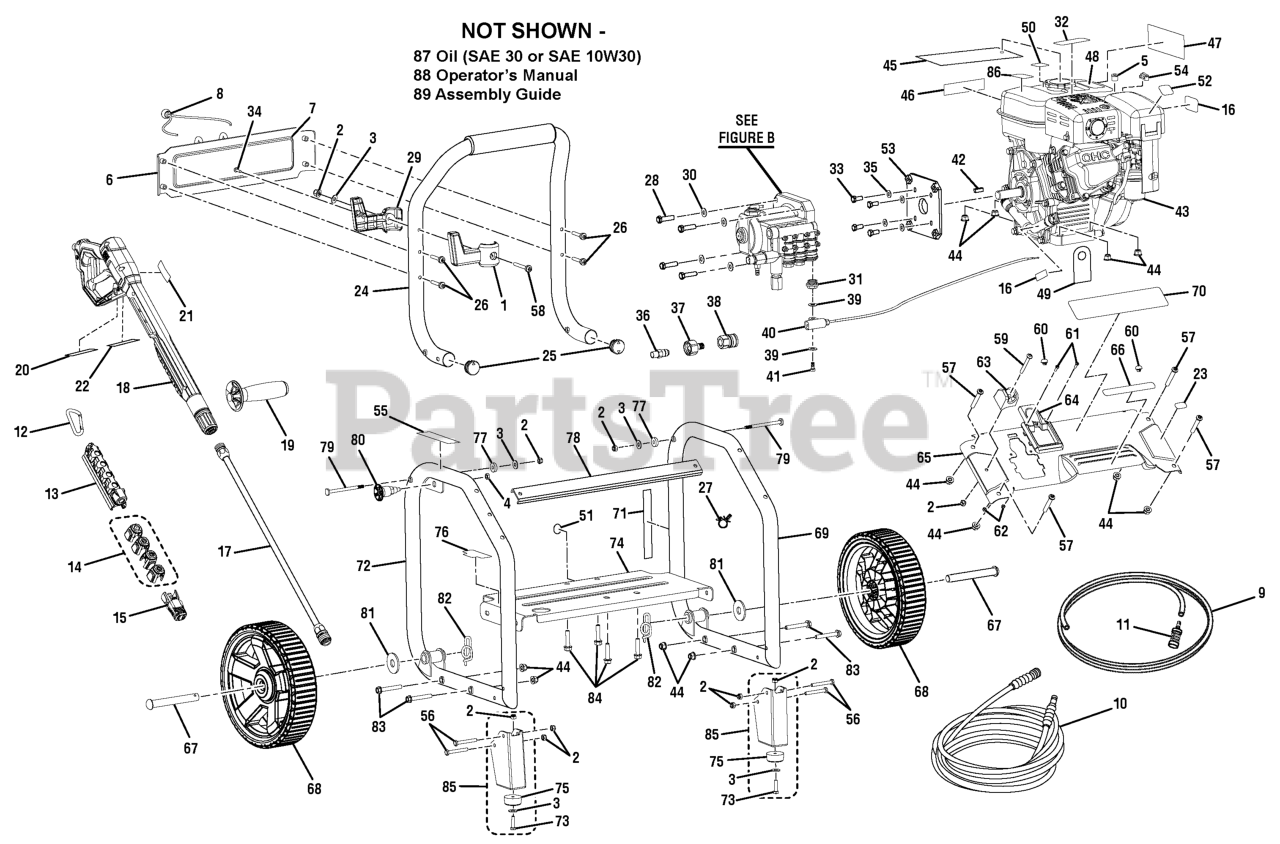

986006 - Ariens Pressure Washer (SN: 000101 & Above) Assembly Parts Diagram

Pressure Washer

Assembly Parts Diagram

  • Title

1

Ariens 20003034

WAND HOLDER (FRONT)

Note: (Front)

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 20000419

LOCK NUT (1/4-20)
(Superseded to 20000836)

Note: (1/4-20)

$

$

Not available

3

Ariens 20000420

WASHER (1/4 IN.)

Note: (1/4 in.)

$

$

Not available

4

Ariens 20000421

LOCK NUT (1/2-20)

Note: (1/2-20)

$

$

Not available

5

Ariens 20000422

SWIVEL BUSHING

$

$

Not available

6

Ariens 20003040

LOGO PLATE

$

$

Not available

7

Ariens 20003047

PERFORMANCE LABEL

$

$

Not available

8

Ariens 20000425

BUNGEE CORD AND BEAD ASSEMBLY

$

$

Not available

9

Ariens 20000426

INJECTION HOSE

$

$

Not available

10

Ariens 20003028

HIGH PRESSURE HOSE (30 FT.)

Note: (30 ft.)

$179.99

$

Usually ships in 4-12 days

0

11

Ariens 20000428

INJECTION HOSE FILTER

$

$

Not available

12

Ariens 20000429

SPRING CLIP

$

$

Not available

13

Ariens 20000430

STORAGE HOLDER

$

$

Not available

14

Ariens 20000431

NOZZLE KIT

$25.99

$

In Stock, only 1 left!

0

15

Ariens 20000432

SOAP BLASTER NOZZLE

$

$

Not available

16

Ariens 20000512

SQUEEZE TRIGGER LABEL

$

$

Not available

17

Ariens 20000433

SPRAY WAND

$

$

Not available

18

Ariens 20000434

TRIGGER HANDLE ASSEMBLY

Note: (Inc. Key Nos. 19-22)

$157.99

$

Usually ships in 4-12 days

0

19

Ariens 20003036

AUXILIARY HANDLE ASSEMBLY

$9.99

$

Usually ships in 4-12 days

0

20

Ariens 20000438

TRIGGER GUARD WARNING LBL F/S

Note: (French/Spanish)

$

$

Not available

21

Ariens 20000436

TRIGGER GUARD WARNING LABEL

Note: (English)

$

$

Not available

22

Ariens 20000514

MAX PRESSURE LABEL

$

$

Not available

23

Ariens 20000515

IDLE CONTROL LABEL

$

$

Not available

24

Ariens 20003031

HANDLE ASSEMBLY

Note: (Inc. Key No. 25)

$37.99

$

Usually ships in 4-12 days

0

25

Ariens 20000440

HANDLE TUBE CAP

$

$

Not available

26

Ariens 20003043

BOLT (1/4 X 42 MM, PAN HD.)

Note: (1/4 x 42 mm, Pan Hd.)

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 20000442

CABLE CLAMP

$

$

Not available

28

Ariens 20000443

BOLT (3/8-16 X 1-3/8 IN HEXHD)

Note: (3/8-16 x 1-3/8 in., Hex Hd.).

$

$

Not available

29

Ariens 20003035

WAND HOLDER (BACK)

Note: (Back)

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 20000445

WASHER (3/8 IN.)

Note: (3/8 in.)

$

$

Not available

31

Ariens 20000446

THREADED VALVE PLUG

$

$

Not available

32

Ariens 20000516

DO NOT MIX LABEL

$

$

Not available

33

Ariens 20000447

BOLT (5/16-24 X 3/4 IN HEX HD)

Note: (5/16-24 x 3/4 in., Hex Hd.)

$

$

Not available

34

Ariens 20003042

SCREW (#8)

Note: (#8)

$3.99

$

Usually ships in 4-12 days

0

35

Ariens 20000449

WASHER (5/16 IN.)

Note: (5/16 in.)

$

$

Not available

36

Ariens 20000450

THERMAL RELEASE VALVE

$22.99

$

Usually ships in 4-12 days

0

37

Ariens 20000451

GARDEN HOSE COUPLER W/FILTER

$

$

Not available

38

Ariens 20000452

QUICK DISCONNECT (FEMALE)

Note: (Female)

$

$

Not available

39

Ariens 20000453

SEAL

$3.49

$

Usually ships in 4-12 days

0

40

Ariens 20000454

THROTTLE CONTROL ASSEMBLY

$

$

Not available

41

Ariens 20000455

THROTTLE CONTROL BOLT(SPECIAL)

Note: (Special)

$7.99

$

Usually ships in 4-12 days

0

42

Ariens 20003044

OUTPUT SHAFT KEY (27 MM)

Note: (27 mm)

$

$

Not available

43

SP170 Hori. Engine (Parts available at your local Subaru dealer)

Note: (Parts available at your local Subaru dealer)

$

$

Not available

44

Ariens 20000457

LOCK NUT (M8 X 1.25 MM)

Note: (M8 x 1.25 mm)

$

$

Not available

45

Ariens 20000517

HANG TAG (ENGINE)

Note: (Engine)

$

$

Not available

46

Ariens 20000518

ADD LUBRICANT LABEL

$

$

Not available

47

Ariens 20000519

COMBUSTION WARNING LABEL

$

$

Not available

48

Ariens 20000520

DANGER LABEL (ENGINE)

Note: (English)

$

$

Not available

49

Ariens 20000521

OIL DIPSTICK HANG TAG

$

$

Not available

50

Ariens 20000522

E-85 LABEL

$

$

Not available

51

Ariens 20000523

CHECK OIL LABEL

$

$

Not available

52

Ariens 20000524

HOT MUFFLER LABEL

$

$

Not available

53

Ariens 20000458

PUMP FLANGE

$

$

Not available

54

Ariens 20003037

CABLE CLAMP

$

$

Not available

55

Ariens 20000473

HANDLE RELEASE LABEL

$

$

Not available

56

Ariens 20000459

BOLT (1/4-20 X 52 MM HEX HD.)

Note: (1/4-20 x 52 mm, Hex Hd.)

$

$

Not available

57

Ariens 20000460

BOLT (M8 X 70 MM HEX SOC. HD.)

Note: (M8 x 50 mm, Hex Soc. Hd.)

$

$

Not available

58

Ariens 20003041

SCREW (1/4-20 X 2.27 IN.)

Note: (1/4-20 x 2.27 in.)

$3.99

$

Usually ships in 4-12 days

0

59

Ariens 20000462

SCREW (1/4-20 X 2.1 T30 TORX)

Note: (1/4-20 x 2.1 in., T30, Torx Hd.)

$

$

Not available

60

Ariens 20000463

BUMPER HANDLE

$

$

Not available

61

Ariens 20000464

SCREW (M4 X 12 MM HEX BUTN HD)

Note: (M4 x 12 mm, Hex Button Hd.)

$

$

Not available

62

Ariens 20000465

LOCK NUT (M4)

Note: (M4)

$

$

Not available

63

Ariens 20000466

WAND HOLDER

$

$

Not available

64

Ariens 20000467

TRIGGER HANDLE STORAGE

$

$

Not available

65

Ariens 20003039

FACE PLATE

$22.99

$

Usually ships in 4-12 days

0

66

Ariens 20000525

HOT SURFACE LABEL

$

$

Not available

67

Ariens 20000469

AXLE

$

$

Not available

68

Ariens 20000470

WHEEL

$

$

Not available

69

Ariens 20003030

LEFT FRAME

$27.99

$

Usually ships in 4-12 days

0

70

Ariens 20003050

LOGO LABEL

$

$

Not available

71

Ariens 20000527

QUICK START LABEL (ENGINE)

Note: (Engine)

$

$

Not available

72

Ariens 20003033

RIGHT FRAME ASSEMBLY

$37.99

$

Usually ships in 4-12 days

0

73

Ariens 20000486

BOLT (1/4-20 X 1 IN.)

Note: (1/4-20 x 1 in.)

$

$

Not available

74

Ariens 20000474

ENGINE PLATE

$

$

Not available

75

Ariens 20000485

WEAR PAD

$3.49

$

Usually ships in 4-12 days

0

76

Ariens 20000530

QUICK START LABEL (PUMP)

Note: (Pump)

$

$

Not available

77

Ariens 20000476

WASHER (OD20 X ID8 X 4.5T)

Note: (OD20 x ID8 x 4.5t)

$

$

Not available

78

Ariens 20003038

BRACE

$9.99

$

Usually ships in 4-12 days

0

79

Ariens 20000478

CONNECTOR PIN (1/4 IN.)

Note: (1/4 in.)

$

$

Not available

80

Ariens 20000479

HANDLE KNOB

$

$

Not available

81

Ariens 20000948

WASHER (1/2 IN.)

Note: (5/8 in.)

$3.99

$

Usually ships in 4-12 days

0

82

Ariens 20003045

HITCH PIN

$

$

Not available

83

Ariens 20000482

BOLT (M8 X 55 MM HEX HD.)

Note: (M8 x 55 mm, Hex Hd.)

$

$

Not available

84

Ariens 20000483

BOLT (M8 X 45 MM HEX HD.)

Note: (M8 x 45 mm, Hex Hd.)

$

$

Not available

85

Ariens 20003029

FOOT ASSEMBLY

Note: (Inc. Key Nos. 2-3, 73 and 86)

$6.49

$

Usually ships in 4-12 days

0

86

Ariens 20003046

DANGER LABEL (FRENCH)

Note: (French)

$

$

Not available

87

Oil (SAE 30 or SAE 10W30) (not shown)

Note: (SAE 30 or SAE 10W30) (not shown)

$

$

Not available

88

Ariens 20000014

OWNER'S MANUAL 98600600

Note: (not shown)

$

$

Not available

89

Ariens 20000011

QUICK REF GUIDE 98600600

Note: (not shown)

$

$

Not available
