986007 - Ariens Pressure Washer (SN: 000101 & Above) Pump And Valves 4GXT30 Parts Diagram

Pressure Washer

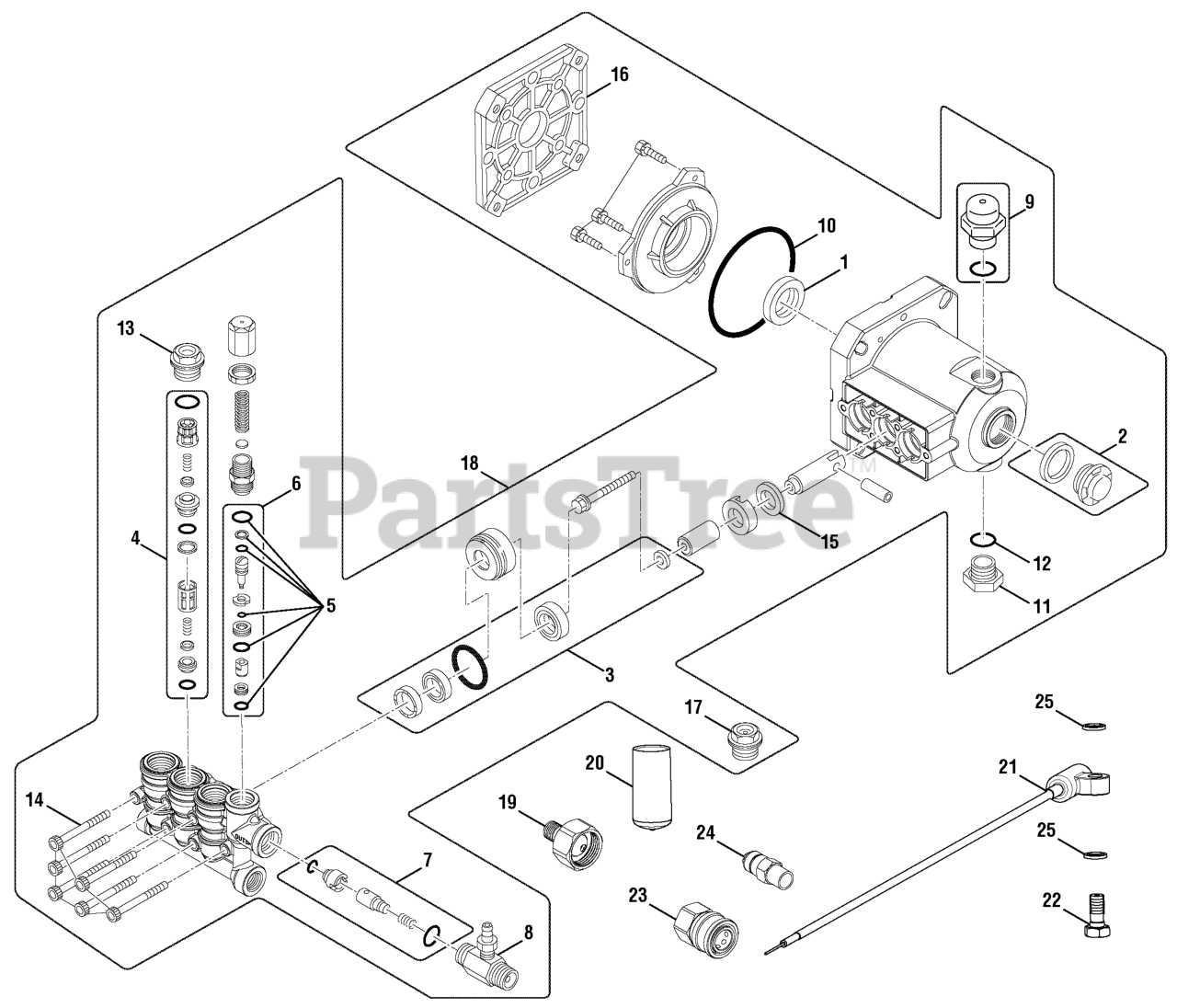

Pump And Valves 4GXT30 Parts Diagram

  • Title

1

Ariens 20000508

OIL SEAL

$

$

Not available

2

Ariens 20000901

GAUGE

$29.99

$

Usually ships in 4-12 days

0

3

Ariens 20000896

SEAL KIT

$

$

Not available

4

Ariens 20000906

VALVE ASSEMBLY

$

$

Not available

5

Ariens 20000897

O-RING KIT

$35.99

$

Usually ships in 4-12 days

0

6

Ariens 20000899

UNLOADER KIT

$148.99

$

Usually ships in 4-12 days

0

7

Ariens 20000898

CHECK VALVE KIT

$

$

Not available

8

Ariens 20000905

FIXED INJECTOR

$132.99

$

Usually ships in 4-12 days

0

9

Ariens 20000497

VENT CAP (CAT)
(Superseded to 20000510)

$

$

Not available

10

Ariens 20000507

O-RING

$11.99

$

Usually ships in 4-12 days

0

11

Ariens 20000907

DRAIN PLUG

$

$

Not available

12

Ariens 20000909

O-RING

$6.99

$

In Stock, only 1 left!

0

13

Ariens 20000908

PLUG

$71.99

$

Usually ships in 4-12 days

0

14

Ariens 20000911

BOLT

$6.49

$

Usually ships in 4-12 days

0

15

Ariens 20000509

OIL SEAL

$

$

Not available

16

Ariens 20000458

PUMP FLANGE

$

$

Not available

17

Ariens 20000446

THREADED VALVE PLUG

$

$

Not available

18

Ariens 20000903

PUMP ASSEMBLY (4GXT30)

Note: (4GXT30, Inc. Key Noe. 1 - 17)

$

$

Not available

19

Ariens 20000451

GARDEN HOSE COUPLER W/FILTER

$

$

Not available

20

Ariens 20000910

UNLOADER CAP

$

$

Not available

21

Ariens 20003032

IDLE DOWN ASSEMBLY

$

$

Not available

22

Ariens 20000455

THROTTLE CONTROL BOLT(SPECIAL)

Note: (M10 x 1.5 in., Special)

$8.49

$

Usually ships in 4-12 days

0

23

Ariens 20000452

QUICK DISCONNECT (FEMALE)

Note: (3/8 in.)

$

$

Not available

24

Ariens 20000450

THERMAL RELEASE VALVE

$23.99

$

Usually ships in 4-12 days

0

25

Ariens 20000453

SEAL

$3.99

$

Usually ships in 4-12 days

0
