986051 - Gravely 5000 Watt Generator (SN: 000101 - 001009) Fuel Tank Parts Diagram

5000 Watt Generator

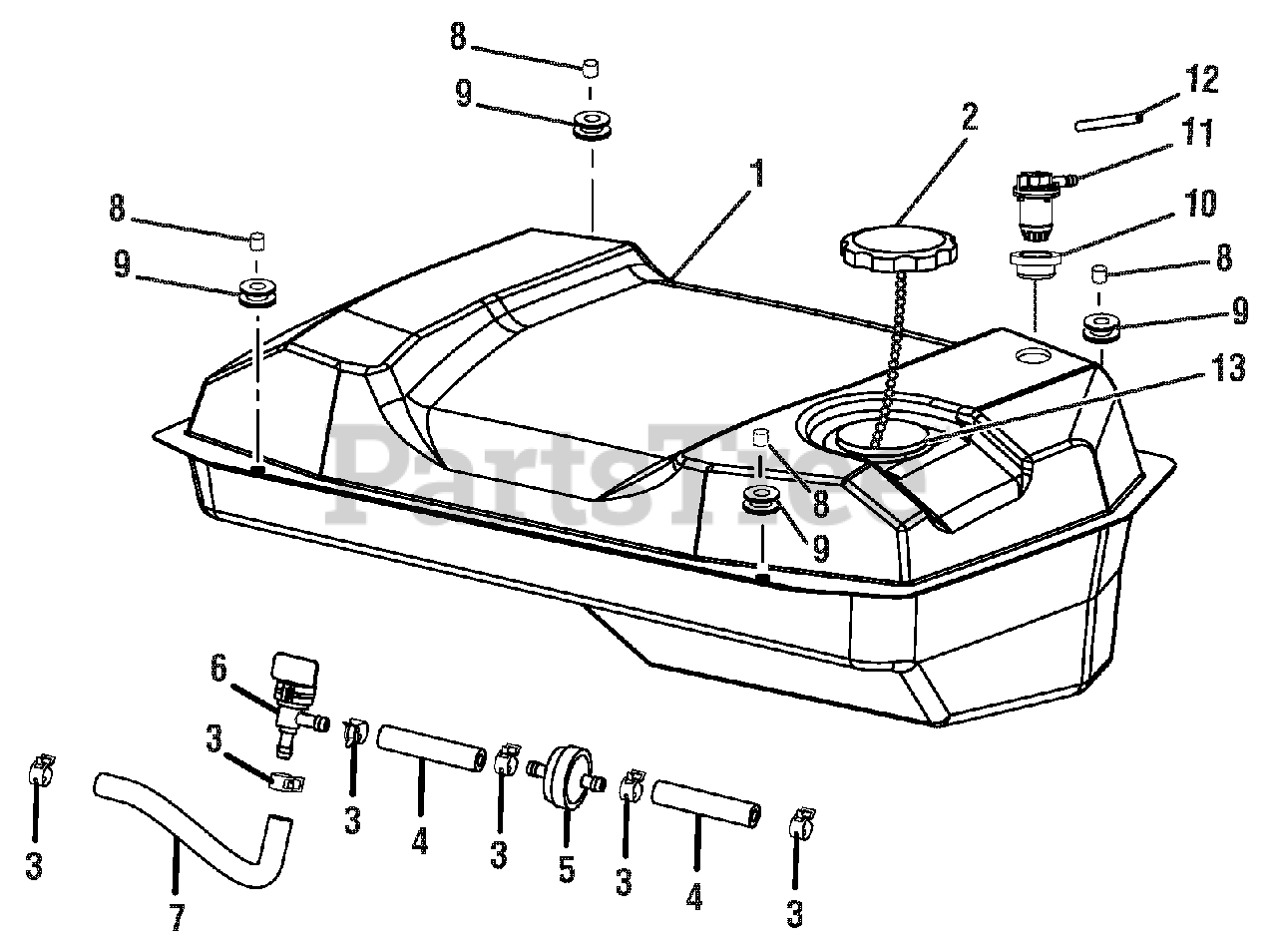

Fuel Tank Parts Diagram

  • Title

1

Gravely 20000572

FUEL TANK

$

$

Not available

2

Gravely 20000573

FUEL TANK CAP

$33.99

$

Usually ships in 4-12 days

0

3

Gravely 20000631

FUEL LINE CLAMP (1/2 IN.)
(Superseded to 20000840)

Note: (1/2 in.)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 20000585

FUEL LINE (105 MM)
(Superseded to 20000796)

Note: (105 mm)

$

$

Not available

5

Gravely 20000567

FUEL FILTER

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 20000564

FUEL SHUT OFF VALVE
(Superseded to 20000773)

$

$

Not available

7

Gravely 20000584

FUEL LINE (208MM)

Note: (208 mm)

$8.49

$

Usually ships in 4-12 days

0

8

Gravely 20000577

SPACER (FUEL TANK ISOLATOR)

Note: (Fuel Tank Isolator)

$

$

Not available

9

Gravely 20000581

ISOLATOR (FUEL TANK)

Note: (Fuel Tank Isolator)

$

$

Not available

10

Gravely 20000608

BUSHING

$5.49

$

Usually ships in 4-12 days

0

11

Gravely 20000576

ROLLOVER VALVE

$

$

Not available

12

Gravely 20000589

ROLLOVER VENT

$

$

Not available

13

Gravely 20000635

RING CLIP
(Superseded to 20000845)

$

$

Not available
