986051 - Gravely 5000 Watt Generator (SN: 000101 - 001009) Voltage Regulator Parts Diagram

5000 Watt Generator

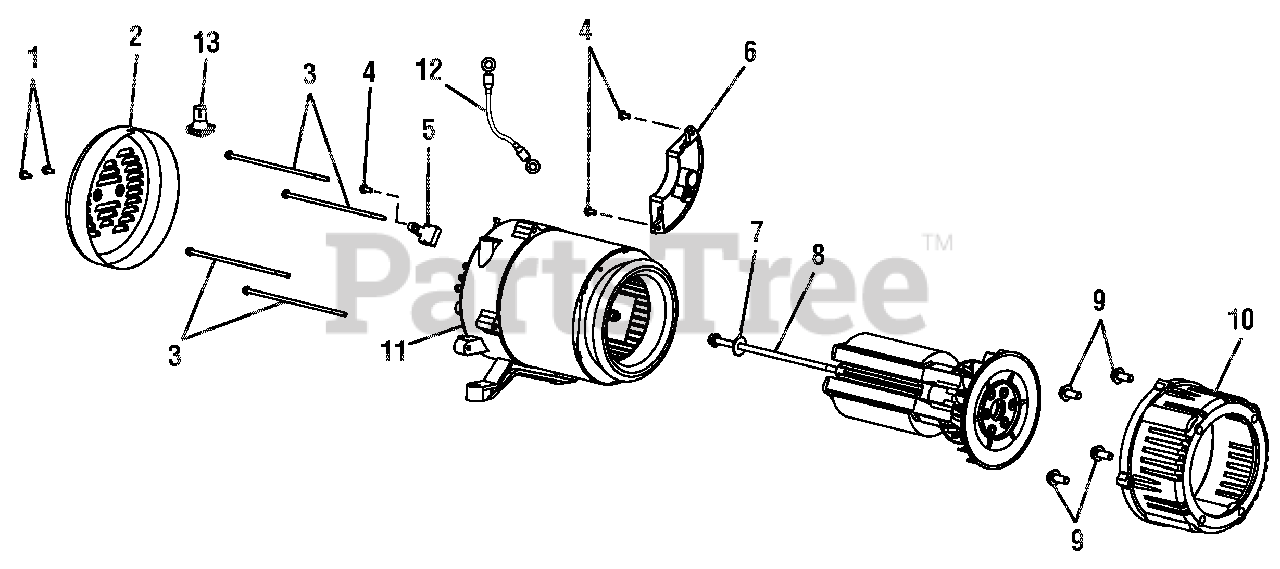

Voltage Regulator Parts Diagram

  • Title

1

Gravely 20000623

BOLT (M5 X 10 MM FLANGEHEX HD)
(Superseded to 20000834)

Note: (M5 x 10 mm, Flange Hex Hd.)

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 20000630

BRUSH COVER
(Superseded to 20000839)

$25.99

$

Usually ships in 4-12 days

0

3

Gravely 20000613

BOLT (1/4-20 X 6 IN. HEX HD.)

Note: (1/4-20 x 6 in., Hex Hd.)

$

$

Not available

4

Gravely 20000624

BOLT (M5 X 16MM FLANGE HEX HD)
(Superseded to 20000835)

Note: (M5 x 16 mm, Flange Hex Hd.)

$

$

Not available

5

Gravely 20000558

BRUSH ASSEMBLY
(Superseded to 20000769)

$

$

Not available

6

Gravely 20000557

AUTOMATIC VOLTAGE REGULATOR
(Superseded to 20000768)

$140.99

$

Usually ships in 4-12 days

0

7

Gravely 20000593

WASHER (5/16 IN.)

Note: (5/16 in.)

$

$

Not available

8

Gravely 20000622

BOLT (5/16-24 X 230 MM HEX HD)

Note: (5/16-24 x 230 mm, Hex Hd.)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 20000611

BOLT (3/8-16 X 1-1/4 IN.)
(Superseded to 20000823)

Note: (3/8-16 x 1-1/4 in.)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 20000609

ENGINE ADAPTER
(Superseded to 20000819)

$61.99

$

Usually ships in 4-12 days

0

11

Gravely 20000629

BEARING SUPPORT

$

$

Not available

12

Gravely 20000559

BONDING WIRE
(Superseded to 20000770)

$

$

Not available

13

Gravely 20000591

RUBBER BOOT
(Superseded to 20000803)

$

$

Not available
