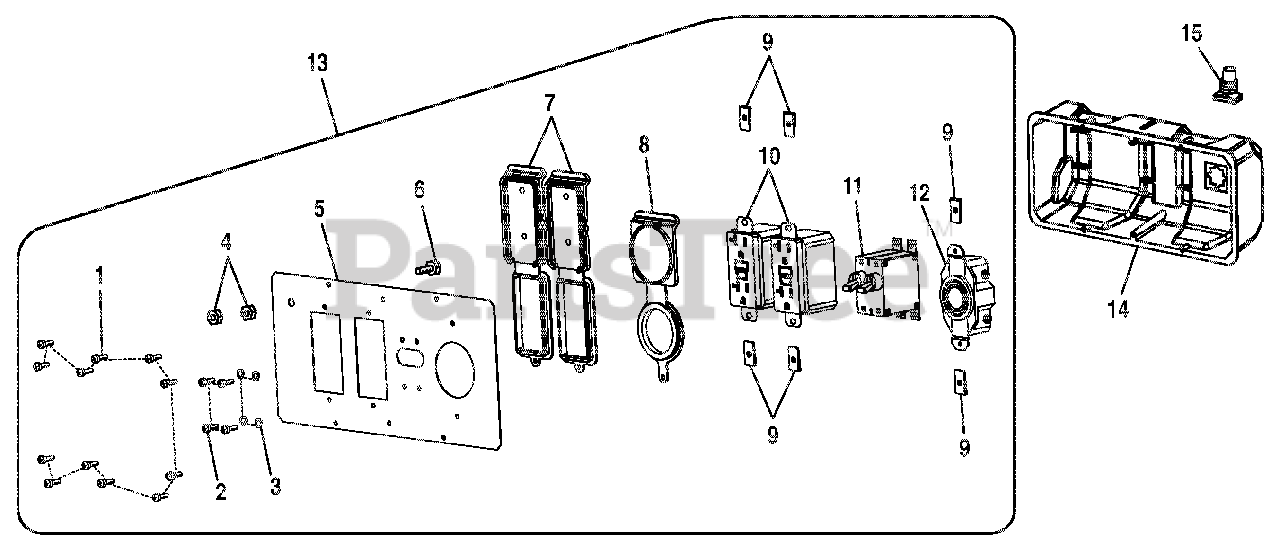

986051 - Gravely 5000 Watt Generator (SN: 001010 & Above) Electrical Parts Diagram

5000 Watt Generator

Electrical Parts Diagram

  • Title

1

Gravely 20000615

Screw (6-20 x 3/8 in.)
(Superseded to 20000824)

Note: (6-20 x 3/8 in.)

$

$

Not available

2

Gravely 20000614

Screw (M3 x 6)

Note: (M3 x 6)

$

$

Not available

3

Gravely 20000604

Lock Washer

$

$

Not available

4

Gravely 20000625

Hex Nut (1/4-20)

Note: (1/4-20)

$

$

Not available

5

Gravely 20000598

Cover Plate

$

$

Not available

6

Gravely 20000621

Screw (1/4-20 x 5/8 in., Hex Hd.)

Note: (1/4-20 x 5/8 in., Hex Hd.)

$

$

Not available

7

Gravely 20000588

Outlet Cover (120 Volt)

Note: (120 Volt)

$

$

Not available

8

Gravely 20000587

Outlet Cover (240 Volt)

Note: (240 Volt)

$

$

Not available

9

Gravely 20000758

U-Clip

$

$

Not available

10

Gravely 20000554

Duplex Receptacle (120 Volt)
(Superseded to 20000761)

Note: (120 Volt)

$

$

Not available

11

Gravely 20000636

Circuit Breaker (20 Amp, 125 Volt)

Note: (20 Amp, 125 Volt)

$172.99

$

In Stock, only 1 left!

0

12

Gravely 20000555

Twist Lock Receptacle (120/240 Volt, 20 Amp)

Note: (120/240 Volt, 20 Amp)

$9.99

$

Usually ships in 4-12 days

0

13

Gravely 20000890

Front Panel (Inc. Key Nos. 1-12)

Note: (Inc. Key Nos. 1-12)

$

$

Not available

14

Gravely 20000578

Rear Control Panel
(Superseded to 20000790)

$

$

Not available

15

Gravely 20000590

Rubber Boot
(Superseded to 20000802)

$3.99

$

Usually ships in 4-12 days

0
