986052 - Gravely 7500 Watt Generator (SN: 010000 & Above) Electrical Parts Diagram

7500 Watt Generator

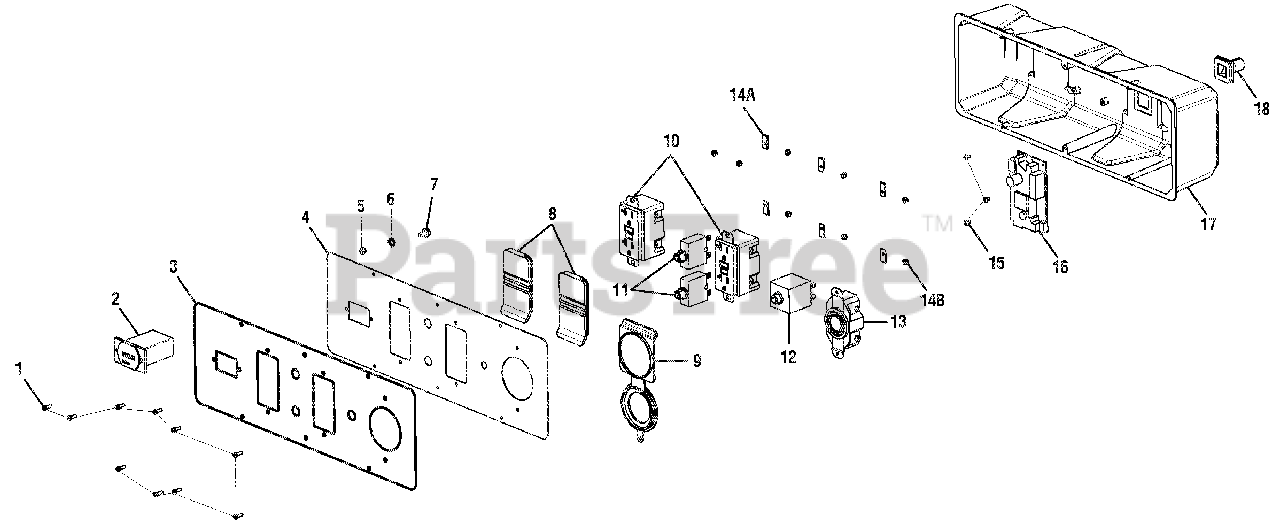

Electrical Parts Diagram

  • Title

1

Gravely 20000824

SCREW (6-20 X 3/8 IN.)

Note: (6-20 x 3/8 in.)

$

$

Not available

2

Gravely 20000784

HOUR METER (120 VOLT)

Note: (120 Volt)

$

$

Not available

3

Gravely 20000958

LABEL (POWER OUTLET)

Note: (Power Outlet)

$

$

Not available

4

Gravely 20000949

FRONT PANEL

$

$

Not available

5

Gravely 20000465

LOCK NUT (M4)

Note: (M4)

$

$

Not available

6

Gravely 20000954

STAR WASHER (ID6.4XOD11X0.6T)

Note: (ID6.4 x OD11 x 0.6t)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 20000834

BOLT (M5 X 10 MM)

Note: (M5 x 10 mm, Hex Hd.)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 20000588

OUTLET COVER (120 VOLT)

Note: (120 Volt)

$

$

Not available

9

Gravely 20000947

OUTLET COVER (240 VOLT)

Note: (240 Volt)

$

$

Not available

10

Gravely 20000761

120 VOLT DUPLEX RECEPTACLE

Note: (GFCI)

$

$

Not available

11

Gravely 20000991

CIRCUIT BREAKER 20AMP, 125VOLT

Note: (20 Amp, 125 Volt)

$12.99

$

Usually ships in 4-12 days

0

12

Gravely 20000992

CIRCUIT BREAKER (30 AMP)

Note: (30 Amp)

$

$

Not available

13

Gravely 20000762

TWST LCK RECEPT 120/240VLT 30A

Note: (120/240 Volt, 30 Amp, L14-30R)

$

$

Not available

14A

Gravely 20000758

U-CLIP

$

$

Not available

14B

Gravely 20000984

LOCK NUT

$

$

Not available

15

Gravely 20000964

SCREW (M3 X 5 MM)

Note: (M3 x 5 mm)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 20000926

CIRCUIT BOARD

$

$

Not available

17

Gravely 20000941

CONTROL BOX (BACK PANEL)

Note: (Back Panel)

$18.99

$

Usually ships in 4-12 days

0

18

Gravely 20000803

RUBBER BOOT

$

$

Not available
