986052 - Gravely 7500 Watt Generator (SN: 010000 & Above) Main Assembly Parts Diagram

7500 Watt Generator

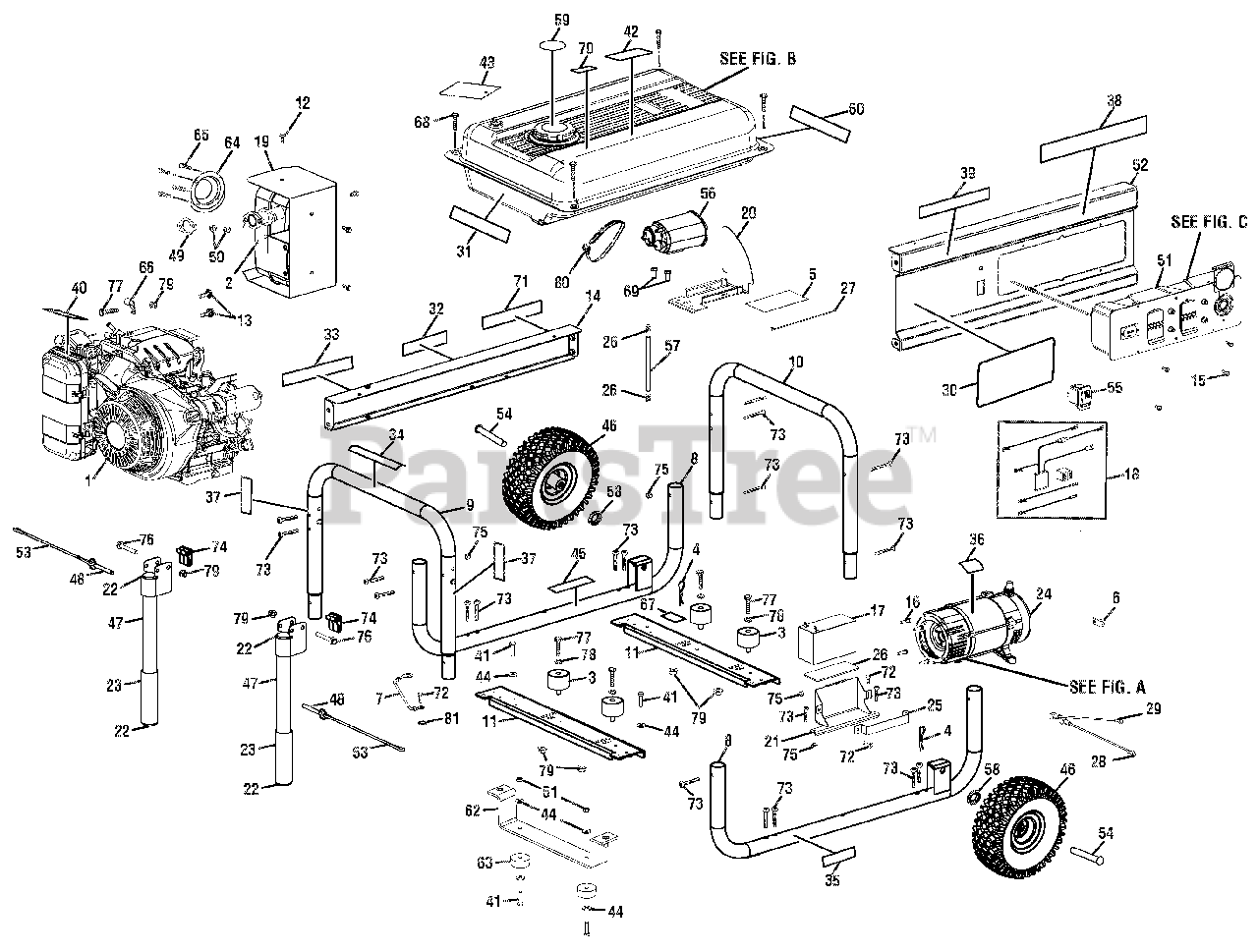

Main Assembly Parts Diagram

  • Title

1

Gravely NOTE A

Engine (Honda)(Parts available at your local Honda dealer)

Note: (Honda)(Parts available at your local Honda dealer)

$

$

Not available

2

Gravely 20000938

MUFFLER

$91.99

$

Usually ships in 4-12 days

0

3

Gravely 20000943

ISOLATOR

$

$

Not available

4

Gravely 20000978

HITCH PIN

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 20000942

RUBBER SHEET

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 20000953

GROUND LUG

$

$

Not available

7

Gravely 20000928

GROUND WIRE ASSEMBLY

$

$

Not available

8

Gravely 20000934

LOWER FRAME ASSEMBLY

$25.99

$

Usually ships in 4-12 days

0

9

Gravely 20000935

TUBE ASSEMBLY (LEFT)

Note: (Left)

$25.99

$

Usually ships in 4-12 days

0

10

Gravely 20000937

TUBE ASSEMBLY (RIGHT)

Note: (Right)

$25.99

$

Usually ships in 4-12 days

0

11

Gravely 20000956

CROSS BRACE

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 20000970

BOLT (M6 X 9 MM)

Note: (M6 x 9 mm)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 20000826

BOLT (5/16-24 X 5/8 IN.)

Note: (5/16-24 x 5/8 in.)

$5.49

$

Usually ships in 4-12 days

0

14

Gravely 20000959

BACK PANEL

$30.99

$

Usually ships in 4-12 days

0

15

Gravely 20000824

SCREW (6-20 X 3/8 IN.)

Note: (6-20 x 3/8 in.)

$

$

Not available

16

Gravely 20000823

BOLT (3/8-16 X 1.25 IN.)

Note: (3/8-16 x1.25 in.)

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 20000990

BATTERY

$183.99

$

Usually ships in 4-12 days

0

18

Gravely 20000931

WIRE HARNESS

$

$

Not available

19

Gravely 20000950

HEAT SHIELD

$

$

Not available

20

Gravely 20000982

BRACKET (CARBON CANISTER)

Note: (Carbon Canister)

$11.99

$

Usually ships in 4-12 days

0

21

Gravely 20003022

BATTERY BOX

$18.99

$

Usually ships in 4-12 days

0

22

Gravely 20000579

END CAP

$

$

Not available

23

Gravely 20000944

HANDLE GRIP

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 20000940

GENERATOR HEAD ASSEMBLY

$702.99

$

Usually ships in 4-12 days

0

25

Gravely 20000936

BATTERY BOX

$4.99

$

Usually ships in 4-12 days

0

26

Gravely 20000840

FUEL LINE CLAMP (1/2 IN.)

Note: (1/2 in.)

$

$

Not available

27

Gravely 20000993

TIE WRAP

$

$

Not available

28

Gravely 20000929

BATTERY CABLE (RED)

Note: (Red)

$

$

Not available

29

Gravely 20000930

BATTERY CABLE (BLACK)

Note: (Black)

$

$

Not available

30

Gravely 20003002

LOGO LABEL

$

$

Not available

31

Gravely 20000865

STARTING INSTRUCTIONS LABEL

$

$

Not available

32

Gravely 20000999

HOT SURFACE LABEL

$4.99

$

Usually ships in 4-12 days

0

33

Gravely 20000996

DANGER LABEL

$7.49

$

Usually ships in 4-12 days

0

34

Gravely 20000871

FIRE DANGER LABEL

$

$

Not available

35

Gravely 20000864

ENGINE LUBRICANT LABEL

$

$

Not available

36

Gravely 20000998

DATA LABEL

$

$

Not available

37

Gravely 20000995

LOCKING PIN LABEL

$

$

Not available

38

Gravely 20000855

HONDA LABEL

$

$

Not available

39

Gravely 20000856

ELECTRIC START LABEL

$

$

Not available

40

Gravely 20000858

CHOKE LABEL

$

$

Not available

41

Gravely 20000962

BOLT (M6 X 1 IN., HEX HD.)

Note: (M6 x 1 in., Hex Hd.)

$4.99

$

Usually ships in 4-12 days

0

42

Gravely 20000854

CPSC LABEL

$

$

Not available

43

Gravely 20003004

DANGER HANG TAG

$

$

Not available

44

Gravely 20000975

WASHER (ID6.4 X OD17 X 1.6T)

Note: (ID6.4 x OD17 x 1.6t)

$4.99

$

Usually ships in 4-12 days

0

45

Gravely 20000519

COMBUSTION WARNING LABEL

$

$

Not available

46

Gravely 20000772

WHEEL ASSEMBLY

$113.99

$

Usually ships in 4-12 days

0

47

Gravely 20000939

HANDLE ASSEMBLY

Note: (Inc. Key No. 22-23)

$12.99

$

Usually ships in 4-12 days

0

48

Gravely 20000783

RELEASE PIN (5/16 X 2 IN.)

Note: (5/16 x 2 in.)

$

$

Not available

49

Gravely 20000985

EXHAUST GASKET

$4.99

$

Usually ships in 4-12 days

0

50

Gravely 20000979

NUT( M8)

Note: (M8)

$4.99

$

Usually ships in 4-12 days

0

51

Gravely 20000927

PANEL ASSEMBLY

$

$

Not available

52

Gravely 20000957

FRONT PANEL

$54.99

$

Usually ships in 4-12 days

0

53

Gravely 20000785

LANYARD (3/16 IN.)

$

$

Not available

54

Gravely 20000988

AXLE

$7.49

$

Usually ships in 4-12 days

0

55

Gravely 20000760

ENGINE SWITCH

$

$

Not available

56

Gravely 20000887

CANISTER

$82.99

$

Usually ships in 4-12 days

0

57

Gravely 20000946

PURGE HOSE

$

$

Not available

58

Gravely 20000948

WASHER (1/2 IN.)

Note: (1/2 in.)

$

$

Not available

59

Gravely 20000870

FUEL STABILIZER LABEL

$

$

Not available

60

Gravely 20000994

GROUND WARNING LABEL

$4.99

$

Usually ships in 4-12 days

0

61

Gravely 20000981

NUT (M6)

Note: (M6)

$4.99

$

Usually ships in 4-12 days

0

62

Gravely 20000955

FOOT BRACKET

$11.99

$

Usually ships in 4-12 days

0

63

Gravely 20000485

WEAR PAD

$4.99

$

Usually ships in 4-12 days

0

64

Gravely 20000804

SPARK ARRESTOR

$8.49

$

Usually ships in 4-12 days

0

65

Gravely 20000828

SCREW (8-32 X 3/8 IN.)

Note: (8-32 x 3/8 in., Pan Hd.)

$

$

Not available

66

Gravely 20000792

J-CLAMP

Note: (1/2 in.)

$

$

Not available

67

Gravely 20000852

GROUND LABEL

$

$

Not available

68

Gravely 20000963

SCREW (1/4-14 X 1.25 IN.)

Note: (1/4-14 x 1-1/4 in.)

$4.99

$

Usually ships in 4-12 days

0

69

Gravely 20000971

SCREW (#10-16 X 3/4 IN.)

Note: (#10-16 x 3/4 in.)

$

$

Not available

70

Gravely 20000869

E85 LABEL

$

$

Not available

71

Gravely 20000872

FIRE DISTANCE LABEL

$

$

Not available

72

Gravely 20000972

SCREW (M6 X 16 MM, HEX HD.)

Note: (M6 x 16 mm, Hex Hd.)

$

$

Not available

73

Gravely 20000961

SCREW (M6 X 50 MM, T30, PANHD)

Note: (M6 x 50 mm, T30, Pan Hd.)

$4.99

$

Usually ships in 4-12 days

0

74

Gravely 20000791

HANDLE BRACKET SPACER

$

$

Not available

75

Gravely 20000981

NUT (M6)

Note: (M6)

$4.99

$

Usually ships in 4-12 days

0

76

Gravely 20000968

BOLT (M8 X 55 MM, HEX HD.)

Note: (M8 x 55 mm, Hex Hd.)

$

$

Not available

77

Gravely 20000969

BOLT (M8 X 35 MM, HEX HD.)

Note: (M8 x 35 mm, Hex Hd.)

$4.99

$

Usually ships in 4-12 days

0

78

Gravely 20000976

WASHER (M8)

Note: (M8)

$4.99

$

Usually ships in 4-12 days

0

79

Gravely 20000986

NUT (M8)

Note: (M8)

$4.99

$

Usually ships in 4-12 days

0

80

Gravely 20000850

CABLE TIE

$

$

Not available

81

Gravely 20000977

STAR WASHER (M8)

Note: (M8)

$4.99

$

Usually ships in 4-12 days

0

Gravely 20000878

OWNER'S MANUAL GV907511A

$

$

Not available

Gravely 20000547

QUICK REF GUIDE GV907511

$

$

Not available
