986054 - Ariens 5000 Watt Generator (SN: 000101 - 001009) Fuel Tank Parts Diagram

5000 Watt Generator

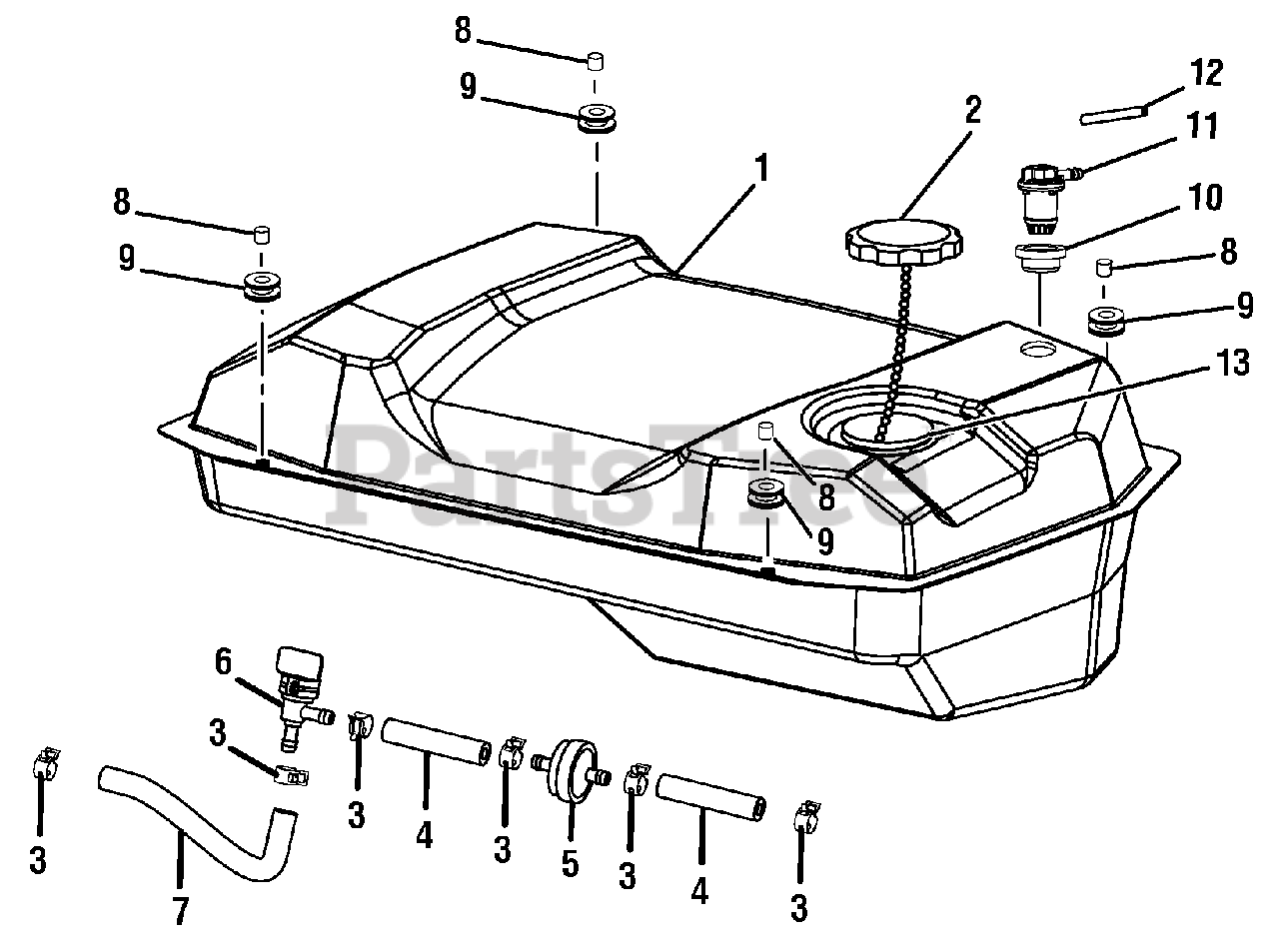

Fuel Tank Parts Diagram

  • Title

1

Ariens 20000572

FUEL TANK

$

$

Not available

2

Ariens 20000573

FUEL TANK CAP

$33.99

$

Usually ships in 4-12 days

0

3

Ariens 20000631

FUEL LINE CLAMP (1/2 IN.)
(Superseded to 20000840)

Note: (1/2 in.)

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 20000585

FUEL LINE (105 MM)
(Superseded to 20000796)

Note: (105 mm)

$

$

Not available

5

Ariens 20000567

FUEL FILTER

$6.49

$

Usually ships in 4-12 days

0

6

Ariens 20000564

FUEL SHUT OFF VALVE
(Superseded to 20000773)

$

$

Not available

7

Ariens 20000584

FUEL LINE (208MM)

Note: (208 mm)

$8.49

$

Usually ships in 4-12 days

0

8

Ariens 20000577

SPACER (FUEL TANK ISOLATOR)

Note: (Fuel Tank Isolator)

$

$

Not available

9

Ariens 20000581

ISOLATOR (FUEL TANK)

Note: (Fuel Tank Isolator)

$

$

Not available

10

Ariens 20000608

BUSHING

$5.49

$

Usually ships in 4-12 days

0

11

Ariens 20000576

ROLLOVER VALVE

$

$

Not available

12

Ariens 20000589

ROLLOVER VENT

$

$

Not available

13

Ariens 20000635

RING CLIP
(Superseded to 20000845)

$

$

Not available
