986055 - Gravely 7500 Watt Generator (SN: 000101 & Above) Assembly Parts Diagram

7500 Watt Generator

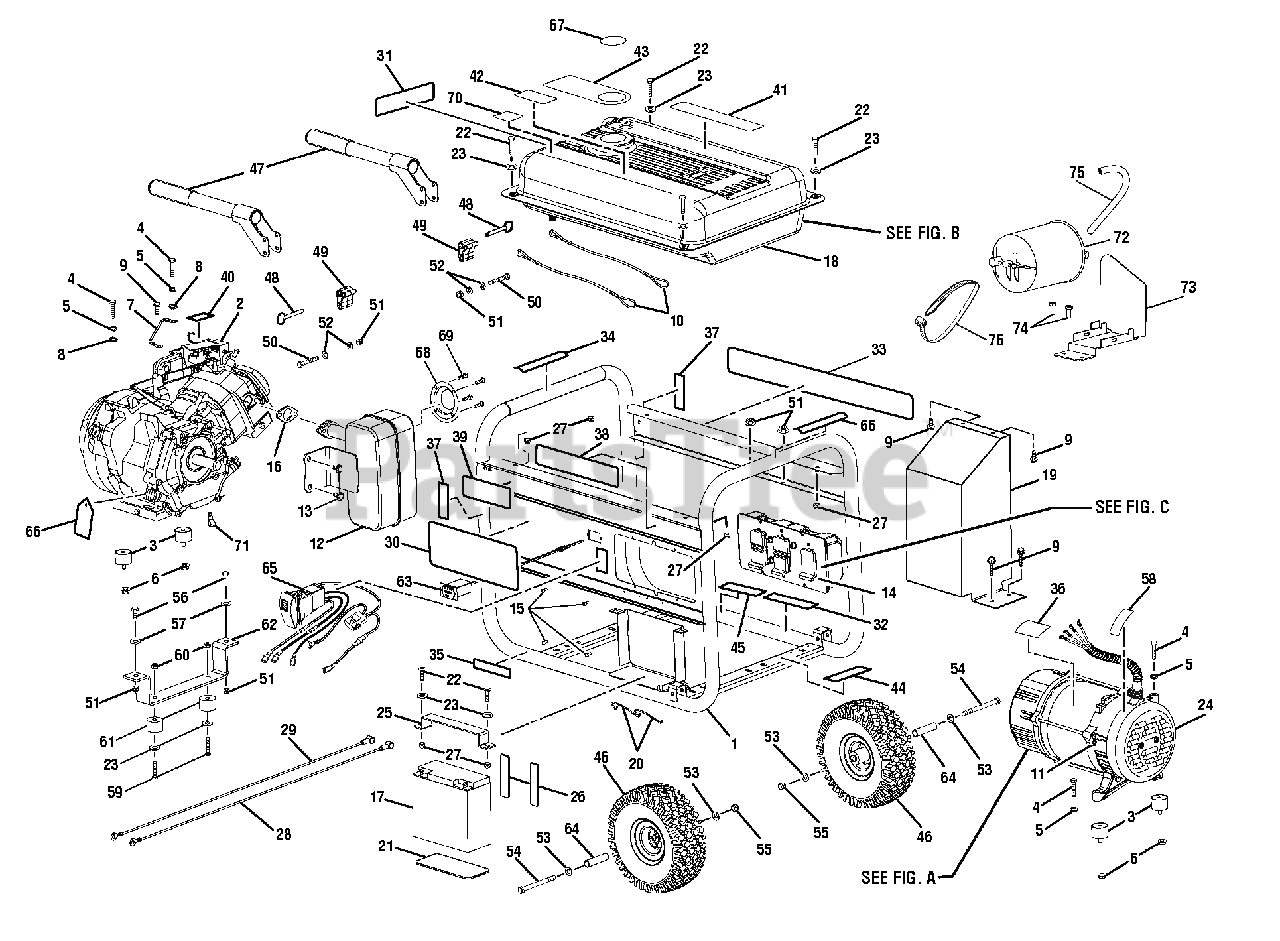

Assembly Parts Diagram

  • Title

1

Gravely 20000777

CARRIER ASSEMBLY

$

$

Not available

2

Gravely NOTE A

Engine (Honda GX390)

Note: (Honda GX390)

$

$

Not available

3

Gravely 20000794

ISOLATOR
(Superseded to 20000943)

$

$

Not available

4

Gravely 20000822

BOLT (5/16-18 X 1-1/2 IN HXHD)

Note: (5/16-18 X 1-1/2 in., Hex Hd.)

$

$

Not available

5

Gravely 20000813

LOCK WASHER (5/16 IN.)

Note: (5/16 in.)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 20000837

FLANGE NUT (5/16-18 HEX HD.)

Note: (5/16-18, Hex Hd.)

$

$

Not available

7

Gravely 20000764

GROUND WIRE ASSEMBLY

$

$

Not available

8

Gravely 20000816

STAR WASHER (5/16 IN.)

Note: (5/16 in.)

$

$

Not available

9

Gravely 20000829

BOLT (5/16-18 X 3/4 IN HEX HD)

Note: (5/16-18 x 3/4 in., Hex Hd.)

$

$

Not available

10

Gravely 20000785

LANYARD (3/16 IN.)

Note: (3/16 in.)

$

$

Not available

11

Gravely 20000815

GROUND LUG

$

$

Not available

12

Gravely 20000776

MUFFLER

$

$

Not available

13

Gravely 20000826

BOLT (5/16-24 X 5/8 IN.)

Note: (5/16-24 x 5/8 in.)

$5.49

$

Usually ships in 4-12 days

0

14

Gravely 20000763

CONTROL PANEL ASSEMBLY

$

$

Not available

15

Gravely 20000824

SCREW (6-20 X 3/8 IN.)

Note: (6-20 x 3/8 in.)

$

$

Not available

16

Gravely 20000809

MUFFLER GASKET

Note: (supplied by Honda)

$

$

Not available

17

Gravely 20000847

BATTERY

$341.99

$

Usually ships in 4-12 days

0

18

Gravely 20000782

FUEL TANK ASSEMBLY

$251.99

$

Usually ships in 4-12 days

0

19

Gravely 20000807

HEAT SHIELD

$

$

Not available

20

Gravely 20000841

CORD RETAINER

$

$

Not available

21

Gravely 20000801

BATTERY BOX GASKET

$

$

Not available

22

Gravely 20000831

BOLT (1/4-20 X 1 IN. HEX HD.)

Note: (1/4-20 X 1 in., Hex Hd.)

$

$

Not available

23

Gravely 20000806

WASHER (1/4 IN.)

Note: (1/4 in.)

$

$

Not available

24

Gravely 20000781

GENERATOR HEAD W/AVR

$

$

Not available

25

Gravely 20000774

BATTERY HOLD DOWN BRACKET ASSM

$

$

Not available

26

Gravely 20000799

GASKET (BATTERY HOLD DOWN

Note: (Battery Hold Down Bracket)

$

$

Not available

27

Gravely 20000836

LOCK NUT (1/4-20)

Note: (1/4-20)

$

$

Not available

28

Gravely 20000765

BATTERY CABLE (RED)

Note: (Red)

$

$

Not available

29

Gravely 20000766

BATTERY CABLE (BLACK)

Note: (Black)

$

$

Not available

30

Gravely 20000867

LOGO LABEL

$

$

Not available

31

Gravely 20000865

STARTING INSTRUCTIONS LABEL

$

$

Not available

32

Gravely 20000863

HOT SURFACE LABEL

$

$

Not available

33

Gravely 20000859

DANGER LABEL
(Superseded to 20000880)

$15.99

$

Usually ships in 4-12 days

0

34

Gravely 20000871

FIRE DANGER LABEL

$

$

Not available

35

Gravely 20000864

ENGINE LUBRICANT LABEL

$

$

Not available

36

Gravely 20000862

DATA PLATE LABEL

$

$

Not available

37

Gravely 20000853

LOCKING PIN LABEL

$

$

Not available

38

Gravely 20000855

HONDA LABEL

$

$

Not available

39

Gravely 20000856

ELECTRIC START LABEL

$

$

Not available

40

Gravely 20000858

CHOKE LABEL

$

$

Not available

41

Gravely 20000857

QUICK START LABEL

$

$

Not available

42

Gravely 20000854

CPSC LABEL

$

$

Not available

43

Gravely 20000873

HANGTAG (ENGINE WARNING)

Note: (Engine Warning)

$

$

Not available

44

Gravely 20000851

GROUND WARNING LABEL

$

$

Not available

45

Gravely 20000860

COMBUSTION WARNING LABEL

$

$

Not available

46

Gravely 20000772

WHEEL ASSEMBLY

$113.99

$

Usually ships in 4-12 days

0

47

Gravely 20000778

HANDLE ASSEMBLY

$

$

Not available

48

Gravely 20000783

RELEASE PIN (5/16 X 2 IN.)

Note: (5/16 x 2 in.)

$

$

Not available

49

Gravely 20000791

HANDLE BRACKET SPACER

$

$

Not available

50

Gravely 20000821

BOLT (5/16-18 X 2-1/4 IN HXHD)

Note: (5/16-18 x 2-1/4 in., Hex Hd.)

$

$

Not available

51

Gravely 20000838

LOCK NUT (5/16)

Note: (5/16 in.)

$

$

Not available

52

Gravely 20000811

WASHER (5/16 IN.)

Note: (5/16 in.)

$

$

Not available

53

Gravely 20000805

WASHER (3/16 IN.)

Note: (3/16 in.)

$

$

Not available

54

Gravely 20000833

BOLT (3/8-16 X 4-1/4 IN HX HD)

Note: (3/8-16 x 4-1/4 in., Hex Hd.)

$4.49

$

Usually ships in 4-12 days

0

55

Gravely 20000842

NUT (3/8-16)

Note: (3/8-16)

$3.99

$

Usually ships in 4-12 days

0

56

Gravely 20000825

BOLT (5/16-18 X 1 IN. HEX HD.)

Note: (5/16-18 X 1 in., Hex Hd.)

$

$

Not available

57

Gravely 20000812

FLAT WASHER (5/16 IN.)

Note: (5/16 in.)

$

$

Not available

58

Gravely 20000852

GROUND LABEL

$

$

Not available

59

Gravely 20000830

BOLT (1/4-20 X 1-1/2 IN HX HD)

Note: (1/4-20 X 1-1/2 in., Hex Hd.)

$

$

Not available

60

Gravely 20000836

LOCK NUT (1/4-20)

Note: (1/4-20)

$

$

Not available

61

Gravely 20000793

RUBBER FOOT

$

$

Not available

62

Gravely 20000817

FRONT FOOT

$

$

Not available

63

Gravely 20000784

HOUR METER (120 VOLT)

Note: (120 Volt)

$

$

Not available

64

Gravely 20000808

WHEEL SPACER

$3.99

$

Usually ships in 4-12 days

0

65

Gravely 20000760

ENGINE SWITCH

$

$

Not available

66

Gravely 20000872

FIRE DISTANCE LABEL

$

$

Not available

67

Gravely 20000870

FUEL STABILIZER LABEL

$

$

Not available

68

Gravely 20000804

SPARK ARRESTOR

$7.99

$

Usually ships in 4-12 days

0

69

Gravely 20000828

SCREW (8-32 X 3/8 IN.)

Note: (8-32 x 3/8 in.)

$

$

Not available

70

Gravely 20000869

E85 LABEL

$

$

Not available

71

Gravely 20000792

J-CLAMP

$

$

Not available

72

Gravely 20000786

CANISTER

$

$

Not available

73

Gravely 20000843

BRACKET

$

$

Not available

74

Gravely 20000820

BOLT (5/16-18 X 3/4 IN.)

Note: (5/16-18 x 3/4 in.)

$

$

Not available

75

Gravely 20000795

PURGE HOSE

$

$

Not available

76

Gravely 20000850

CABLE TIE

$

$

Not available

- -

Gravely 20000409

OWNER'S MANUAL GV907511

$

$

Not available
