986055 - Gravely 7500 Watt Generator (SN: 000101 & Above) Fuel Parts Diagram

7500 Watt Generator

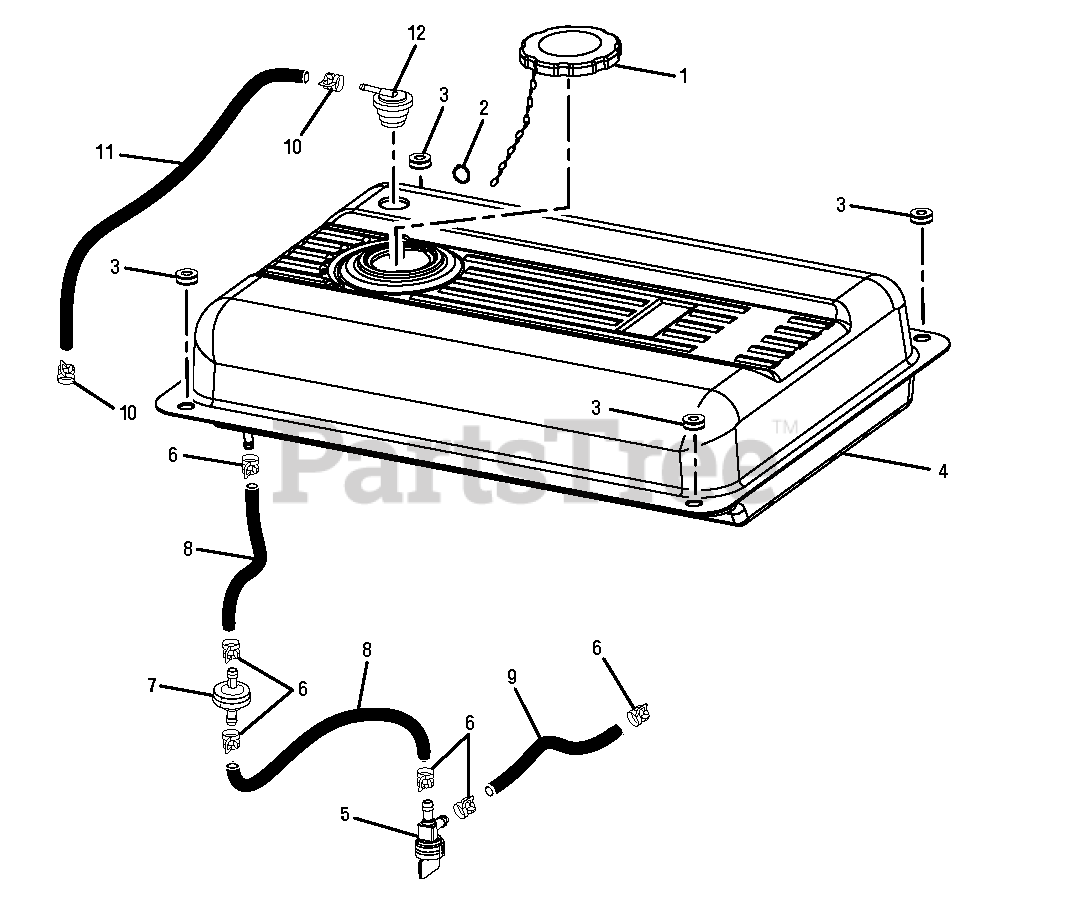

Fuel Parts Diagram

  • Title

1

Gravely 20000818

FuelTank Cap

$

$

Not available

2

Gravely 20000845

Ring Clip

$

$

Not available

3

Gravely 20000780

Bushing w/lnsert

$7.49

$

Usually ships in 4-12 days

0

4

Gravely 20000782

Fuel Tank

$251.99

$

In Stock, only 1 left!

0

5

Gravely 20000773

Fuel Valve

$

$

Not available

6

Gravely 20000840

Fuel Une Clamp (1/2 in)

Note: (1/2 in)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 20000775

Fuel Line Filter

$11.99

$

In Stock, only 1 left!

0

8

Gravely 20000796

Fuel Une (1/4 in.)

Note: (1/4 in.)

$

$

Not available

9

Gravely 20000797

Fuel Hose (1/4 in)

Note: (1/4 in)

$11.99

$

In Stock, only 1 left!

0

10

Gravely 20000846

Fuel Line Clamp (7/16 in)

Note: (7/16 in)

$

$

Not available

11

Gravely 20000798

Vapor Hose

$17.99

$

In Stock, only 2 left!

0

12

Gravely 20000789

Vapor Vent

$

$

Not available

13

Gravely 20000916

Rollover Hose

Note: NOT SHOWN

$

$

Not available
