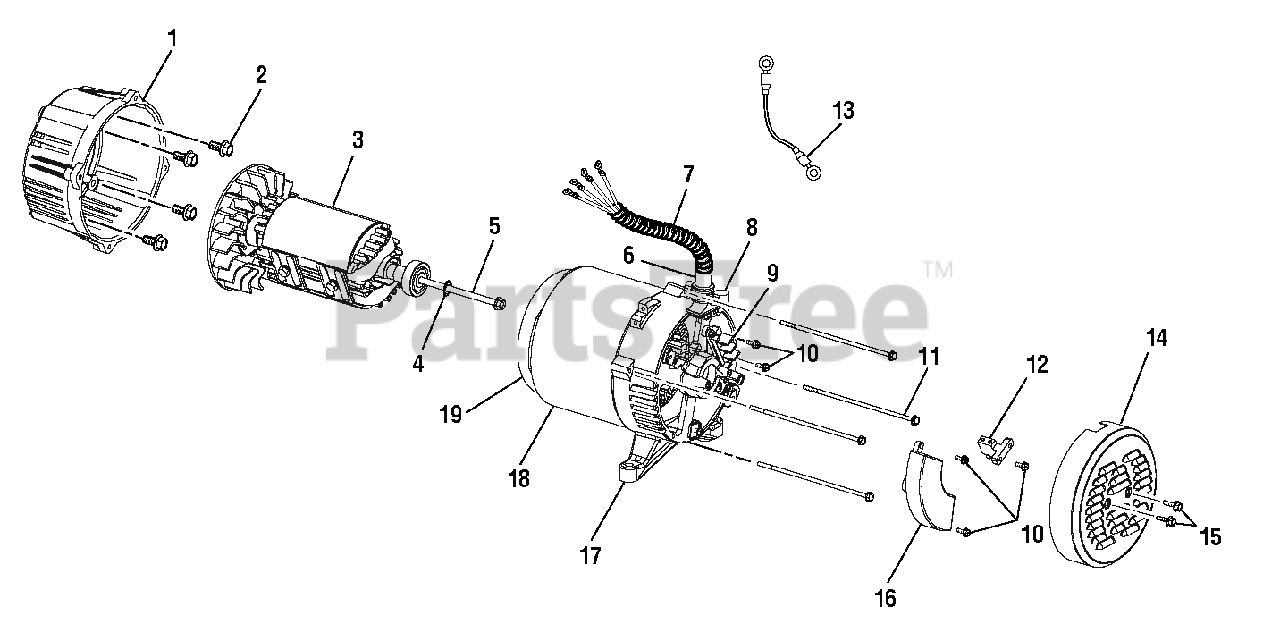

986055 - Gravely 7500 Watt Generator (SN: 000101 & Above) Housing Parts Diagram

7500 Watt Generator

Housing Parts Diagram

  • Title

1

Gravely 20000819

ADAPTOR HOUSING

$61.99

$

Usually ships in 4-12 days

0

2

Gravely 20000823

BOLT (3/8-16 X 1.25 IN.)

Note: (3/8-16 X 1.25 in.)

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 20000788

ROTOR

$

$

Not available

4

Gravely 20000813

LOCK WASHER (5/16 IN.)

Note: (5/16)

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 20000832

ROTOR BOLT

$7.99

$

Usually ships in 4-12 days

0

6

Gravely 20000802

RUBBER BOOT

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 20000767

WIRING HARNESS

$

$

Not available

8

Gravely 20000781

GENERATOR HEAD W/AVR

$

$

Not available

9

Gravely 20000771

TERMINAL BLOCK

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 20000835

BOLT (M5 X 16 MM)

Note: (M5 x 16 mm)

$

$

Not available

11

Gravely 20000827

BOLT (STATOR)

$

$

Not available

12

Gravely 20000769

BRUSH ASSEMBLY

$

$

Not available

13

Gravely 20000770

BONDING WIRE

$

$

Not available

14

Gravely 20000839

BRUSH COVER

$25.99

$

Usually ships in 4-12 days

0

15

Gravely 20000834

BOLT (M5 X 10 MM)

Note: (M5 x 10 mm)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 20000768

AUTOMATIC VOLTAGE REGULATOR

$140.99

$

Usually ships in 4-12 days

0

17

Gravely 20000844

BEARING HOUSING

$

$

Not available

18

Gravely 20000810

GENERATOR HEAD COVER

$

$

Not available

19

Gravely 20000787

STATOR

$

$

Not available
