986055 - Gravely 7500 Watt Generator (SN: 000101 & Above) Housing Parts Diagram

7500 Watt Generator

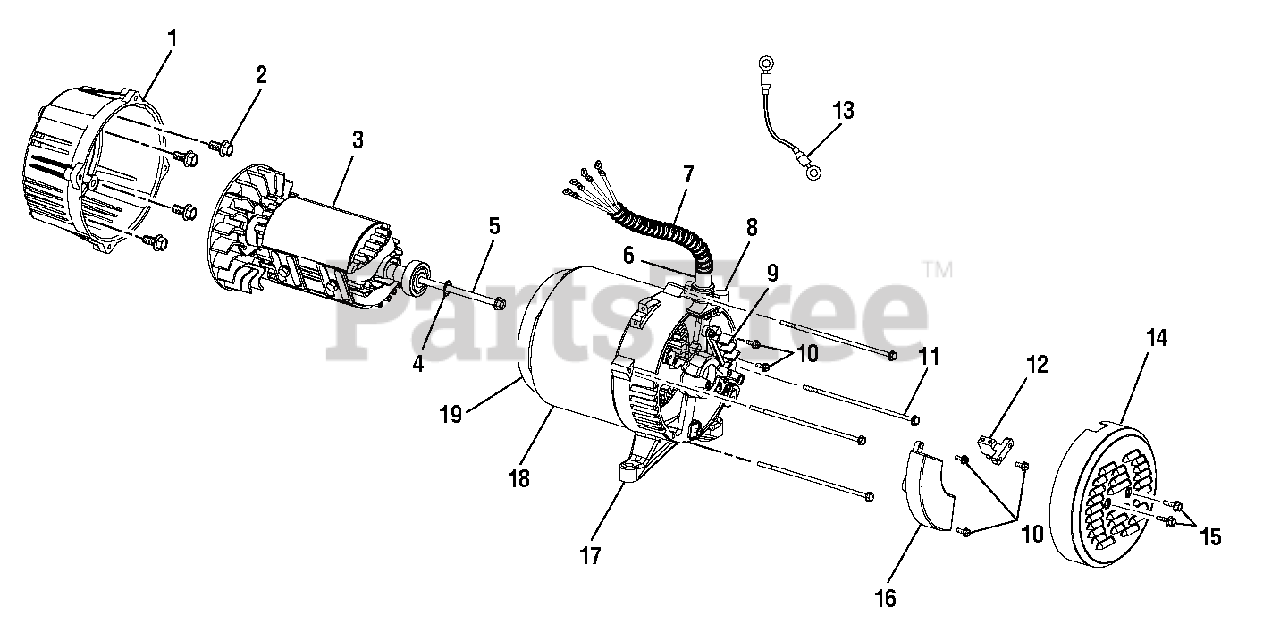

Housing Parts Diagram

  • Title
1

Gravely 20000819

Adaptor Housing

$51.99

$

Usually ships in 4-12 days

0

2

Gravely 20000823

Bolt (3/8-16 X 1.25 in.)

Note: (3/8-16 X 1.25 in.)

$3.49

$

In Stock, only 4 left!

0

$

$

Not available

4

Gravely 20000813

Lock Washer (5/16)

Note: (5/16)

$3.49

$

In Stock, only 1 left!

0

5

Gravely 20000832

Rotor Bolt

$6.99

$

In Stock, only 1 left!

0

6

Gravely 20000802

Rubber Boot

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 20000767

Wiring Harness

$

$

Not available

8

Gravely 20000781

Generator Head Assembly

$

$

Not available

9

Gravely 20000771

Terminal Block

$12.99

$

Usually ships in 4-12 days

0

10

Gravely 20000835

Bolt (M5 x 16 mm)

Note: (M5 x 16 mm)

$

$

Not available

11

Gravely 20000827

Bolt (Stator

$

$

Not available

12

Gravely 20000769

Brush Assembly

$

$

Not available

13

Gravely 20000770

Bonding Wire

$

$

Not available

14

Gravely 20000839

Brush Cover

$12.99

$

In Stock, only 1 left!

0

15

Gravely 20000834

Bolt (M5 x 10 mm)

Note: (M5 x 10 mm)

$3.49

$

In Stock, only 2 left!

0

16

Gravely 20000768

Automatic Voltage Regulator

$129.99

$

Usually ships in 4-12 days

0

17

Gravely 20000844

Bearing Housing

$

$

Not available

18

Gravely 20000810

Generator Head Cover

$

$

Not available

19

$133.99

$

Usually ships in 4-12 days

0
