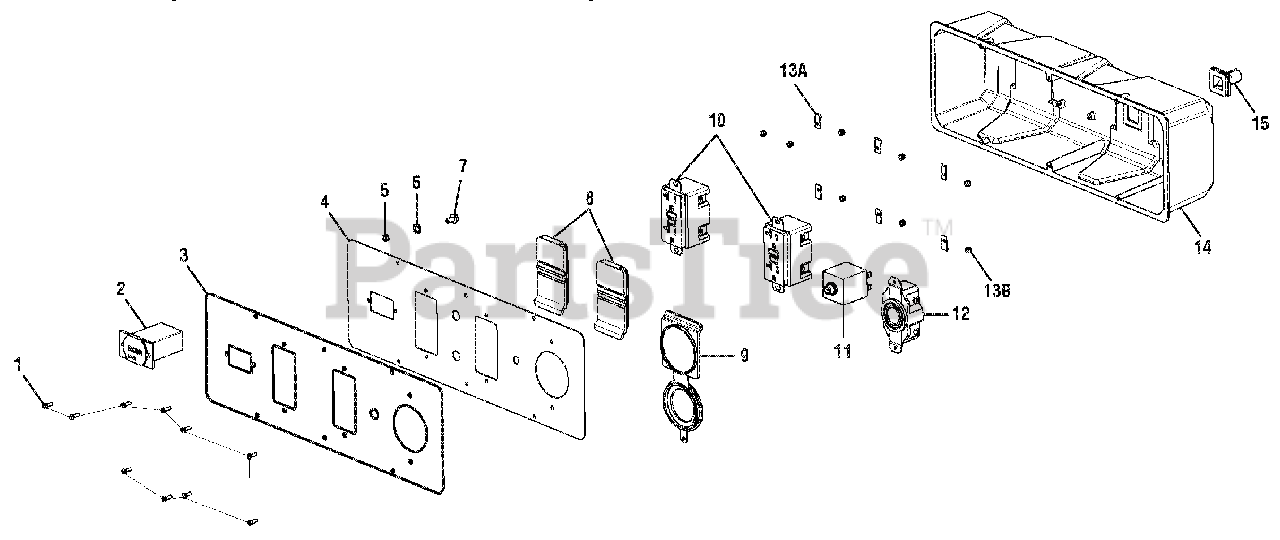

986058 - Gravely 5000 Watt Generator (SN: 000101 & Above) Electrical (Fig.C) Parts Diagram

5000 Watt Generator

Electrical (Fig.C) Parts Diagram

  • Title

1

Gravely 20000824

Screw (6-20 x 3/8 in.)

Note: (6-20 x 3/8 in.)

$

$

Not available

2

Gravely 20000784

Hour Meter (120 Volt)

Note: (120 Volt)

$

$

Not available

3

Gravely 20003018

Label (Power Outlet)

Note: (Power Outlet)

$

$

Not available

4

Gravely 20000949

Front Panel

$

$

Not available

5

Gravely 20000465

Lock Nut (M4)

Note: (M4)

$

$

Not available

6

Gravely 20000954

Star Washer (ID6.4 x OD11 x 0.6t)

Note: (ID6.4 x OD11 x 0.6t)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 20000834

Bolt (M5 x 10 mm, Hex Hd.)

Note: (M5 x 10 mm, Hex Hd.)

$3.49

$

In Stock, only 2 left!

0

8

Gravely 20000588

Outlet Cover (120 Volt)

Note: (120 Volt)

$

$

Not available

9

Gravely 20000947

Outlet Cover (240 Volt)

Note: (240 Volt)

$

$

Not available

10

Gravely 20000555

120 Volt Duplex Receptacle (GFCI)

Note: (GFCI)

$9.49

$

Usually ships in 4-12 days

0

11

Gravely 20003019

Circuit Breaker (20 Amp)

Note: (20 Amp)

$

$

Not available

12

Gravely 20000762

Twist Lock Receptacle (120/240 Volt, 30 Amp, L14-30R)

Note: (120/240 Volt, 30 Amp, L14-30R)

$

$

Not available

13A

Gravely 20000758

U-Clip

$

$

Not available

13B

Gravely 20000984

Lock Nut

$

$

Not available

14

Gravely 20000941

Control Box (Back Panel)

Note: (Back Panel)

$12.99

$

Usually ships in 4-12 days

0

15

Gravely 20000803

Rubber Boot

$

$

Not available
