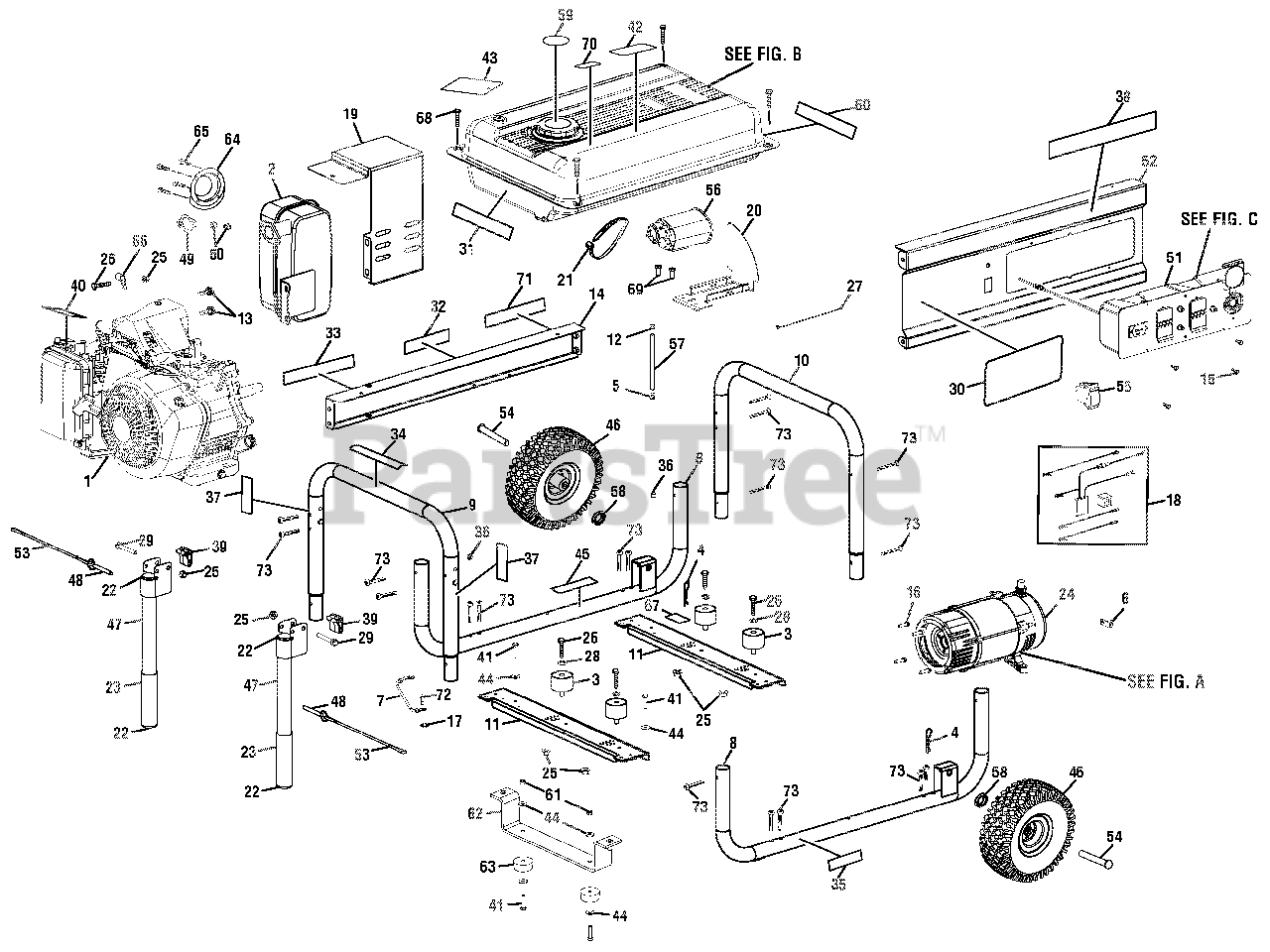

986058 - Gravely 5000 Watt Generator (SN: 000101 & Above) Main Assembly Parts Diagram

5000 Watt Generator

Main Assembly Parts Diagram

  • Title

1

Gravely NOTE A

Engine (Subaru) (Parts available at your local Subaru dealer)

Note: (Subaru) (Parts available at your local Subaru dealer)

$

$

Not available

2

Gravely 20000568

Muffler

$

$

Not available

3

Gravely 20000943

Isolator

$

$

Not available

4

Gravely 20000978

Hitch Pin

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 20003005

Clamp (3/8 in.)

Note: (3/8 in.)

$

$

Not available

6

Gravely 20000953

Ground Lug

$

$

Not available

7

Gravely 20000928

Ground Wire Assembly

$

$

Not available

8

Gravely 20000934

Lower Frame Assembly

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 20000935

Tube Assembly (Left)

Note: (Left)

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 20000937

Tube Assembly (Right)

Note: (Right)

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 20000956

Cross Brace

$12.99

$

Usually ships in 4-12 days

0

12

Gravely 20000840

Clamp (1/2 in.)

Note: (1/2 in.)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 20000826

Bolt (5/16-24 x 5/8 in.)

Note: (5/16-24 x 5/8 in.)

$5.49

$

In Stock, only 2 left!

0

14

Gravely 20000959

Back Panel

$27.99

$

Usually ships in 4-12 days

0

15

Gravely 20000824

Screw (6-20 x 3/8 in.)

Note: (6-20 x 3/8 in.)

$

$

Not available

16

Gravely 20000823

Bolt (3/8-16 x1.25 in.)

Note: (3/8-16 x1.25 in.)

$3.49

$

In Stock, only 4 left!

0

17

Gravely 20000977

Star Washer (M6)

Note: (M6)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 20000931

Wire Harness

$

$

Not available

19

Gravely 20000601

Heat Shield

$

$

Not available

20

Gravely 20000982

Bracket (Carbon Canister)

Note: (Carbon Canister)

$9.99

$

Usually ships in 4-12 days

0

21

Gravely 20000850

Cable Tie

$

$

Not available

22

Gravely 20000579

Plastic Cap

$

$

Not available

23

Gravely 20000944

Handle Grip

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 20003006

Generator Head w/AVR

$

$

Not available

25

Gravely 20000986

Lock Nut (M8)

Note: (M8)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 20000969

Bolt (M8 x 35 mm, Hex Hd.)

Note: (M8 x 35 mm, Hex Hd.)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 20000993

Tie Wrap

$

$

Not available

28

Gravely 20000976

Washer (M8)

Note: (M8)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 20000968

Bolt (M8 x 55 mm, Hex Hd.)

Note: (M8 x 55 mm, Hex Hd.)

$

$

Not available

30

Gravely 20003020

Logo Label

$

$

Not available

31

Gravely 20003008

Electric Start Label

$

$

Not available

32

Gravely 20000999

Hot Surface Label

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 20000996

Danger Label

$6.49

$

Usually ships in 4-12 days

0

34

Gravely 20000871

Fire Danger Label

$

$

Not available

35

Gravely 20000864

Engine Lubricant Label

$

$

Not available

36

Gravely 20000981

Lock Nut (M6)

Note: (M6)

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 20000995

Locking Pin Label

$

$

Not available

38

Gravely 20003009

Subaru Label

$

$

Not available

39

Gravely 20000791

Handle Bracket Spacer

$

$

Not available

40

Gravely 20000858

Choke Label

$

$

Not available

41

Gravely 20000962

Bolt (M6 x 1 in., Hex Hd.)

Note: (M6 x 1 in., Hex Hd.)

$3.99

$

Usually ships in 4-12 days

0

42

Gravely 20000854

CPSC Label

$

$

Not available

43

Gravely 20000873

Danger Hang Tag

$

$

Not available

44

Gravely 20000975

Washer (ID6.4 x OD17 x 1.6t)

Note: (ID6.4 x OD17 x 1.6t)

$3.99

$

Usually ships in 4-12 days

0

45

Gravely 20000519

Combustion Warning Label

$

$

Not available

46

Gravely 20000772

Wheel

$113.99

$

In Stock, only 1 left!

0

47

Gravely 20000939

Handle Assembly (Inc. Key No. 22-23)

Note: (Inc. Key No. 22-23)

$9.99

$

Usually ships in 4-12 days

0

48

Gravely 20000783

Release Pin (5/16 x 2 in.)

Note: (5/16 x 2 in.)

$

$

Not available

49

Gravely 20000599

Exhaust Gasket

$

$

Not available

50

Gravely 20000979

Lock Nut (M8)

Note: (M8)

$3.99

$

In Stock, only 2 left!

0

51

Gravely 20003010

Panel Assembly

$

$

Not available

52

Gravely 20000957

Front Panel

$50.99

$

Usually ships in 4-12 days

0

53

Gravely 20000785

Lanyard

$

$

Not available

54

Gravely 20000988

Axle

$6.49

$

Usually ships in 4-12 days

0

55

Gravely 20003011

Start Switch w/Lock

$

$

Not available

56

Gravely 20000887

Carbon Canister Assembly

$75.99

$

Usually ships in 4-12 days

0

57

Gravely 20003012

Purge Hose

$3.99

$

Usually ships in 4-12 days

0

58

Gravely 20000948

Washer (1/2 in.)

Note: (1/2 in.)

$3.99

$

Usually ships in 4-12 days

0

59

Gravely 20000870

Fuel Stabilizer Label

$

$

Not available

60

Gravely 20000994

Ground Warning Label

$3.99

$

Usually ships in 4-12 days

0

61

Gravely 20000981

Lock Nut (M6)

Note: (M6)

$3.99

$

Usually ships in 4-12 days

0

62

Gravely 20000955

Foot Bracket

$9.99

$

Usually ships in 4-12 days

0

63

Gravely 20000793

Rubber Foot

$

$

Not available

64

Gravely 20000804

Spark Arrestor

$7.49

$

Usually ships in 4-12 days

0

65

Gravely 20000828

Screw (8-32 x 3/8 in., Pan Hd.)

Note: (8-32 x 3/8 in., Pan Hd.)

$

$

Not available

66

Gravely 20000792

J-Clamp (1/2 in.)

Note: (1/2 in.)

$

$

Not available

67

Gravely 20000852

Ground Label

$

$

Not available

68

Gravely 20000963

Screw (1/4-14 x 1-1/4 in.)

Note: (1/4-14 x 1-1/4 in.)

$3.99

$

Usually ships in 4-12 days

0

69

Gravely 20000971

Screw (#10-16 x 3/4 in.)

Note: (#10-16 x 3/4 in.)

$

$

Not available

70

Gravely 20000869

E85 Label

$

$

Not available

71

Gravely 20000872

Fire Distance Label

$

$

Not available

72

Gravely 20000972

Screw (M6 x 16 mm, Hex Hd.)

Note: (M6 x 16 mm, Hex Hd.)

$

$

Not available

73

Gravely 20000961

Screw (M6 x 50 mm, T30, Pan Hd.)

Note: (M6 x 50 mm, T30, Pan Hd.)

$3.99

$

Usually ships in 4-12 days

0

Gravely 20000918

Operator's Manual (not shown)

Note: (not shown)

$

$

Not available

Gravely 20000925

Quick Start Guide (not shown)

Note: (not shown)

$

$

Not available
