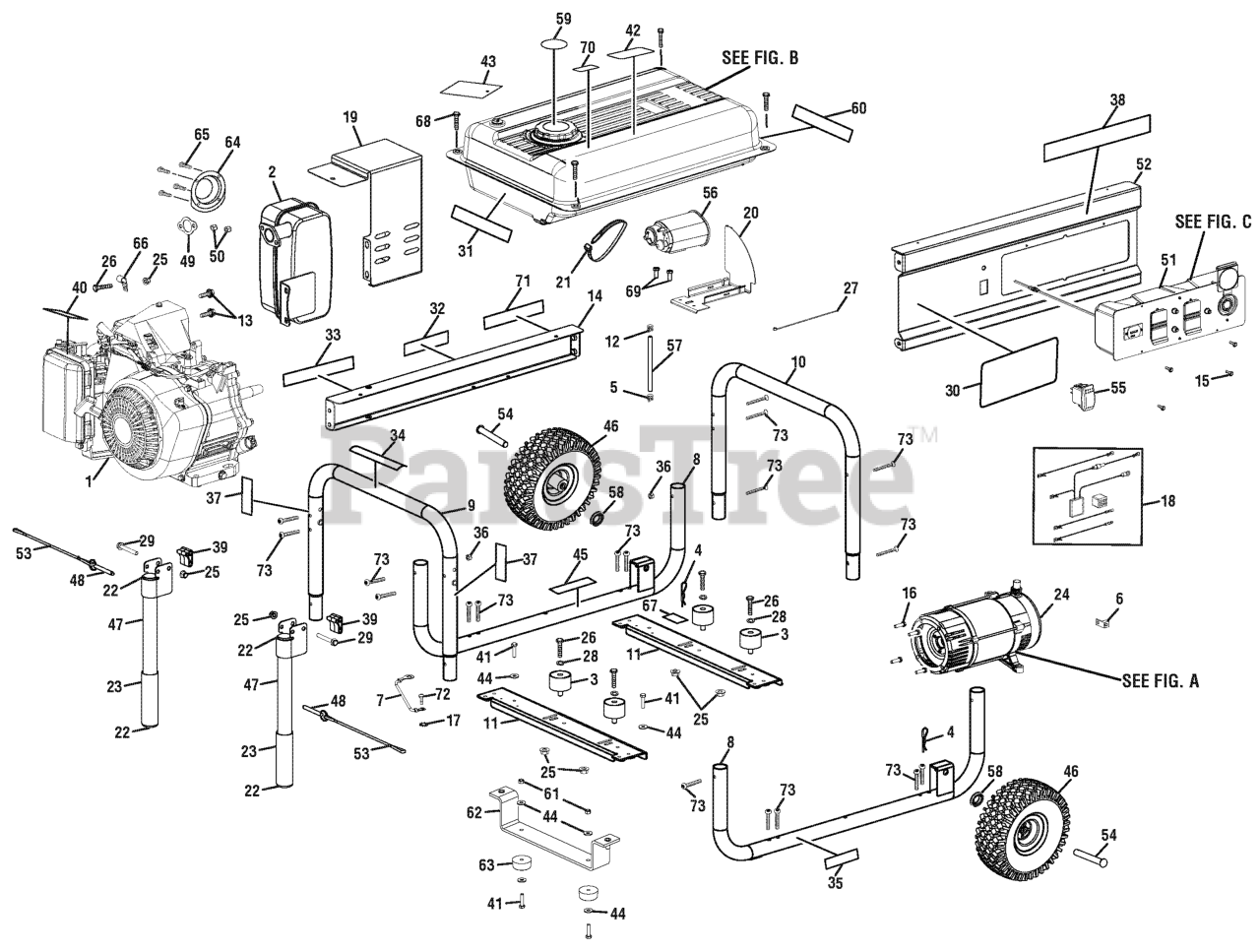

986059 - Ariens 5000 Watt Generator (SN: 002001 & Above) Main Assembly Parts Diagram

5000 Watt Generator

Main Assembly Parts Diagram

  • Title

1

Ariens NOTE A

Engine (Subaru)(Parts available at your local Subaru dealer)

Note: (Subaru)(Parts available at your local Subaru dealer)

$

$

Not available

2

Ariens 20000568

MUFFLER (SUBARU EX30)

$

$

Not available

3

Ariens 20000943

ISOLATOR

$

$

Not available

4

Ariens 20000978

HITCH PIN

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 20003005

CLAMP (3/8 IN.)

Note: (3/8 in.)

$

$

Not available

6

Ariens 20000953

GROUND LUG

$

$

Not available

7

Ariens 20000928

GROUND WIRE ASSEMBLY

$

$

Not available

8

Ariens 20000934

LOWER FRAME ASSEMBLY

$23.99

$

Usually ships in 4-12 days

0

9

Ariens 20000935

TUBE ASSEMBLY (LEFT)

Note: (Left)

$23.99

$

Usually ships in 4-12 days

0

10

Ariens 20000937

TUBE ASSEMBLY (RIGHT)

Note: (Right)

$23.99

$

Usually ships in 4-12 days

0

11

Ariens 20000956

CROSS BRACE

$15.99

$

Usually ships in 4-12 days

0

12

Ariens 20000840

FUEL LINE CLAMP (1/2 IN.)

Note: (1/2 in.)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 20000826

BOLT (5/16-24 X 5/8 IN.)

Note: (5/16-24 x 5/8 in.)

$5.49

$

In Stock, only 2 left!

0

14

Ariens 20000959

BACK PANEL

$29.99

$

Usually ships in 4-12 days

0

15

Ariens 20000824

SCREW (6-20 X 3/8 IN.)

Note: (6-20 x 3/8 in.)

$

$

Not available

16

Ariens 20000823

BOLT (3/8-16 X 1.25 IN.)

Note: (3/8-16 x1.25 in.)

$3.99

$

In Stock, only 4 left!

0

17

Ariens 20000977

STAR WASHER (M8)

Note: (M6)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 20000931

WIRE HARNESS

$

$

Not available

19

Ariens 20000601

BACK MUFFLER COVER

$

$

Not available

20

Ariens 20000982

BRACKET (CARBON CANISTER)

Note: (Carbon Canister)

$10.99

$

Usually ships in 4-12 days

0

21

Ariens 20000850

CABLE TIE

$

$

Not available

22

Ariens 20000579

END CAP

$

$

Not available

23

Ariens 20000944

HANDLE GRIP

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 20003006

GENERATOR HEAD W/AVR

$

$

Not available

25

Ariens 20000986

NUT (M8)

Note: (M8)

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 20000969

BOLT (M8 X 35 MM, HEX HD.)

Note: (M8 x 35 mm, Hex Hd.)

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 20000993

TIE WRAP

$

$

Not available

28

Ariens 20000976

WASHER (M8)

Note: (M8)

$3.99

$

Usually ships in 4-12 days

0

29

Ariens 20000968

BOLT (M8 X 55 MM, HEX HD.)

Note: (M8 x 55 mm, Hex Hd.)

$

$

Not available

30

Ariens 20003007

LOGO LABEL

$

$

Not available

31

Ariens 20003008

ELECTRIC START LABEL

$

$

Not available

32

Ariens 20000999

HOT SURFACE LABEL

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 20000996

DANGER LABEL

$6.99

$

Usually ships in 4-12 days

0

34

Ariens 20000871

FIRE DANGER LABEL

$

$

Not available

35

Ariens 20000864

ENGINE LUBRICANT LABEL

$

$

Not available

36

Ariens 20000981

NUT (M6)

Note: (M6)

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 20000995

LOCKING PIN LABEL

$

$

Not available

38

Ariens 20003009

SUBARU LABEL

$

$

Not available

39

Ariens 20000791

HANDLE BRACKET SPACER

$

$

Not available

40

Ariens 20000858

CHOKE LABEL

$

$

Not available

41

Ariens 20000962

BOLT (M6 X 1 IN., HEX HD.)

Note: (M6 x 1 in., Hex Hd.)

$3.99

$

Usually ships in 4-12 days

0

42

Ariens 20000854

CPSC LABEL

$

$

Not available

43

Ariens 20000873

HANGTAG (ENGINE WARNING)

$

$

Not available

44

Ariens 20000975

WASHER (ID6.4 X OD17 X 1.6T)

Note: (ID6.4 x OD17 x 1.6t)

$3.99

$

Usually ships in 4-12 days

0

45

Ariens 20000519

COMBUSTION WARNING LABEL

$

$

Not available

46

Ariens 20000772

WHEEL ASSEMBLY

$113.99

$

In Stock, only 1 left!

0

47

Ariens 20000939

HANDLE ASSEMBLY

Note: (Inc. Key No. 22-23)

$11.99

$

Usually ships in 4-12 days

0

48

Ariens 20000783

RELEASE PIN (5/16 X 2 IN.)

Note: (5/16 x 2 in.)

$

$

Not available

49

Ariens 20000599

MUFFLER GASKET

$

$

Not available

50

Ariens 20000979

NUT( M8)

Note: (M8)

$3.99

$

In Stock, only 2 left!

0

51

Ariens 20003010

PANEL ASSEMBLY

$

$

Not available

52

Ariens 20000957

FRONT PANEL

$52.99

$

Usually ships in 4-12 days

0

53

Ariens 20000785

LANYARD (3/16 IN.)

$

$

Not available

54

Ariens 20000988

AXLE

$6.99

$

Usually ships in 4-12 days

0

55

Ariens 20003011

STOP SWITCH W/LOCK

$

$

Not available

56

Ariens 20000887

CANISTER

$78.99

$

Usually ships in 4-12 days

0

57

Ariens 20003012

PURGE HOSE

$3.99

$

Usually ships in 4-12 days

0

58

Ariens 20000948

WASHER (1/2 IN.)

Note: (1/2 in.)

$

$

Not available

59

Ariens 20000870

FUEL STABILIZER LABEL

$

$

Not available

60

Ariens 20000994

GROUND WARNING LABEL

$3.99

$

Usually ships in 4-12 days

0

61

Ariens 20000981

NUT (M6)

Note: (M6)

$3.99

$

Usually ships in 4-12 days

0

62

Ariens 20000955

FOOT BRACKET

$10.99

$

Usually ships in 4-12 days

0

63

Ariens 20000793

RUBBER FOOT

$

$

Not available

64

Ariens 20000804

SPARK ARRESTOR

$7.99

$

Usually ships in 4-12 days

0

65

Ariens 20000828

SCREW (8-32 X 3/8 IN.)

Note: (8-32 x 3/8 in., Pan Hd.)

$

$

Not available

66

Ariens 20000792

J-CLAMP

Note: (1/2 in.)

$

$

Not available

67

Ariens 20000852

GROUND LABEL

$

$

Not available

68

Ariens 20000963

SCREW (1/4-14 X 1.25 IN.)

Note: (1/4-14 x 1-1/4 in.)

$3.99

$

Usually ships in 4-12 days

0

69

Ariens 20000971

SCREW (#10-16 X 3/4 IN.)

Note: (#10-16 x 3/4 in.)

$

$

Not available

70

Ariens 20000869

E85 LABEL

$

$

Not available

71

Ariens 20000872

FIRE DISTANCE LABEL

$

$

Not available

72

Ariens 20000972

SCREW (M6 X 16 MM, HEX HD.)

Note: (M6 x 16 mm, Hex Hd.)

$

$

Not available

73

Ariens 20000961

SCREW (M6 X 50 MM, T30, PANHD)

Note: (M6 x 50 mm, T30, Pan Hd.)

$3.99

$

Usually ships in 4-12 days

0

Ariens 20000921

OWNERS MANUAL AR905011P

$

$

Not available

Ariens 20000924

QUICK REF GUIDE AR905011P

$

$

Not available
