986101 - Ariens Lawn Edger, 6hp Subaru (SN: 012000 & Above) Handlebars And Controls Parts Diagram

Lawn Edger, 6hp Subaru

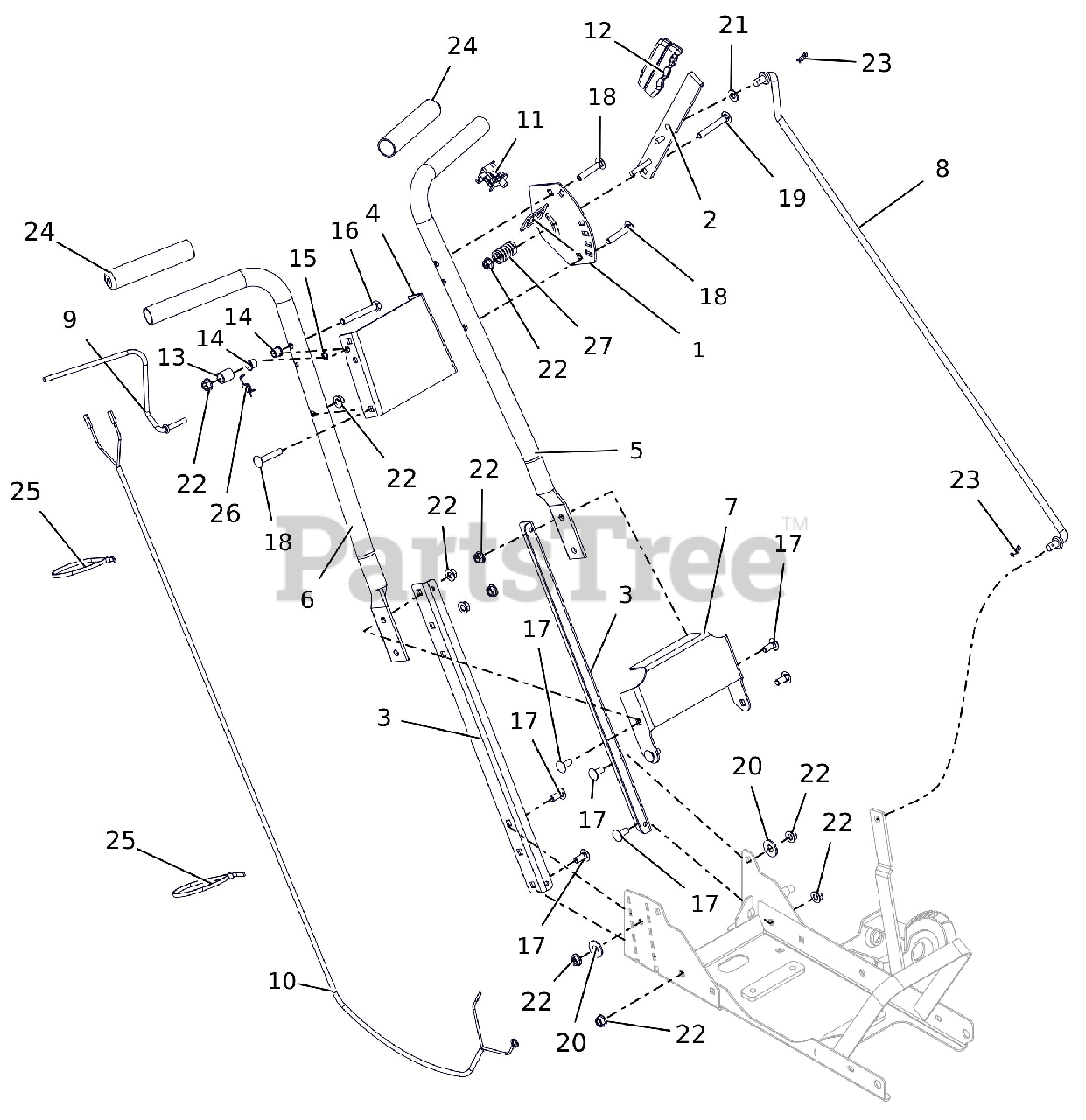

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 03778851

DETENT,PIVOT

$25.99

$

Usually ships in 4-12 days

0

2

Ariens 03778951

LEVER,PIVOT

$16.99

$

Usually ships in 4-12 days

0

3

Ariens 03778051

STRAP

$27.99

$

Usually ships in 4-12 days

0

4

Ariens 03778251

PANEL,UPPER

$16.99

$

Usually ships in 4-12 days

0

5

Ariens 03778351

HANDLEBAR,UPPER LH

$30.99

$

Usually ships in 4-12 days

0

6

Ariens 03778451

HANDLEBAR,UPPER RH

$22.99

$

Usually ships in 4-12 days

0

7

Ariens 03779151

PANEL,LOWER

$20.99

$

Usually ships in 4-12 days

0

8

Ariens 03779300

ROD, PIVOT

$37.99

$

Usually ships in 4-12 days

0

9

Ariens 03791400

ROD, OPC

$17.99

$

Usually ships in 4-12 days

0

10

Ariens 03793100

HARNESS, EDGER

$14.99

$

Usually ships in 4-12 days

0

11

Ariens 03793700

SWITCH- SNAP MTG N.C.

$7.99

$

Usually ships in 4-12 days

0

12

Ariens 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, Qty 8

0

13

Ariens 05500911

SPACER, GROUND .462X.625X.750

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

15

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 16

0

16

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, only 4 left!

0

17

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 8

0

18

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 3 left!

0

19

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

21

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

22

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

24

Ariens 07500239

HANDLE GRIP

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

26

Ariens 08300501

SPRING, TORSION

$7.99

$

In Stock, only 4 left!

0

27

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

Usually ships in 4-12 days

0
