986102 - Gravely Lawn Edger (SN: 000101 & Above) Spindle, Belt And Guards Parts Diagram

Lawn Edger

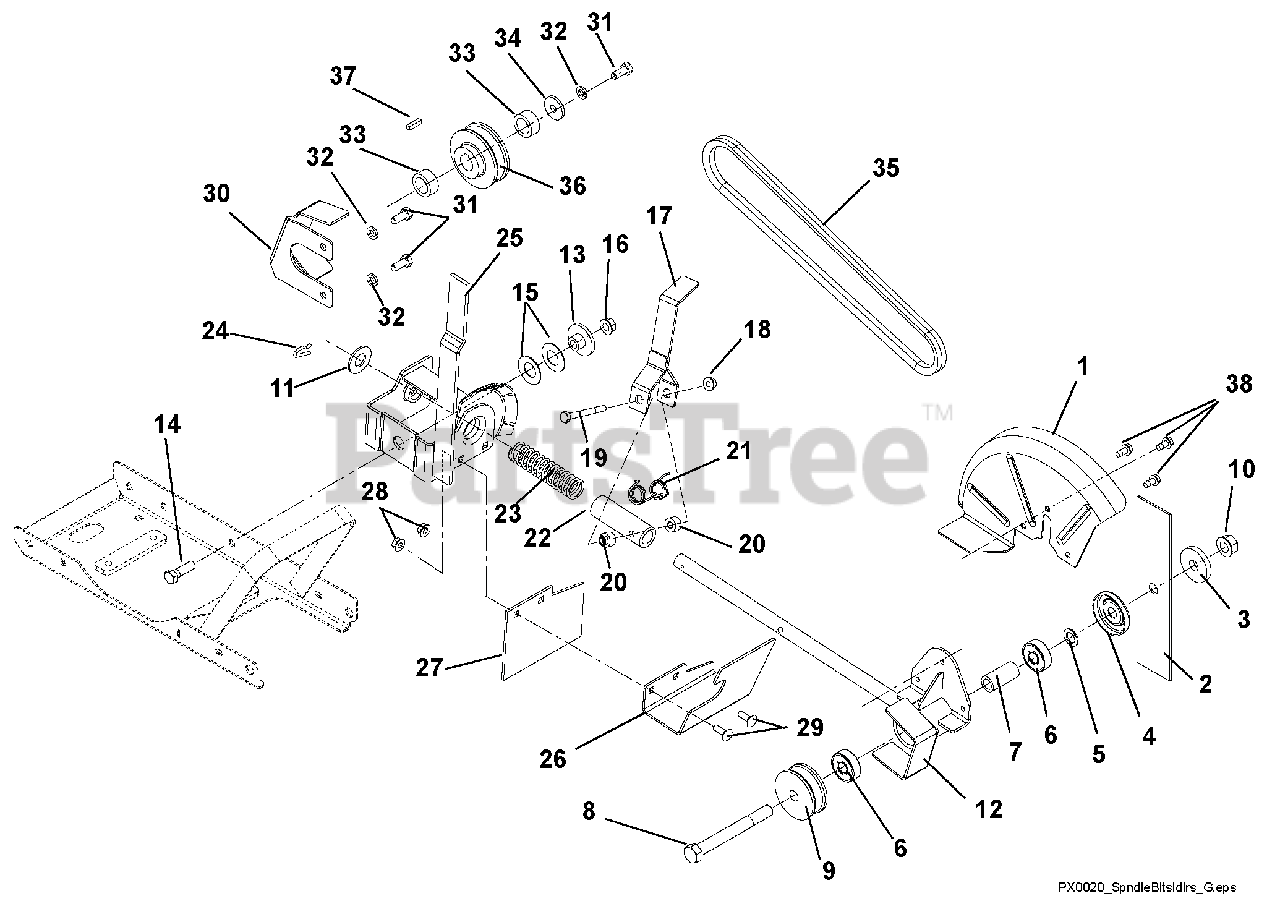

Spindle, Belt And Guards Parts Diagram

  • Title

1

Gravely 03779553

GUARD, BLADE

$51.99

$

Usually ships in 4-12 days

0

2

Gravely 03789800

BLADE, EDGER-9"

$18.99

$

In Stock, Qty 15

0

3

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

4

Gravely 03790000

SLINGER, BEARING

$9.99

$

In Stock, only 2 left!

0

5

Gravely 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

7

Gravely 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 5

0

8

Gravely 05962300

BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$6.99

$

In Stock, Qty 10

0

9

Gravely 03779700

PULLEY, BLADE
(Superseded to 03779767)

$131.99

$

Usually ships in 4-12 days

0

10

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 03729851

SPINDLE,CUTTER HEAD

$131.99

$

In Stock, only 1 left!

0

13

Gravely 05500910

BSHG,FLG .384X.635X.41X1.49

$3.99

$

In Stock, only 1 left!

0

14

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 15

0

15

Gravely 06400901

WASHER, BELLEVILLE

$4.99

$

In Stock, only 1 left!

0

16

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03730451

LEVER,TILT

$35.99

$

Usually ships in 4-12 days

0

18

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 13

0

19

Gravely 05961600

BLT-HEX .25-20X2.50 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 05500912

BSHG,FLG .263X.393X.18X.625

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 08300439

SPRING, TORSION

$

$

Not available

22

Gravely 03780000

COLLAR, SPRG

$

$

Not available

23

Gravely 08300440

SPRING, COMPRESSION

$3.99

$

In Stock, only 1 left!

0

24

Gravely 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 20+

0

25

Gravely 03730553

MOUNT, CUTTER HEAD-PIVOT

$109.99

$

Usually ships in 4-12 days

0

26

Gravely 03779453

GUARD

$

$

Not available

27

Gravely 03780100

FLAP, RUBBER

$

$

Not available

28

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 13

0

29

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 03779853

BELT FINGER, ENGINE

$

$

Not available

31

Gravely 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

32

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

33

Gravely 05500140

BSHG-SLV .766 X 1.125 X .500

$3.99

$

In Stock, only 2 left!

0

34

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$4.99

$

In Stock, Qty 18

0

35

Gravely 07200507

V-BELT, 4L-WRAPPED

$33.99

$

In Stock, Qty 6

0

36

Gravely 03779600

PULLEY, ENGINE
(Superseded to 03779667)

$197.99

$

Usually ships in 4-12 days

0

37

Gravely 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, only 2 left!

0

38

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
