986104 - Gravely Lawn Edger (SN: 000101 & Above)

Lawn Edger

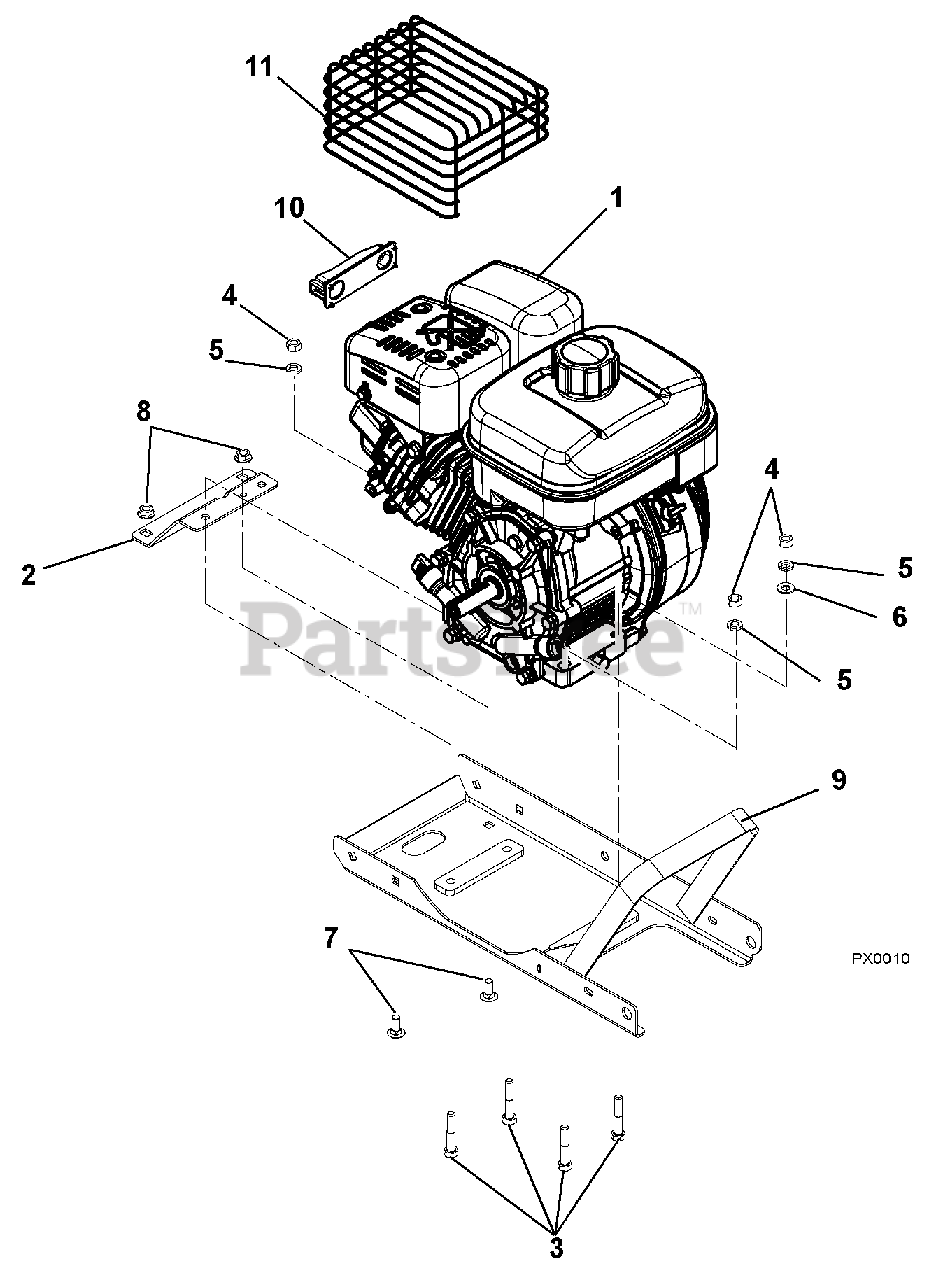

986104 - Gravely Lawn Edger (SN: 000101 & Above) > Parts Diagrams (4) > Frame And Engine

  • Title
08200429

1

Engine, Subaru SP170 (CARB) (986102)

Part# 08200429

Note: (CARB) (986102)

OEM Warranty Repair Part for Gravely

Not available

08200627

Engine, LCT-136 (CARB) (986104)

Part# 08200627

Note: (CARB) (986104)

OEM Warranty Repair Part for Gravely

Not available

03729153

2

Bracket, Reinforcement

Part# 03729153

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.11

05957400

3

Bolt, Hex .31-18 x 1.75 Grade 5

Part# 05957400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06529200

4

Nut, Hex .31-18

Part# 06529200

OEM Warranty Repair Part for Gravely

Not available

06307400

5

Washer, Locking .312 x .097

Part# 06307400

OEM Warranty Repair Part for Gravely

Not available

06437200

6

Washer-Flat-Steel .344 x .688 x .065

Part# 06437200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06215700

7

Bolt, Round Head Square Neck .31-18 x .75

Part# 06215700 (Superseded to 06200232)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06543100

8

Nut, Locking Top Flange .31-18

Part# 06543100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.62

03728953

9

Frame, Edger

Part# 03728953

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $88.27

04275100

10

Kit, LCT Exhaust Deflector (986104)

Part# 04275100

Note: (986104)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.91

04042300

11

Guard, Muffler Subaru (986501)

Part# 04042300

Note: (986501)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71
