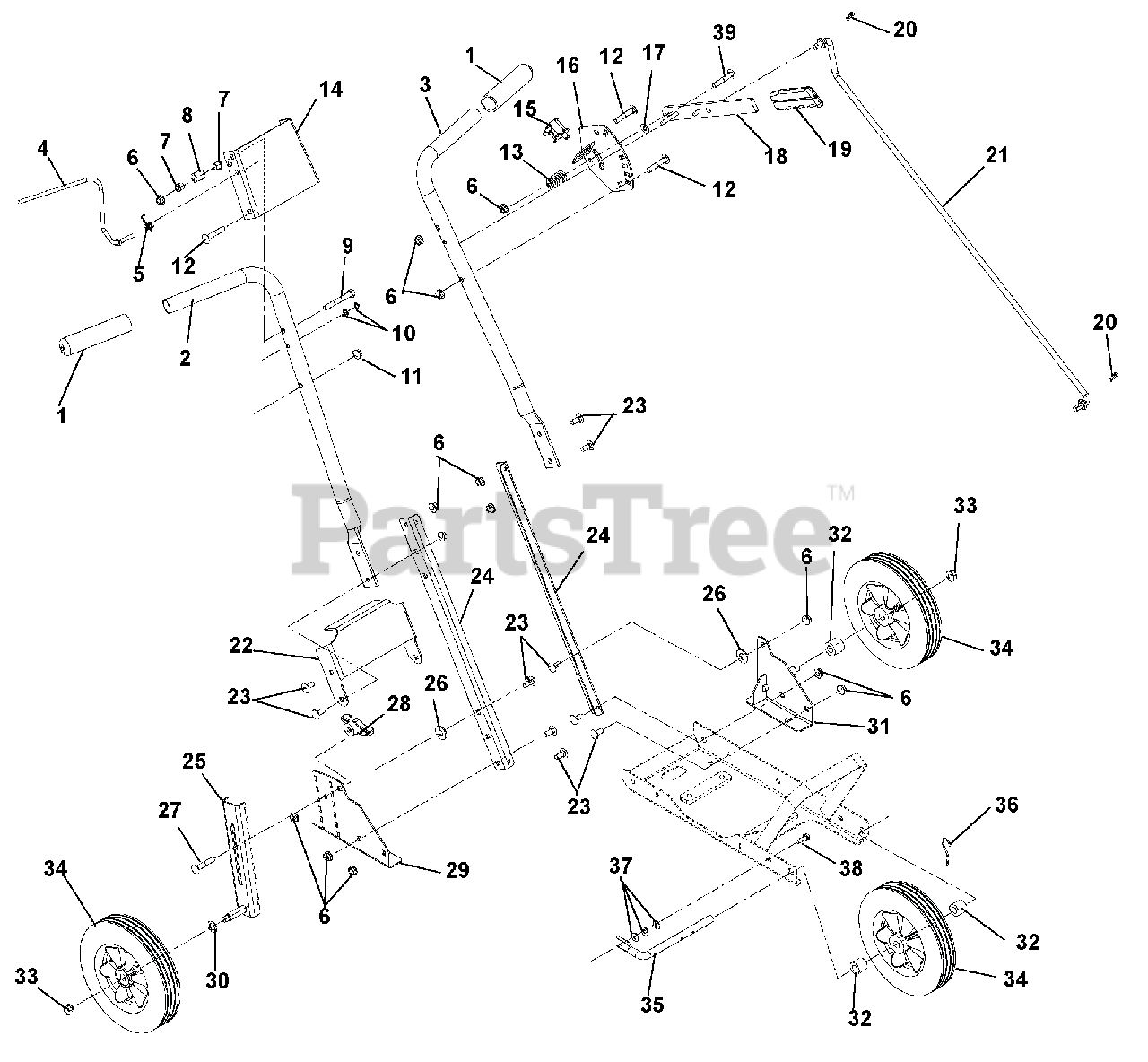

986104 - Gravely Lawn Edger (SN: 000101 & Above) > Parts Diagrams (4) > Handlebars, Controls And Wheels

  • Title
07518700

1

Handle Grip

Part# 07518700 (Superseded to 07500239)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

03778451

2

Handlebar, Upper RH

Part# 03778451

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.12

03778351

3

Handlebar, Upper LH

Part# 03778351

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.12

03791400

4

Rod, OPC

Part# 03791400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

03793100

Harness, Edger (Not Shown)

Part# 03793100

Note: (Not Shown)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

08300501

5

Spring, Torsion

Part# 08300501

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06543100

6

Nut, Locking Top Flange .31-18

Part# 06543100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.62

05514500

7

Bushing, Flange .325 x .444 x .440 x .560

Part# 05514500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05500911

8

Spacer, Ground

Part# 05500911

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05952600

9

Bolt, Hex .31-18 x 2.50 Grade 5

Part# 05952600

OEM Warranty Repair Part for Gravely

Not available

05717600

10

Ring, Retaining Ext. .250 x .010

Part# 05717600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06543100

11

Nut, Locking Top Flange .31-18

Part# 06543100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.62

06220200

12

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5

Part# 06220200

OEM Warranty Repair Part for Gravely

Not available

08335700

13

Spring, Compression .125 x .781 x 1.250

Part# 08335700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

03778251

14

Panel, Upper

Part# 03778251

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.38

03793700

15

Switch, Snap

Part# 03793700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

03778851

16

Detent, Pivot

Part# 03778851

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06437200

17

Washer, Flat Steel .344 x .688 x .065

Part# 06437200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

03778951

18

Lever, Pivot

Part# 03778951

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

03826900

19

Grip, Parking Brake

Part# 03826900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.52

06714800

20

Pin, Hair #25

Part# 06714800

OEM Warranty Repair Part for Gravely

Not available

03779300

21

Rod, Pivot

Part# 03779300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $29.68

03779151

22

Panel, Lower

Part# 03779151

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.89

06215700

23

Bolt, Round Head Square Neck .31-18 x .75 Grade 5

Part# 06215700 (Superseded to 06200232)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

03778051

24

Strap

Part# 03778051

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

04154851

25

Leg Drop, Wheel

Part# 04154851

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.48

06435900

26

Washer, Flat Steel .438 x 1.00 x .083

Part# 06435900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06220200

27

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5

Part# 06220200

OEM Warranty Repair Part for Gravely

Not available

07500105

28

Knob, Clamping .312-18

Part# 07500105

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

03729351

29

Bracket, RH Wheel Support (986102)

Part# 03729351

Note: (986102)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.11

04269151

Bracket, RH Wheel Support (986104)

Part# 04269151

Note: (986104)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06441100

30

Washer, Flat Steel .52 x .827 x .062

Part# 06441100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

03780451

31

Bracket, LH Wheel Support

Part# 03780451

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $37.12

09293600

32

Spacer, Wheel

Part# 09293600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06542000

33

Nut, Locking Top Flange .38-16

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07100827

34

Wheel, 8.0 x 1.75 x .50

Part# 07100827

OEM Warranty Repair Part for Gravely

Not available

04155200

35

Axle, Front

Part# 04155200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

06712900

36

Hairpin, #7 Clip .094 x 2.31

Part# 06712900

OEM Warranty Repair Part for Gravely

Not available

06437300

37

Washer, Flat Steel .281 x .62 x .065

Part# 06437300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

07414200

38

Screw, Tapping .25-20 x .75

Part# 07414200 (Superseded to 07400111)

OEM Warranty Repair Part for Gravely

Not available

06221600

39

Bolt, Round Head Square Neck .31-18 x 2.25

Part# 06221600

OEM Warranty Repair Part for Gravely

Not available
