987007 (24-G) - Gravely Lawn Tractor (SN: 000101 & Above) FRAME Parts Diagram

Lawn Tractor

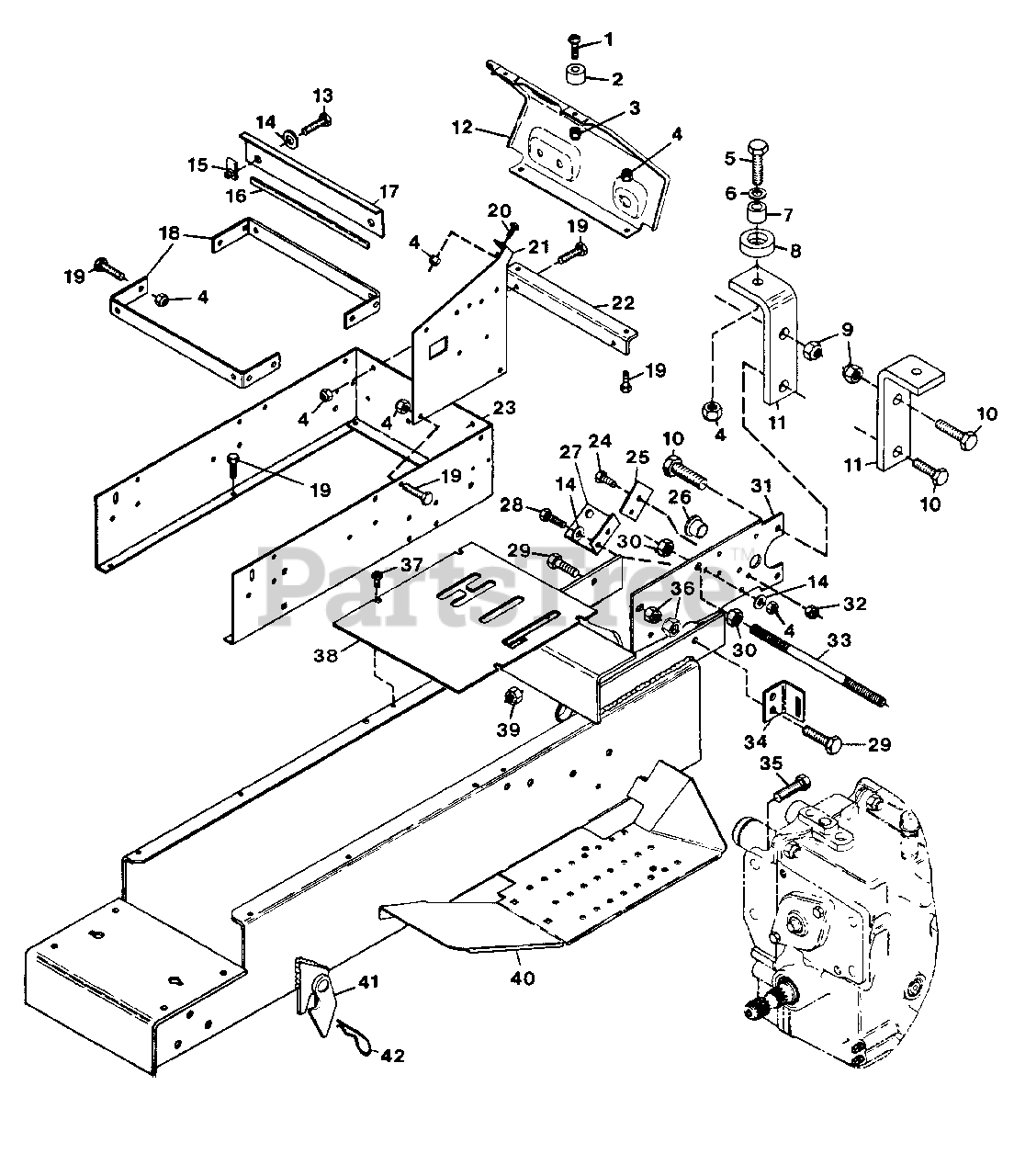

FRAME Parts Diagram

  • Title

1

Gravely 159341

SCREW, MACHINE 6-32X.625 PHD
(Superseded to 06110700)

$1.99

$

Usually ships in 4-12 days

0

2

Gravely 018183

BUMPER
(Superseded to 07017400)

$

$

Not available

3

Gravely 427254

NUT, MACHINE LOCK 6-32
(Superseded to 06538900)

$0.99

$

Usually ships in 4-12 days

0

4

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

5

Gravely 180024

BOLT, HEX 1/4-20X1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

6

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

7

Gravely 034723

BUSH., ST. .265X.375X.250 STL.
(Superseded to 08708300)

$12.99

$

Usually ships in 4-12 days

0

8

Gravely 024357

BUMPER, SEAT
(Superseded to 07521800)

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 180177

BOLT, HEX 1/2-13X1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 045594

BRACKET, REAR HITCH
(Superseded to 08768900)

$

$

Not available

12

Gravely 046286

PANEL, SILK SCREEN
(Superseded to 08777700)

$

$

Not available

13

Gravely 180021

BOLT, HEX 1/4-20X.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

15

Gravely 032369

NUT, RETAINER
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 014897

MOULDING
(Superseded to 08658300)

$

$

Not available

17

Gravely 022421

BRACKET, FORWARD TANK
(Superseded to 08724600)

$

$

Not available

18

Gravely 045831

BRACKET, FUEL TANK
(Superseded to 08771000)

$

$

Not available

19

Gravely 180020

BOLT, HEX 1/4-20X.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

20

Gravely 160541

SCREW, MACHINE 1/4-20X.75 PHD
(Superseded to 06113500)

$1.99

$

In Stock, only 3 left!

0

21

Gravely 040449

BRACE, INSTRUMENT PANEL L.H.
(Superseded to 08748200)

$

$

Not available

21

Gravely 040450

BRACE, INSTRUMENT PANEL R.H.
(Superseded to 08748300)

$

$

Not available

22

Gravely 040548

BRACKET, INSTRUMENT PANEL
(Superseded to 08749300)

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 050998

SUPPORT, INSTRUMENT PANEL
(Superseded to 08789400)

$

$

Not available

24

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

25

Gravely 040822

BRACKET, BUSHING LOCK
(Superseded to 08752000)

$5.99

$

Usually ships in 4-12 days

0

26

Gravely 010174

BUSH., FLG. .764X1.47X.560 NY.
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

27

Gravely 046305

BRACKET, INTERLOCK SWITCH
(Superseded to 08778400)

$

$

Not available

28

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

29

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 6

0

30

Gravely 120378

NUT, HEX 1/2-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

31

Gravely 046301

PLATE, FWD-REV MOUNTING
(Superseded to 08778200)

$

$

Not available

32

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

33

Gravely 040207

ROD, FRAME EXTENSION BRACE
(Superseded to 08655000)

$

$

Not available

34

Gravely 046306

BRACKET, FENDER HOLD-UP
(Superseded to 08778500)

$11.99

$

Usually ships in 4-12 days

0

35

Gravely 181700

BOLT, HEX 1/2-20X1.50
(Superseded to 05968600)

$3.99

$

Usually ships in 4-12 days

0

36

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

37

Gravely 167260

SCREW, TAPPING 1/4-20X.625 PHD
(Superseded to 07410400)

$2.49

$

In Stock, Qty 15

0

38

Gravely 047399

PLATE, CONTROL COVER SILK SCREEN
(Superseded to 08780600)

$11.99

$

Usually ships in 4-12 days

0

39

Gravely 011058

NUT, RIM
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 050999

WELDMENT, FRAME
(Superseded to 08789500)

$

$

Not available

41

Gravely 021087

WELDMENT, MOWER BRACKET R.H.
(Superseded to 08722200)

$

$

Not available

41

Gravely 021088

WELDMENT, MOWER BRACKET L.H.
(Superseded to 08722300)

$

$

Not available

42

Gravely 010405

PIN, HAIR
(Superseded to 06714000)

$2.99

$

In Stock, Qty 9

0
