987007 (24-G) - Gravely Lawn Tractor (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Lawn Tractor

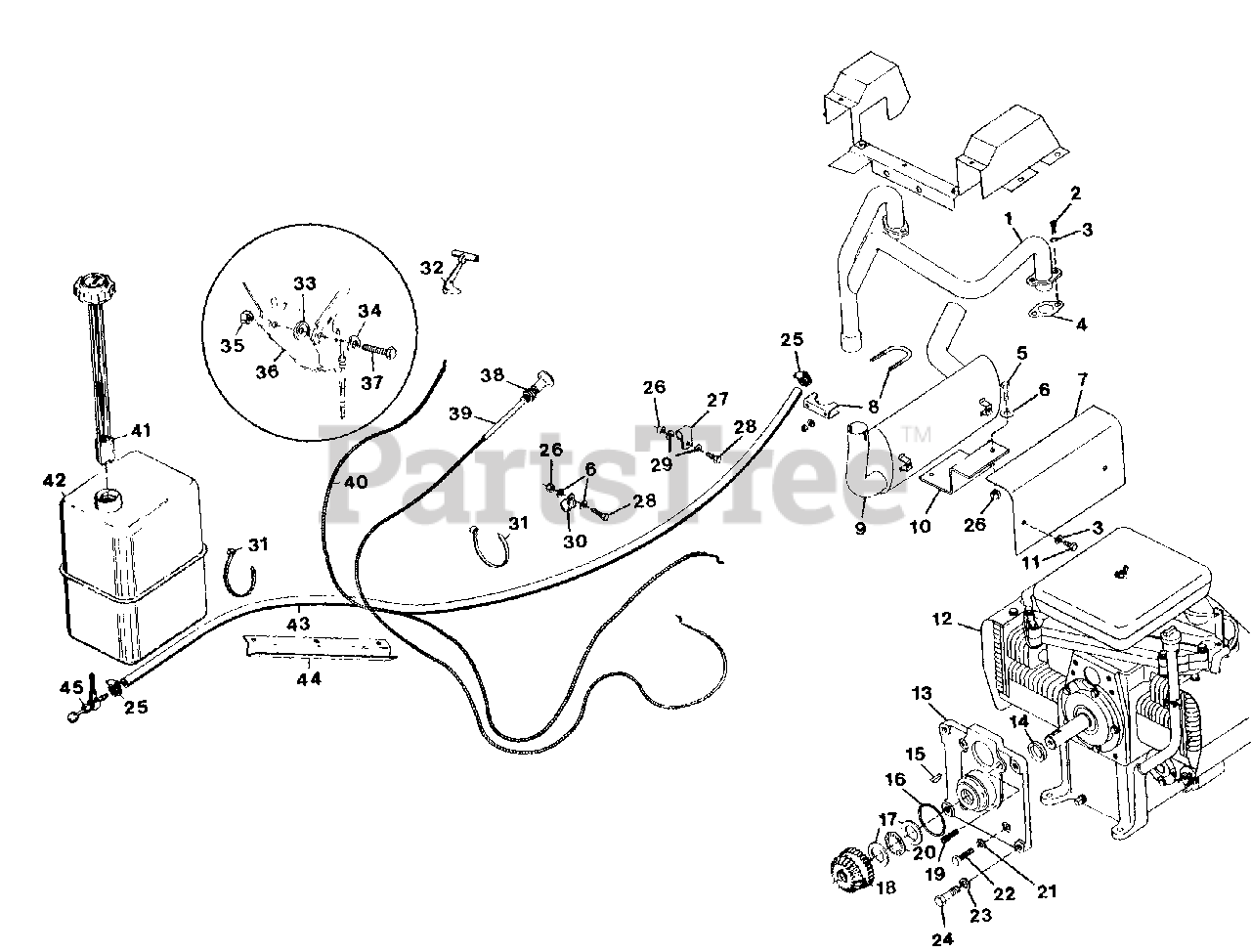

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 046171

HEADER, EXHAUST
(Superseded to 08776400)

$

$

Not available

2

Gravely 421705

SCREW, CAP 5/16-18X.75 SHD
(Superseded to 05901827)

$2.99

$

In Stock, Qty 11

0

3

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 049078

GASKET, EXHAUST
(Superseded to 05618000)

$

$

Not available

5

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

6

Gravely 120393

WASHER, FLAT .343X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

7

Gravely 046217

SHIELD, MUFFLER
(Superseded to 08777300)

$

$

Not available

8

Gravely 021819

CLAMP, MUFFLER U-BOLT
(Superseded to 06922300)

$

$

Not available

9

Gravely 046073

MUFFLER, EXHAUST
(Superseded to 08775700)

$

$

Not available

10

Gravely 046182

BRACKET, MUFFLER SUPPORT
(Superseded to 08776900)

$

$

Not available

11

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

12

Gravely 046030

ENGINE, 24 H.P. ONAN

$

$

Not available

13

Gravely 046234

ADAPTOR, ENGINE
(Superseded to 08777500)

$

$

Not available

14

Gravely 018517

SEAL, OIL 1.125X1.628X.250
(Superseded to 05615100)

$9.99

$

Usually ships in 4-12 days

0

15

Gravely 103909

KEY, WOODRUFF .25X1.125 SFT.
(Superseded to 06604400)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 018346

O-RING, 3.000X3.188X.094
(Superseded to 05614900)

$3.49

$

In Stock, only 4 left!

0

17

Gravely 040758

RACE, BRG THRUST 1.125X1.75X.123
(Superseded to 06434200)

$20.99

$

Usually ships in 4-12 days

0

18

Gravely 045586

GEAR, SPUR AND BEVEL, INPUT
(Superseded to 08790200)

$323.99

$

Usually ships in 4-12 days

0

19

Gravely 454475

SCREW, CAP 3/8-16X1.75 HSHD
(Superseded to 05933400)

$3.49

$

In Stock, only 2 left!

0

20

Gravely 018341

BEARING, THRUST 1.127X1.740X.078
(Superseded to 05421000)

$10.99

$

In Stock, only 4 left!

0

21

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

22

Gravely 180128

BOLT, HEX 3/8-16X1.75
(Superseded to 05901809)

$1.49

$

In Stock, only 2 left!

0

23

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

24

Gravely 180179

BOLT, HEX 1/2-13X1.75
(Superseded to 05901939)

$3.99

$

In Stock, Qty 8

0

25

Gravely 032045

CLAMP, HOSE
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

26

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

27

Gravely 050427

CLAMP, NYLON 1.23
(Superseded to 06921500)

$

$

Not available

28

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

29

Gravely 446354

WASHER, FLAT .313X.875X.065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 050394

CLAMP, STEEL .625
(Superseded to 06908200)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

32

Gravely 011773

ASSEMBLY, KNOB AND LEVER
(Superseded to 06917100)

$

$

Not available

33

Gravely 011772

WASHER, FRICTION
(Superseded to 06431500)

$13.99

$

Usually ships in 4-12 days

0

34

Gravely 011774

WASHER, SPRING
(Superseded to 03493400)

$5.99

$

Usually ships in 4-12 days

0

35

Gravely 416430

NUT, LOCK 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

36

Gravely 011770

BRACKET, MOUNTING
(Superseded to 03493300)

$

$

Not available

37

Gravely 181566

BOLT, HEX 1/4-28X.75
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

38

Gravely 124925

NUT, JAM 3/8-24 HEX
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

39

Gravely 039859

CONTROL, CHOKE
(Superseded to 06926100)

$59.99

$

In Stock, only 2 left!

0

40

Gravely 046377

ASSEMBLY, CHOKE CONDUIT
(Superseded to 06922700)

$

$

Not available

41

Gravely 021415

GAUGE, GAS
(Superseded to 08723700)

$

$

Not available

42

Gravely 040620

TANK, FUEL
(Superseded to 58700500)

$

$

Not available

43

Gravely 021134

LINE, FUEL
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 032030

SHIELD, HEAT
(Superseded to 08734400)

$

$

Not available

45

Gravely 018563

VALVE, FUEL 90 DEG. REV. FLOW
(Superseded to 08707900)

$

$

Not available

NS

Gravely 160046

SCREW, MACHINE 10-32X.50 PHD
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

NS

Gravely 411893

NUT, LOCK 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0
