987007 (24-G) - Gravely Lawn Tractor (SN: 000101 & Above) HYDRAULIC SYSTEM Parts Diagram

Lawn Tractor

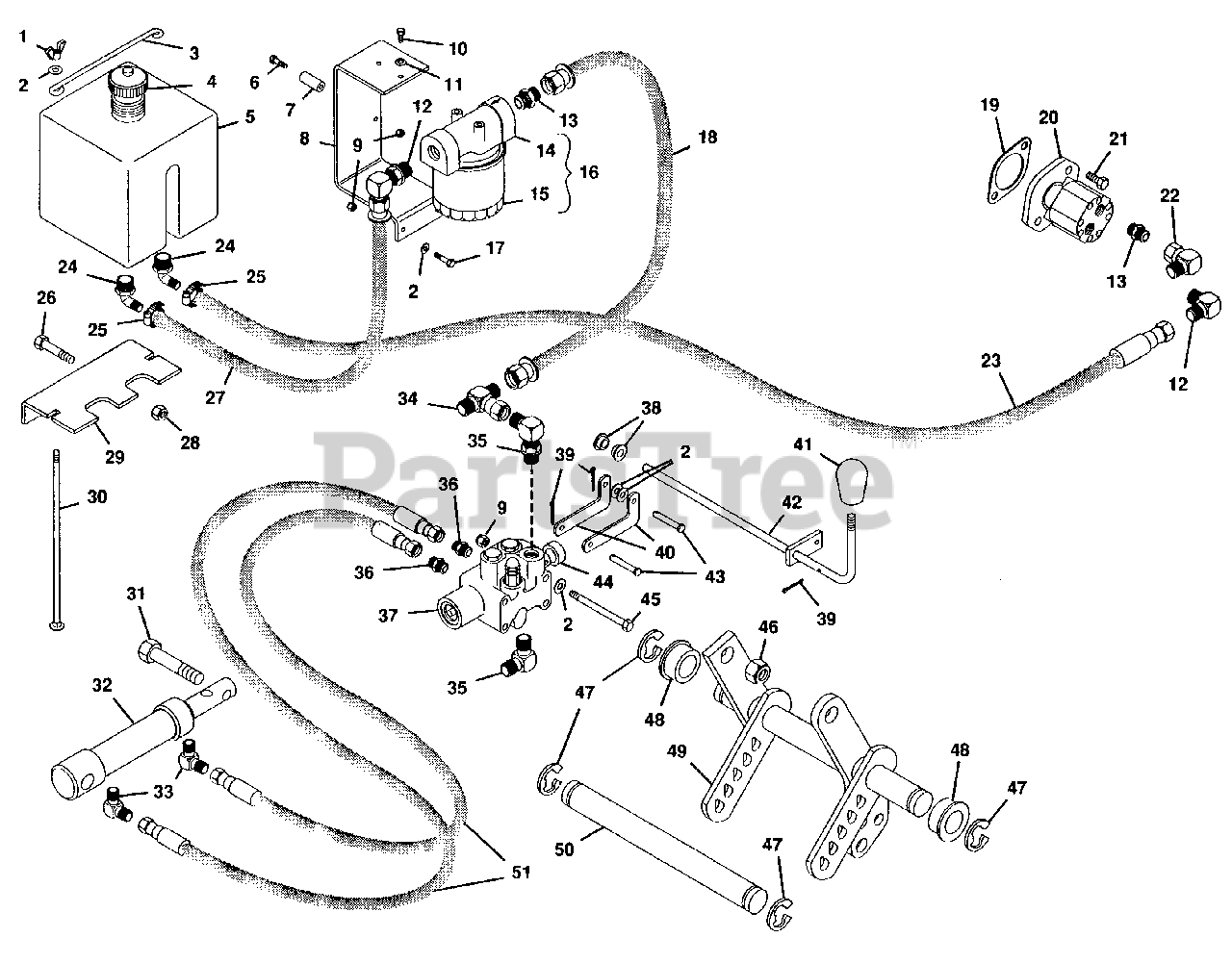

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 010413

NUT, WING 1/4-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 9

0

2

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

3

Gravely 045870

ROD, OIL TANK HOLD-DOWN
(Superseded to 08656700)

$

$

Not available

4

Gravely 044877

CAP, TANK
(Superseded to 08826200)

$21.99

$

Usually ships in 4-12 days

0

5

Gravely 045270

TANK, HYDRAULIC
(Superseded to 58701500)

$

$

Not available

6

Gravely 180042

BOLT, HEX 1/4-20X1.75
(Superseded to 05964700)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 050985

BUSHING, TANK SUPPORT
(Superseded to 08735900)

$

$

Not available

8

Gravely 050964

BRACKET, OIL FILTER MOUNTING
(Superseded to 08788300)

$

$

Not available

9

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

10

Gravely 180018

BOLT, HEX 1/4-20X.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

11

Gravely 120380

WASHER, LOCK 1/4 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

12

Gravely 050961

ADAPTOR, P-H #2503-8-8
(Superseded to 07018200)

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 023206

ADAPTOR, 0503-8-6
(Superseded to 07021400)

$28.99

$

Usually ships in 4-12 days

0

14

Gravely 050967

BASE, FILTER
(Superseded to 08788600)

$

$

Not available

15

Gravely 050968

ELEMENT
(Superseded to 08841800)

$39.99

$

Usually ships in 4-12 days

0

16

Gravely 050966

FILTER, SPIN-ON LUBE
(Superseded to 08788500)

$

$

Not available

17

Gravely 180020

BOLT, HEX 1/4-20X.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

18

Gravely 050970

HOSE, HYDRAULIC VALVE TO FILTER
(Superseded to 08788800)

$

$

Not available

19

Gravely 018422

GASKET, COVER PLATE
(Superseded to 08702700)

$15.99

$

In Stock, only 2 left!

0

20

Gravely 050960

PUMP, HYDRAULIC 24-G
(Superseded to 08788100)

$

$

Not available

21

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

22

Gravely 018818

ADAPTOR(P-H #3903-6-6)
(Superseded to 08901000)

Note: (P-H #3903-6-6)

$20.99

$

Usually ships in 4-12 days

0

23

Gravely 046118

HOSE, TANK TO PUMP
(Superseded to 08776300)

$

$

Not available

24

Gravely 046116

FITTING MALE ELBOW 1/2X1/2
(Superseded to 07019800)

$

$

Not available

25

Gravely 021247

CLAMP, .88 DIA. HOSE
(Superseded to 06923500)

$1.99

$

Usually ships in 4-12 days

0

26

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

27

Gravely 050969

HOSE, OIL FILTER TO TANK
(Superseded to 08788700)

$

$

Not available

28

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

29

Gravely 050963

SUPPORT, HYDRAULIC OIL TANK
(Superseded to 08788200)

$

$

Not available

30

Gravely 126932

BOLT, 1/4-20X8.00 RD HD SQ NK
(Superseded to 06218800)

$

$

Not available

31

Gravely 180181

BOLT, HEX 1/2-13X2.00
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

32

Gravely 031284

CYLINDER, HYDRAULIC
(Superseded to 08727500)

$

$

Not available

33

Gravely 018826

ADAPTOR(P-H #2503-4-4)
(Superseded to 08800700)

Note: (P-H #2503-4-4)

$22.99

$

Usually ships in 4-12 days

0

34

Gravely 046117

ADAPTER, T. FLEX
(Superseded to 07019900)

Note: (Used Only On Model(s): 6600-6-6).

$

$

Not available

35

Gravely 018828

ADAPTOR(P-H #2503-6-6)
(Superseded to 00313270)

Note: (P-H #2503-6-6)

$9.49

$

In Stock, only 1 left!

0

36

Gravely 021286

ADAPTOR(P-H #0503-4-4)
(Superseded to 08801500)

Note: (P-H #0503-4-4)

$5.99

$

Usually ships in 4-12 days

0

37

Gravely 018825

VALVE, HYDRAULIC
(Superseded to 08901100)

$

$

Not available

38

Gravely 047193

BUSH., FLG. .520X.750X.375 NY.
(Superseded to 05517800)

$

$

Not available

39

Gravely 121222

PIN, COTTER .094X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

40

Gravely 041237

ROD, HYDRAULIC CONTROL
(Superseded to 09065000)

$7.99

$

Usually ships in 4-12 days

0

41

Gravely 032659

KNOB, PTO
(Superseded to 07522900)

$21.99

$

Usually ships in 4-12 days

0

42

Gravely 047191

WELDMENT, HYDRAULIC VALVE ROD
(Superseded to 08780100)

$

$

Not available

43

Gravely 040970

PIN, CLEVIS
(Superseded to 06810100)

$2.99

$

Usually ships in 4-12 days

0

44

Gravely 048587

BUSH., ST. .700X1.00X.300 STL.
(Superseded to 08984500)

$

$

Not available

45

Gravely 180050

BOLT, HEX 1/4-20X2.75
(Superseded to 05969900)

$

$

Not available

46

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

47

Gravely 011112

E-RING, 1.000 SHAFT
(Superseded to 05716000)

$3.99

$

In Stock, only 4 left!

0

48

Gravely 018355

BUSH., FLG. 1.03X1.75X.750 NY.
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

49

Gravely 045859

WELDMENT, LIFT LEVER SHAFT
(Superseded to 08771600)

$

$

Not available

50

Gravely 045860

SHAFT, HYDRAULIC CYLINDER
(Superseded to 08771700)

$

$

Not available

51

Gravely 018845

HOSE, HYDRAULIC 14.5
(Superseded to 08709000)

$34.99

$

Usually ships in 4-12 days

0

NS

Gravely 047691

SEALANT, PLASTIC THREAD

$

$

Not available
