987022 (8123) - Gravely Lawn Tractor, 12hp, With Hydraulic Lift (SN: 000101 & Above) HYDRAULIC SYSTEM Parts Diagram

Lawn Tractor, 12hp, With Hydraulic Lift

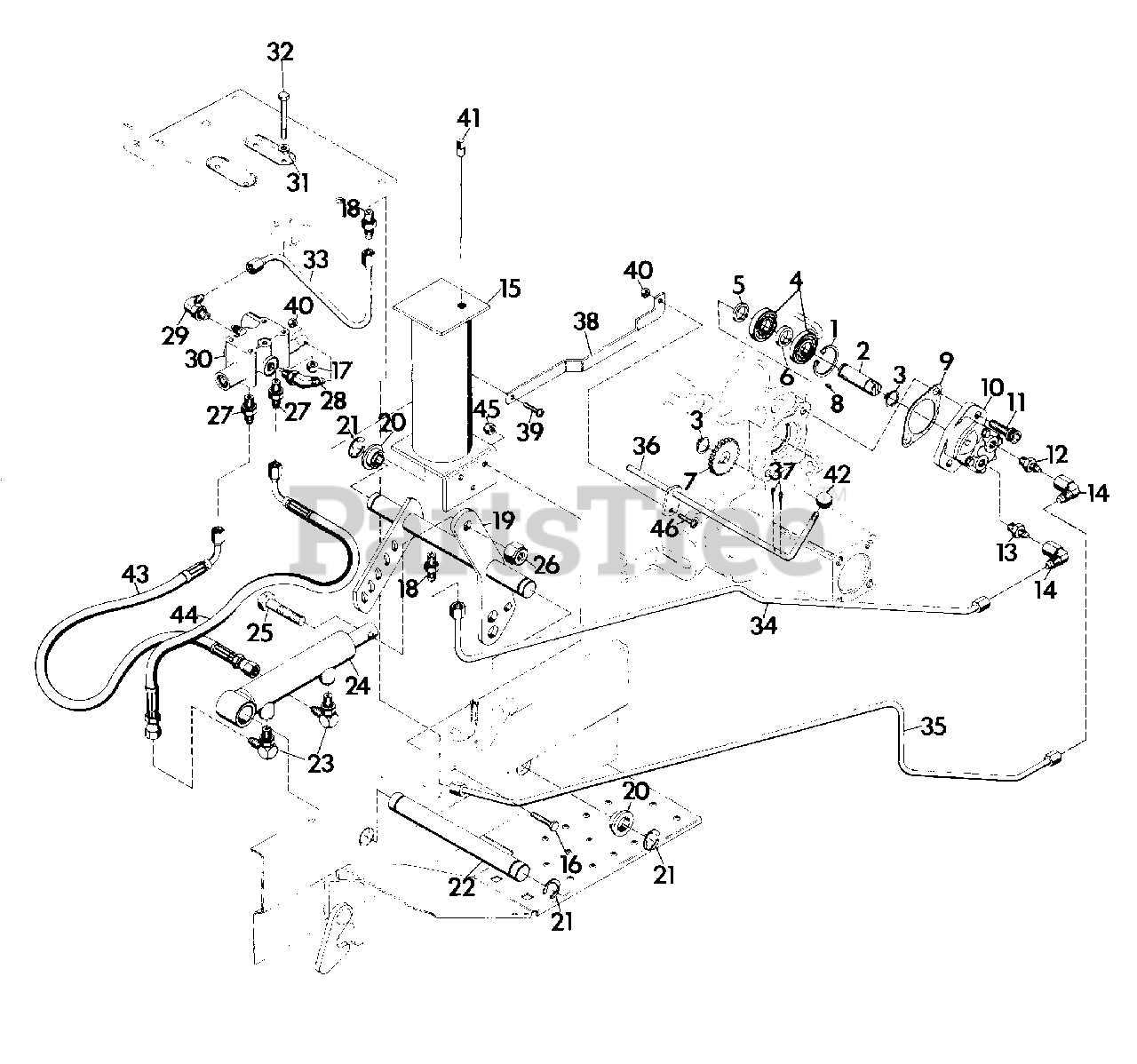

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 018799

RG-RTNG-INT 1.375X.050
(Superseded to 05705500)

$

$

Not available

2

Gravely 018797

SHFT,HYD PUMP
(Superseded to 08787300)

$

$

Not available

3

Gravely 018809

RG-RTNG-EXT .550X.035
(Superseded to 05712800)

$

$

Not available

4

Gravely 012626

BRG-BALL .590X1.38X.433
(Superseded to 05429000)

$

$

Not available

5

Gravely 018807

BUSH.,S.620X.750X.276 ST
(Superseded to 08730600)

$

$

Not available

6

Gravely 018798

BUSH.,S.620X.750X.364 ST
(Superseded to 08729000)

$

$

Not available

7

Gravely 018808

GR,HYD PUMP
(Superseded to 08708500)

$

$

Not available

8

Gravely 271089

KEY-WDRF .13X.38 HRD
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 018422

GSKT,COVER PLATE
(Superseded to 08702700)

$16.99

$

In Stock, only 1 left!

0

10

Gravely 018813

PUMP,HYDRAULIC
(Superseded to 08900900)

$

$

Not available

11

Gravely 426370

SCR-CAP .38-16 HEX S/HD
(Superseded to 05933300)

$

$

Not available

12

Gravely 023206

FTG-ADPTR (0503-8-6)
(Superseded to 07021400)

$28.99

$

Usually ships in 4-12 days

0

13

Gravely 018817

ADPT 0503-10-6
(Superseded to 21121800)

Note: (P-H #0503-10-6)

$23.99

$

Usually ships in 4-12 days

0

14

Gravely 018818

ADPT 3903-6-6
(Superseded to 08901000)

Note: (P-H #3903-6-6)

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 022460

WLDMT,HYD TANK
(Superseded to 21361000)

$

$

Not available

16

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

18

Gravely 019167

ADPT-PIPE (0503-6-6)
(Superseded to 07017500)

Note: (P-H #0503-6-6)

$12.99

$

In Stock, only 2 left!

0

19

Gravely 018822

WLDMT,LIFT LVR SHFT
(Superseded to 08708700)

$

$

Not available

20

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

21

Gravely 011112

RG-RTNG-EXT .835X.056
(Superseded to 05716000)

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 018830

SHFT,HYD. CYL.
(Superseded to 08708900)

$

$

Not available

23

Gravely 018826

ADPT 2503-4-4
(Superseded to 08800700)

Note: (P-H #2503-4-4)

$25.99

$

Usually ships in 4-12 days

0

24

Gravely 031284

CYL,HYD.
(Superseded to 08727500)

$

$

Not available

25

Gravely 180181

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 2 left!

0

26

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

27

Gravely 021286

ADPT 0503-4-4
(Superseded to 08801500)

Note: (P-H #0503-4-4)

$6.49

$

Usually ships in 4-12 days

0

28

Gravely 018829

FTG,HYD 45DEG M6O-M6J
(Superseded to 08901200)

Note: (P-H #3503-6-6)

$21.99

$

Usually ships in 4-12 days

0

29

Gravely 018828

FTG, 90 9/16 MOR X 9/16 MJIC
(Superseded to 00313270)

Note: (P-H #2503-6-6)

$9.99

$

Usually ships in 4-12 days

0

30

Gravely 018825

VLV,HYDRAULIC
(Superseded to 08901100)

$

$

Not available

31

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 180050

BLT-HEX .25-20X2.75 GR5 YWZC
(Superseded to 05969900)

$

$

Not available

33

Gravely 019165

LINE,RETURN VLV TO TANK
(Superseded to 20274600)

$

$

Not available

34

Gravely 034815

LINE,HYD IN CONS
(Superseded to 20611300)

Note: (IN) TANK TO PUMP CONS.

$

$

Not available

34

Gravely 034817

LINE,HYD IN PRO
(Superseded to 20611500)

Note: (IN) TANK TO PUMP PROF.

$

$

Not available

35

Gravely 034816

LINE,HYD OUT CONS
(Superseded to 20611400)

Note: (OUT) VALVE TO PUMP CONS.

$

$

Not available

35

Gravely 034818

LINE,HYD OUT PRO
(Superseded to 20611600)

Note: (OUT) VALVE TO PUMP PROF.

$

$

Not available

36

Gravely 018833

ROD,WELDMENT HYD VALVE
(Superseded to 20267800)

$

$

Not available

37

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

38

Gravely 018836

ROD,HYD CONTROL
(Superseded to 20268000)

$

$

Not available

38

Gravely 031303

ROD,HYD, CONTROL
(Superseded to 20551100)

$

$

Not available

39

Gravely 132848

SCR-MCH 10-24X1.00 RDHD
(Superseded to 06112700)

$

$

Not available

40

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 022457

GA,HYD TANK LEVEL
(Superseded to 08801900)

$

$

Not available

42

Gravely 011261

KNOB,ADJ. CONTROL
(Superseded to 20069800)

$23.99

$

Usually ships in 4-12 days

0

43

Gravely 039337

HOSE,HYD 12.5
(Superseded to 20660400)

$

$

Not available

44

Gravely 039338

HOSE,HYD 9.5
(Superseded to 20660500)

$

$

Not available

45

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

46

Gravely 120910

SCR-MCH 10-24X.75 RDHD
(Superseded to 06112500)

$

$

Not available
