987031 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

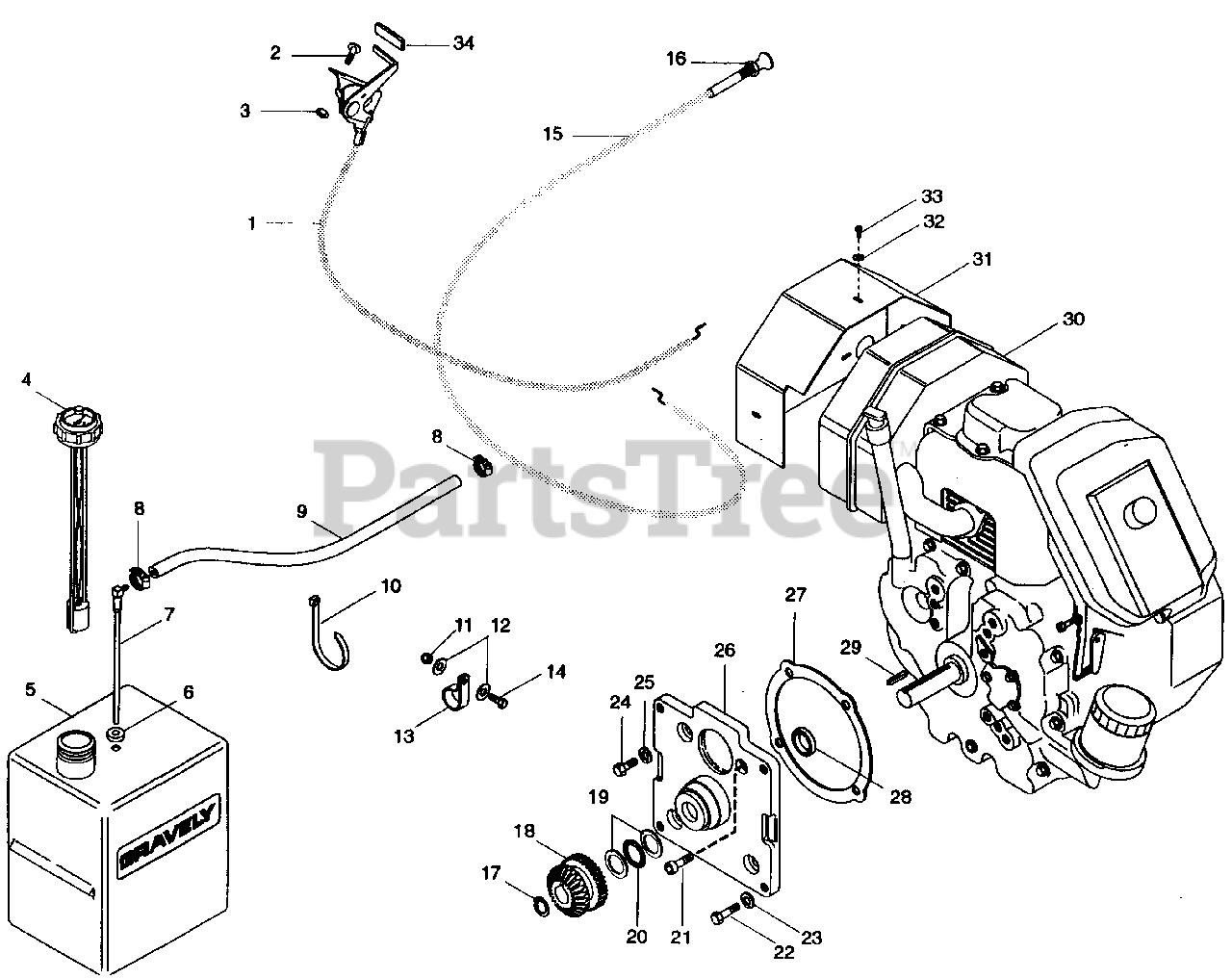

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 069256

THROTTLE CABLE
(Superseded to 06941300)

$52.99

$

In Stock, only 2 left!

0

2

Gravely 160046

SCR-MCH 10-32 X .50 PH D
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 065028

NUT-LK 10-32 NY PL
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

4

Gravely 047615

GA, FUEL
(Superseded to 08983200)

$47.99

$

In Stock, only 1 left!

0

5

Gravely 047612

TANK, FUEL
(Superseded to 08983000)

$

$

Not available

6

Gravely 050246

BUSHING
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 047615

FTG, TANK
(Superseded to 08983200)

$47.99

$

In Stock, only 1 left!

0

8

Gravely 032045

CLAMP-HOSE
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 021134

GAS LINE-BULK
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 010629

TIE CABLE
(Superseded to 07517300)

$

$

Not available

11

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 120393

WSHR-FL-STL .344 X .688 X .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

13

Gravely 035313

CABLE CLAMP
(Superseded to 03334000)

$

$

Not available

14

Gravely 180079

BLT-HEX .31-18 X 1.00 PL GR 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

15

Gravely 040133

CONTROL, CHOKE
(Superseded to 06926200)

$

$

Not available

16

Gravely 124925

NUT-JAM .375-24 PL
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

17

Gravely 018344

RG-RTNG-INT 1.249 X .050
(Superseded to 05712600)

$1.99

$

Usually ships in 4-12 days

0

18

Gravely 051321

INPUT GEAR
(Superseded to 08790200)

$323.99

$

Usually ships in 4-12 days

0

19

Gravely 040758

WSHR-THRST 1.125 X 1.750 X .123
(Superseded to 06434200)

$20.99

$

Usually ships in 4-12 days

0

20

Gravely 018341

BRG-N-THRST 1.74 X 1.127 X .078
(Superseded to 05421000)

$10.99

$

In Stock, only 4 left!

0

21

Gravely 421648

SCR-SKH .44-14 X 1.00
(Superseded to 05933000)

$

$

Not available

22

Gravely 180175

BLT-HEX .50-13 X 1.25 PL GR 5
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 120384

WSHR-LOCK .50 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

24

Gravely 180146

BLT-HEX .44-14 X 1.125
(Superseded to 05963800)

$2.99

$

In Stock, only 1 left!

0

25

Gravely 131100

WSHR-LOCK .438 X .133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 050126

ADPT, ENGINE
(Superseded to 08785400)

$

$

Not available

27

Gravely 018340

GSKT, ADAPTER
(Superseded to 08900100)

$8.99

$

In Stock, Qty 9

0

28

Gravely 018517

SEAL 1.125 X 1.628 X .250
(Superseded to 05615100)

$9.99

$

Usually ships in 4-12 days

0

29

Gravely 018345

KEY, SQ .248 X 1.25 X .248
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 050129

ENG, 14-HP KOHLER, PS-1810

$

$

Not available

31

Gravely 051002

WLDMT, HEAT SHIELD
(Superseded to 08790000)

$102.99

$

Usually ships in 4-12 days

0

32

Gravely 120391

WSHR-FL-STL .219 X .500 X .049 PL
(Superseded to 06409200)

$

$

Not available

33

Gravely 046419

SCR-DR 8-18 X .50
(Superseded to 07408900)

$

$

Not available

34

Gravely 075215

GRIP
(Superseded to 07521500)

$3.49

$

Usually ships in 4-12 days

0
