987031 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) NUMBER FIVE SHAFT - 1ST AND 2ND GEAR Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

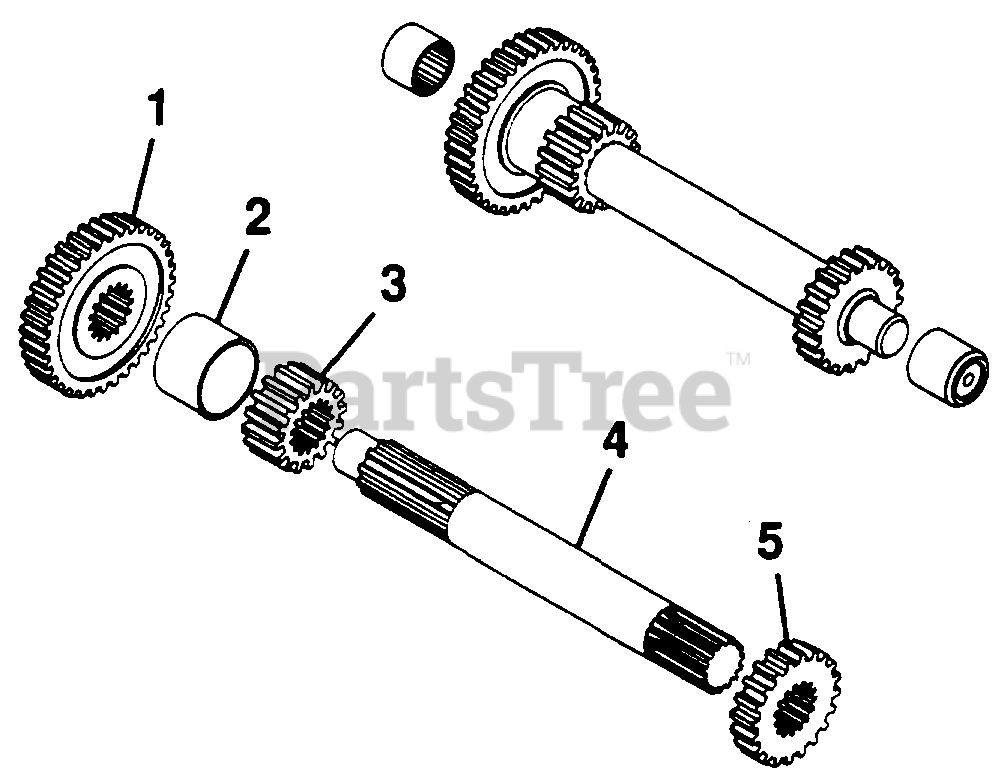

NUMBER FIVE SHAFT - 1ST AND 2ND GEAR Parts Diagram

  • Title

1

Gravely 015115

GEAR, 10 DP 30 TEETH X .500
(Superseded to 08701300)

$

$

Not available

2

Gravely 017993

SPACER, 1.027X1.125X.550
(Superseded to 08728900)

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 017992

GEAR, 10 DP 16 TEETH X.750
(Superseded to 08704600)

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 017989

SHAFT, SPLINED
(Superseded to 08704500)

$11.99

$

Usually ships in 4-12 days

0

5

Gravely 015118

GEAR, 10 DP 20 TEETH X .600
(Superseded to 08701400)

$

$

Not available
