987054 - Gravely Lawn Tractor (SN: 000101 & Above) NUMBER NINE SHAFT - PTO CLUTCH Parts Diagram

Lawn Tractor

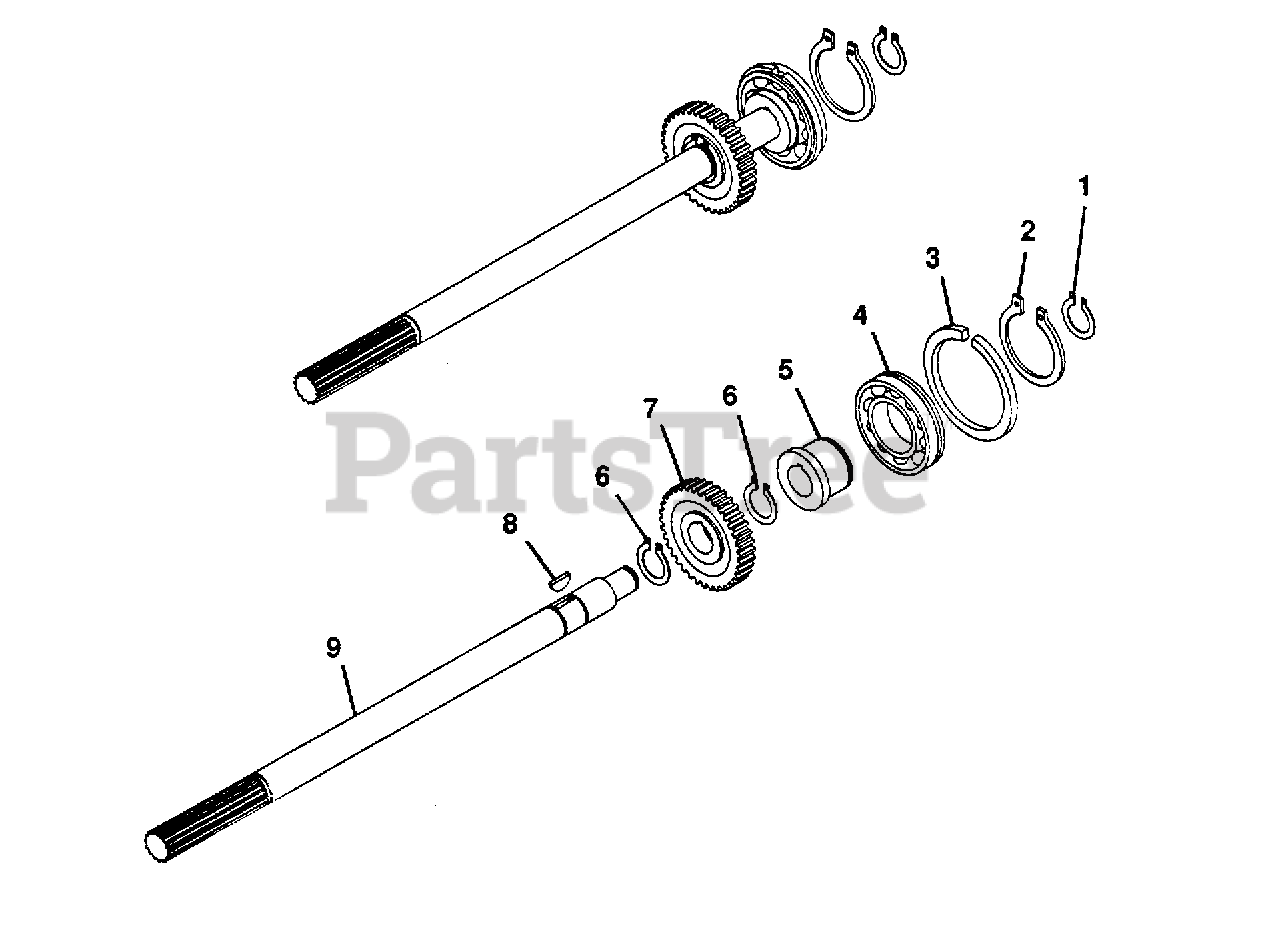

NUMBER NINE SHAFT - PTO CLUTCH Parts Diagram

  • Title

1

Gravely 011135

SNAP RING, .750 X .042 EXT
(Superseded to 05700135)

$2.99

$

In Stock, only 2 left!

0

2

Gravely 023523

RG-RTNG-EXT 1.272X.050
(Superseded to 05714300)

$

$

Not available

3

Gravely 017966

RG-RTNG-EXT 1.380X1.304
(Superseded to 05712200)

$

$

Not available

4

Gravely 017967

BRG-BALL 1.38X2.44X.55
(Superseded to 05420700)

$

$

Not available

5

Gravely 035491

ADPT,PTO BEARING
(Superseded to 08737700)

$

$

Not available

6

Gravely 021557

RG-RTNG-EXT .984X.042
(Superseded to 05713600)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 035441

GR,PTO CROSS SHAFT
(Superseded to 08737600)

$

$

Not available

8

Gravely 124549

KEY-WDRF .19X.75 HRD #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 042635

SHFT,PTO
(Superseded to 08760100)

$

$

Not available
