987059 - Gravely Lawn Tractor, 14hp, With Hydraulic Lift (SN: 000101 & Above) REAR DECK AND SEAT Parts Diagram

Lawn Tractor, 14hp, With Hydraulic Lift

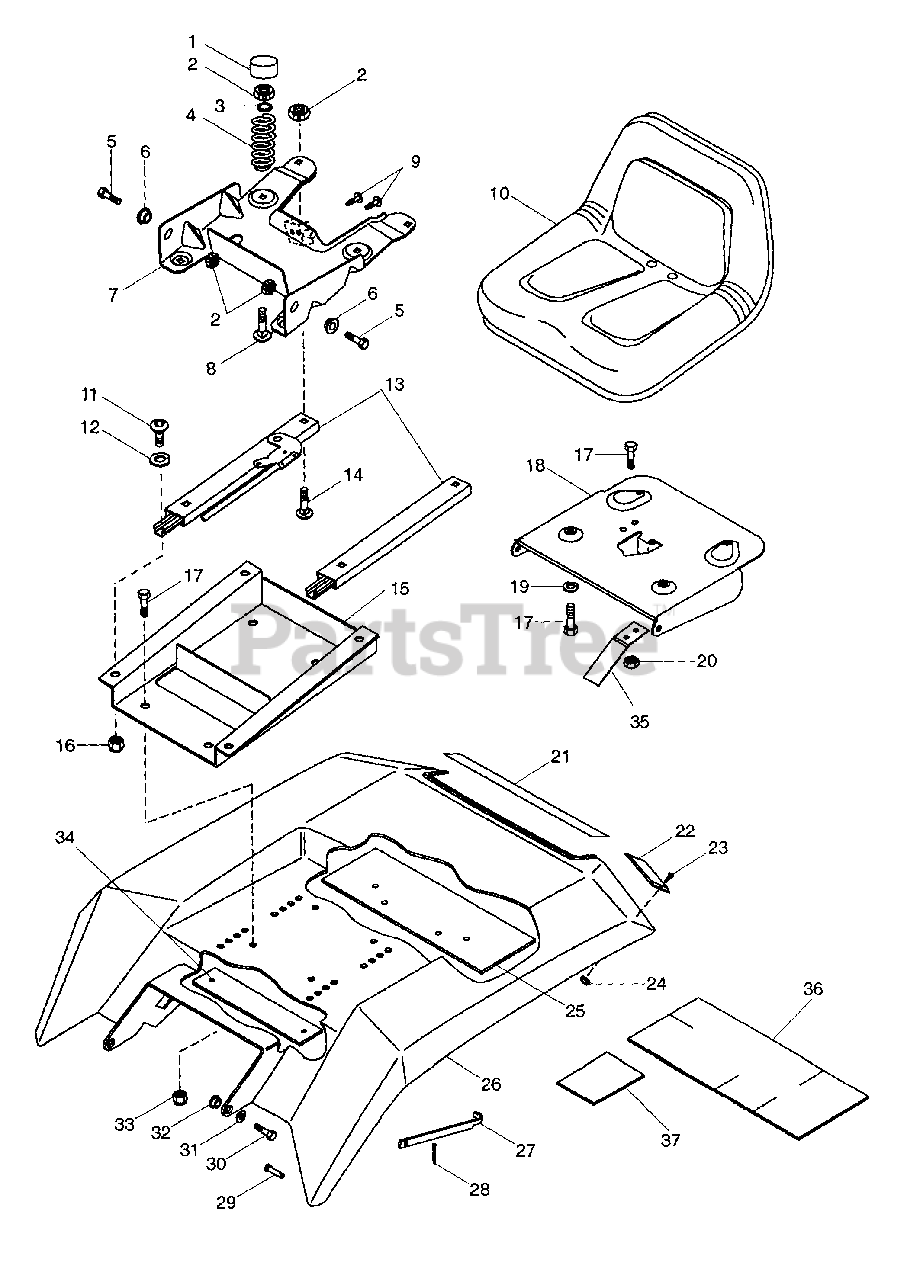

REAR DECK AND SEAT Parts Diagram

  • Title

1

Gravely 075216

TUBE CAP
(Superseded to 07521600)

$1.99

$

Usually ships in 4-12 days

0

2

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 064123

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 083282

SG-COMP .148X1.23X2.41 WLD87
(Superseded to 08328200)

$16.99

$

In Stock, only 2 left!

0

5

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 055162

BSHG-FLG .325X.465X.333X.685
(Superseded to 05516200)

$

$

Not available

7

Gravely 036181

BOX, SEAT
(Superseded to 03618100)

$

$

Not available

8

Gravely 062041

BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 18

0

9

Gravely 074045

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07411900)

$2.49

$

In Stock, Qty 12

0

10

Gravely 091124

SEAT, V-560 HIGH BACK
(Superseded to 09112400)

$

$

Not available

11

Gravely 039062

SCR-CAP BTHD.31-18X.50 GR5 YZ
(Superseded to 07008100)

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 063032

WSHR-LK-EXT .313X.030 PL
(Superseded to 06303200)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 036008

SEAT SLIDES -(RAME TAK-3010-4)
(Superseded to 03600800)

$

$

Not available

14

Gravely 062033

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 087641

SEAT SUPPORT
(Superseded to 08764100)

$

$

Not available

16

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

17

Gravely 059022

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 036191

NUT-HEX 10-24 YWZC
(Superseded to 06536600)

$0.99

$

In Stock, only 3 left!

0

19

Gravely 063003

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06307400)

$0.99

$

In Stock, Qty 8

0

20

Gravely 065078

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 044070

IPL,16-HP MAGNUM

$

$

Not available

22

Gravely 051329

REFLECTOR
(Superseded to 07536500)

$23.99

$

Usually ships in 4-12 days

0

23

Gravely 160046

SCR-MCH 10-32X.50 PHD
(Superseded to 06113300)

$2.99

$

Usually ships in 4-12 days

0

24

Gravely 411893

NUT-LK 10-32 NY YWZC
(Superseded to 06539200)

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 051601

BRKT,SEAT SUPPORT
(Superseded to 08790900)

$34.99

$

Usually ships in 4-12 days

0

26

Gravely 040453

WLDMT,SEAT PAN NOTCHED
(Superseded to 08748500)

$

$

Not available

27

Gravely 024996

STRAP,FENDER HOLD-UP
(Superseded to 08727200)

$26.99

$

Usually ships in 4-12 days

0

28

Gravely 121223

PIN-CTR .06X.75 EXTPRSQCT YWZ
(Superseded to 06707500)

$0.99

$

In Stock, only 1 left!

0

29

Gravely 018420

PIN-CLEV .250X.406
(Superseded to 06809700)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 024815

BSHG-FLG .406X.88X.270X.140
(Superseded to 05515800)

$9.99

$

In Stock, Qty 15

0

33

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 051278

BRKT,SEAT
(Superseded to 09004051)

$

$

Not available

35

Gravely 036167

FRAME W/DECALS

$

$

Not available

36

Gravely 08798800

HEAT SHIELD 30.5X14

$

$

Not available

37

Gravely 08798900

HEAT SHIELD 12X9

$

$

Not available
