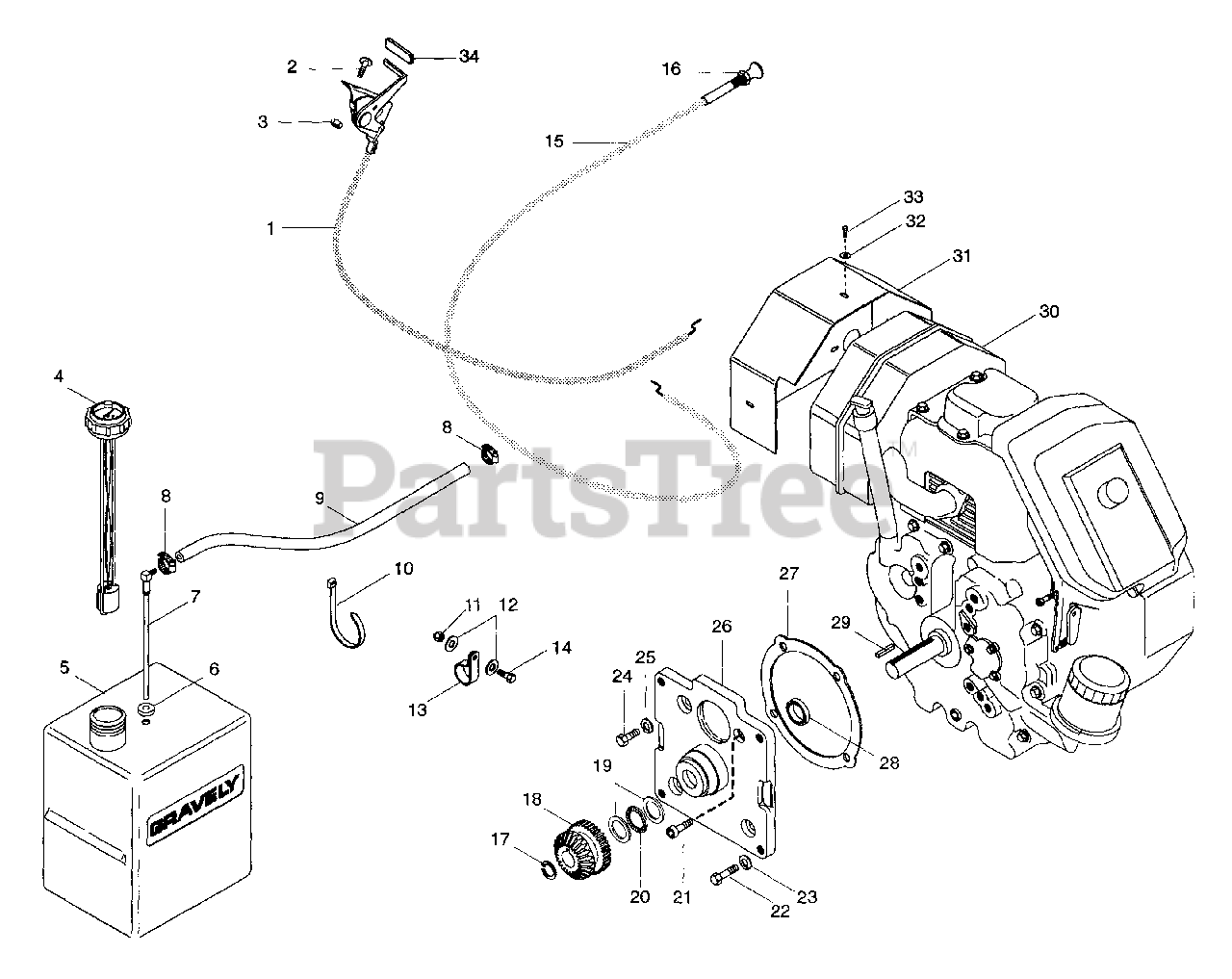

987061 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM - KOHLER UNITS 14 H.P. Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

FUEL AND EXHAUST SYSTEM - KOHLER UNITS 14 H.P. Parts Diagram

  • Title

1

Gravely 069256

CABLE, THROTTLE
(Superseded to 06941300)

$54.99

$

Usually ships in 4-12 days

0

2

Gravely 160046

SCR-MCH 10-32X.50 PHD
(Superseded to 06113300)

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 065028

NUT-LK 10-32 NY YWZC
(Superseded to 06539200)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 047615

GAUGE,FUEL
(Superseded to 08983200)

$

$

Not available

5

Gravely 047612

TANK,FUEL
(Superseded to 08983000)

$

$

Not available

6

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 047615

GAUGE,FUEL
(Superseded to 08983200)

$

$

Not available

8

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

9

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 010629

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

11

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

12

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 035313

CABLE CLAMP
(Superseded to 03334000)

$

$

Not available

14

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 040133

CONTROL,CHOKE
(Superseded to 06926200)

$

$

Not available

16

Gravely 124925

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 018344

RG-RTNG-INT 1.249X.050
(Superseded to 05712600)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 018343

GR,SPUR & BEVEL (INPUT)
(Superseded to 08790200)

$329.99

$

Usually ships in 4-12 days

0

19

Gravely 040758

WSHR-THRST 1.125X1.750X.1245
(Superseded to 06434200)

$21.99

$

Usually ships in 4-12 days

0

20

Gravely 018341

BRG-N-THRST 1.74X1.127X.078
(Superseded to 05421000)

$10.99

$

Usually ships in 4-12 days

0

21

Gravely 421648

SCR-SKH .44-14X1.00
(Superseded to 05933000)

$

$

Not available

22

Gravely 180175

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

23

Gravely 120384

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 180146

BLT-HEX .44-14X1.25 GR5 YWZC
(Superseded to 05963800)

$2.99

$

In Stock, only 1 left!

0

25

Gravely 131100

WSHR-LK .438X.133 HVY YWZC
(Superseded to 06310700)

$3.49

$

In Stock, only 1 left!

0

26

Gravely 050126

ADPT,ENGINE
(Superseded to 08785400)

$

$

Not available

27

Gravely 018340

GSKT,ADAPTOR
(Superseded to 08900100)

$9.99

$

In Stock, Qty 6

0

28

Gravely 018517

SEAL 1.125X1.628X.250
(Superseded to 05615100)

$10.99

$

Usually ships in 4-12 days

0

29

Gravely 018345

KEY-SQ .248X1.25X.248
(Superseded to 06606900)

$2.99

$

In Stock, only 2 left!

0

30

Gravely 018343

GR,SPUR & BEVEL (INPUT)
(Superseded to 08790200)

$329.99

$

Usually ships in 4-12 days

0

31

Gravely 051002

WLDMT,HEAT SHIELD
(Superseded to 08790000)

$102.99

$

Usually ships in 4-12 days

0

32

Gravely 120391

WSHR-FL-STL .188X.438X.049 PL
(Superseded to 06409200)

$

$

Not available

33

Gravely 046419

SCR-DR 8-18X.50
(Superseded to 07408900)

$

$

Not available

34

Gravely 075215

GRIP
(Superseded to 07521500)

$

$

Not available
