987061 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) HOOD AND GRILLE Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

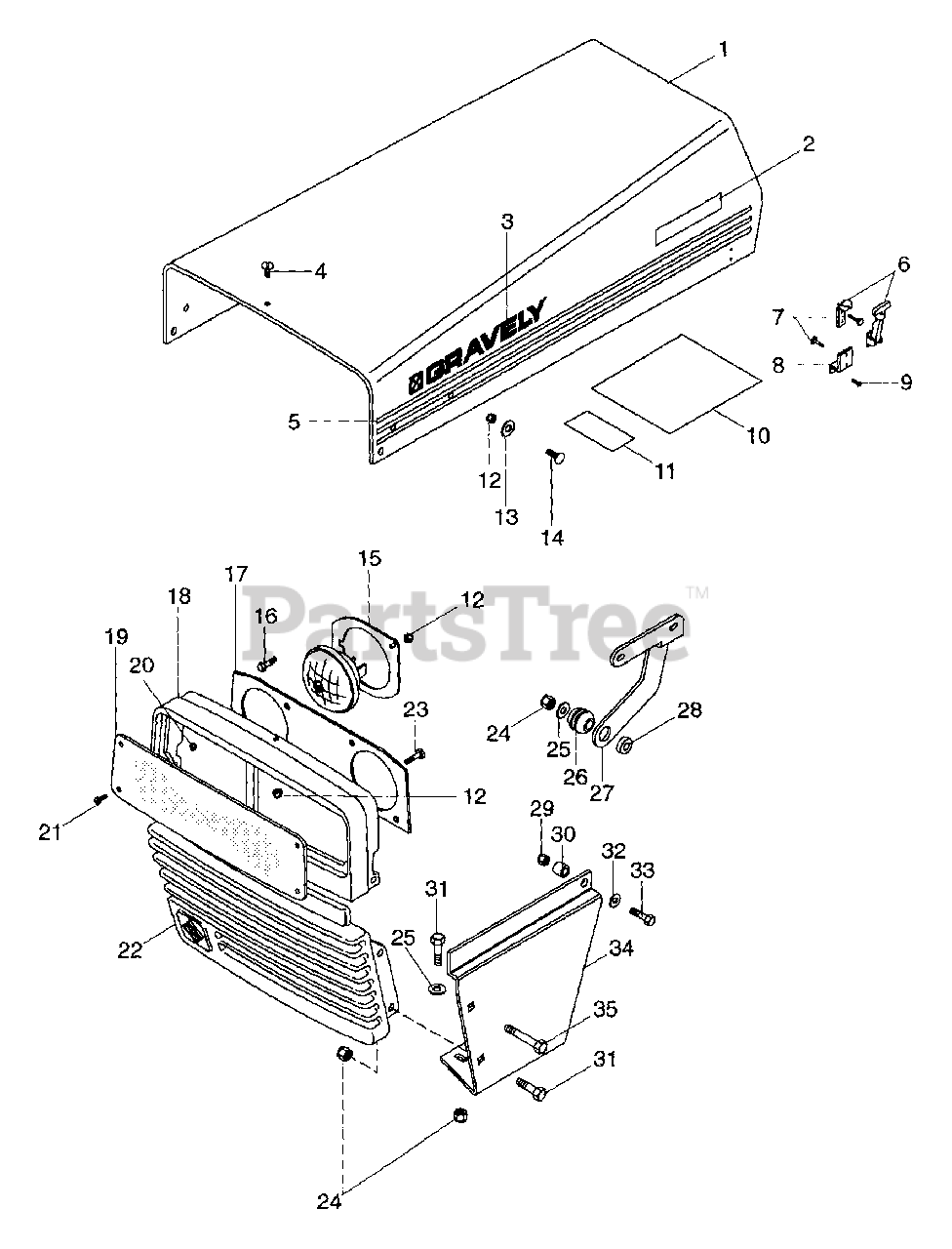

HOOD AND GRILLE Parts Diagram

  • Title

1

Gravely 043802

DECAL SET - HOOD G SERIES
(Superseded to 08658600)

$

$

Not available

2

Gravely 050275

DECAL,MODEL 14-G
(Superseded to 05215300)

Note: (058 & 059)

$

$

Not available

Gravely 043245

DECAL,MODEL 16-G
(Superseded to 05210900)

Note: (060, 061)

$

$

Not available

Gravely 043246

DECAL,MODEL 18-G
(Superseded to 05211000)

Note: (062)

$

$

Not available

Gravely 043247

DECAL,MODEL 20-G
(Superseded to 05211100)

Note: (063)

$

$

Not available

3

Gravely 043003

DECAL,GRAVELY LOGO
(Superseded to 05210700)

$

$

Not available

4

Gravely 160541

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 077038

GRAVELY NAME/LOGO/STRIPE DECAL
(Superseded to 07703800)

$

$

Not available

6

Gravely 035294

LATCH,FLEXIBLE
(Superseded to 08704700)

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 032661

RVT-STEEL
(Superseded to 06807500)

$

$

Not available

8

Gravely 039828

BRKT,HOOD LATCH MTG
(Superseded to 08744700)

$46.99

$

Usually ships in 4-12 days

0

9

Gravely 163158

SCR-MCH 8-18X.375 PHD C-REC
(Superseded to 06113700)

$

$

Not available

10

Gravely 040754

DECAL, G-SERIES MAINTENANCE
(Superseded to 07716800)

$

$

Not available

11

Gravely 011989

DECAL,E-SYSTEM WARNING
(Superseded to 05216700)

$10.99

$

Usually ships in 4-12 days

0

12

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

13

Gravely 422845

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 120518

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 039070

HEAD LIGHT RETAINER RING
(Superseded to 03115900)

$

$

Not available

16

Gravely 180022

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

17

Gravely 038672

PANEL,HEADLIGHT REFLECTOR
(Superseded to 03067000)

$

$

Not available

18

Gravely 038673

BEZEL,HEADLIGHT
(Superseded to 03066800)

$

$

Not available

19

Gravely 038671

PANEL,HEADLIGHT LENSE
(Superseded to 03066900)

$

$

Not available

20

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 159947

SCR-MCH 10-24X.75 PHD
(Superseded to 06111200)

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 039831

GRILL
(Superseded to 03493700)

$

$

Not available

23

Gravely 045207

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

25

Gravely 120388

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 035518

GROMMET
(Superseded to 07504200)

$6.49

$

Usually ships in 4-12 days

0

27

Gravely 039047

L.H. HOOD HINGE
(Superseded to 03118600)

$

$

Not available

Gravely 039049

R.H. HOOD HINGE
(Superseded to 03118500)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 036849

SPACER -FLANGED .390X.500X.781
(Superseded to 03114500)

$10.99

$

In Stock, Qty 12

0

29

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

30

Gravely 010908

Bushing, Sleeve .406 x 1.00 x 1.00
(Superseded to 08707800)

$91.99

$

Usually ships in 4-12 days

0

31

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 180085

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

34

Gravely 039836

PNL,SIDE L.H.
(Superseded to 08745000)

$13.99

$

Usually ships in 4-12 days

0

Gravely 039835

PNL,SIDE R.H.
(Superseded to 08744900)

$13.99

$

Usually ships in 4-12 days

0

35

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0
