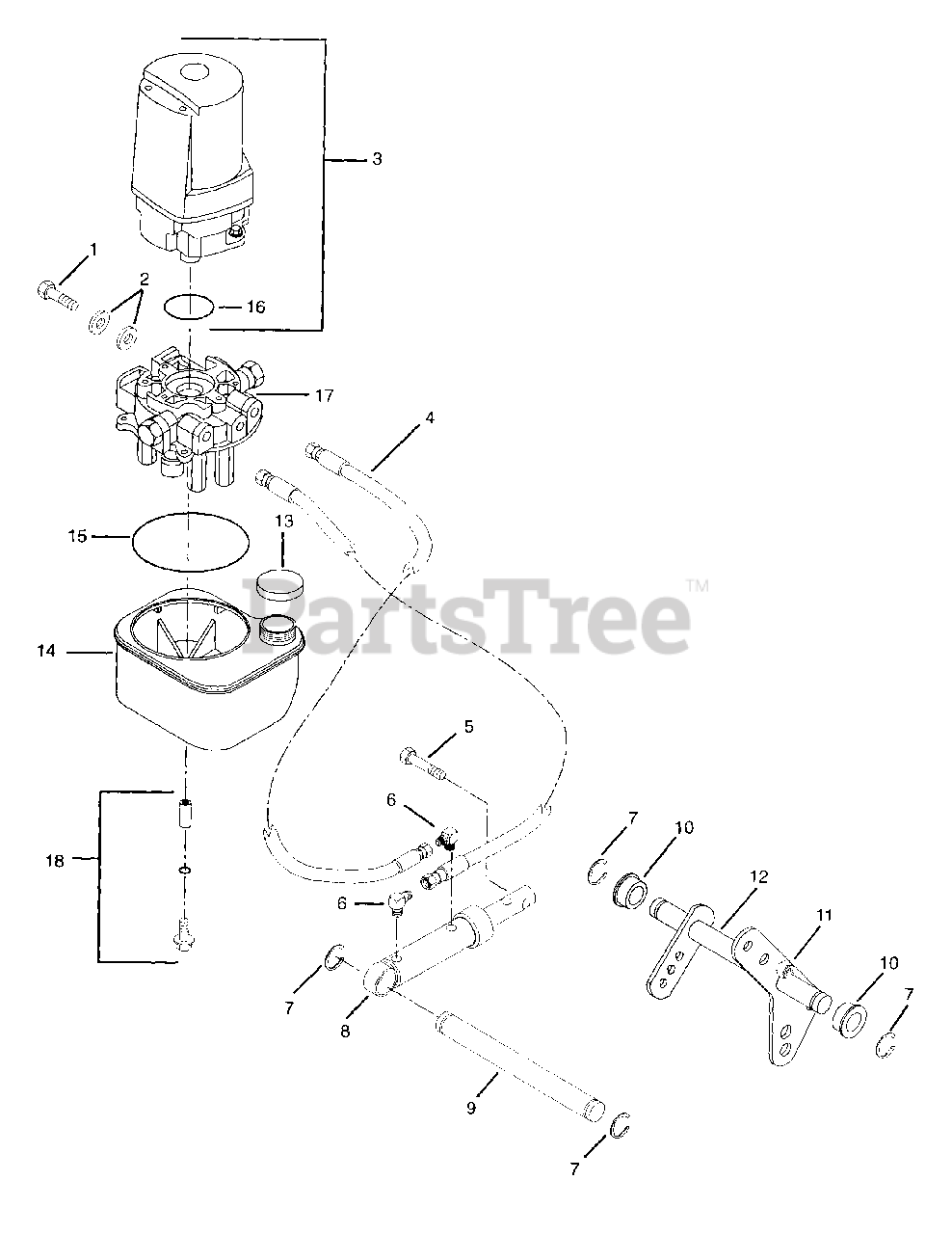

987061 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) HYDRAULIC SYSTEM Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 059004

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 038842

WSHR-FL-STL .390X.88X.18 YWZC
(Superseded to 06436800)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 215098

Motor Assembly

$

$

Not available

4

Gravely 092214

ASM, HOSE PUMP TO CYL
(Superseded to 09221400)

$42.99

$

Usually ships in 4-12 days

0

5

Gravely 180181

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 1 left!

0

6

Gravely 018826

ADPT 2503-4-4
(Superseded to 08800700)

$25.99

$

Usually ships in 4-12 days

0

7

Gravely 011112

RG-RTNG-EXT .835X.056
(Superseded to 05716000)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 031284

CYL,HYD.
(Superseded to 08727500)

$

$

Not available

9

Gravely 018830

SHFT,HYD. CYL.
(Superseded to 08708900)

$

$

Not available

10

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

11

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

12

Gravely 087576

MOWER LIFT WELDMENT
(Superseded to 08757600)

$

$

Not available

13

Gravely 200018

RESERVOIR CAP-ELEC/HYD PUMP
(Superseded to 20001800)

$

$

Not available

14

Gravely 214191

RESERVOIR TANK
(Superseded to 21419100)

$

$

Not available

15

Gravely 200014

RESERVOIR SEAL, O-RING
(Superseded to 20001400)

$15.99

$

Usually ships in 4-12 days

0

16

Gravely 215100

O-Ring

$

$

Not available

17

Gravely 215099

Adapter Assembly

$

$

Not available

18

Gravely 215101

Screw, O-Ring and Spacer Assembly

$

$

Not available

Gravely 215102

Seal O-Ring Kit

Note: Not shown

$

$

Not available
