987061 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) NUMBER FIVE SHAFT - 1ST AND 2ND GEAR Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

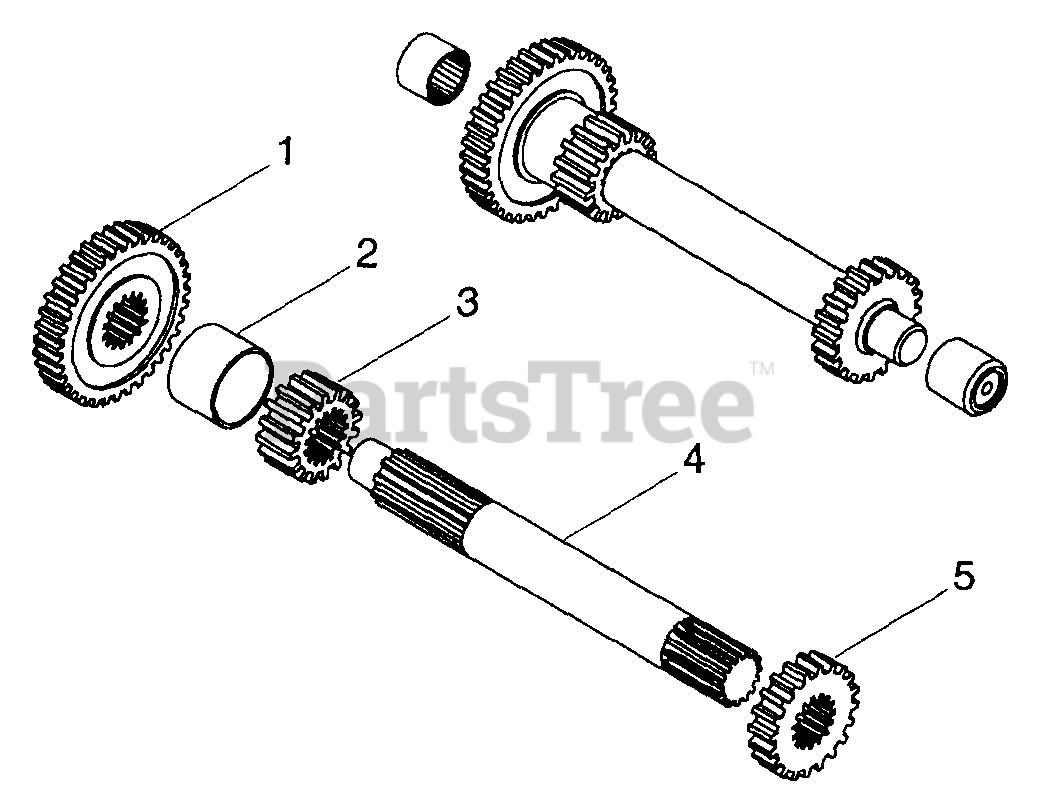

NUMBER FIVE SHAFT - 1ST AND 2ND GEAR Parts Diagram

  • Title

1

Gravely 015115

GR,10 DP 30 TEETH X .500
(Superseded to 08701300)

$

$

Not available

2

Gravely 017993

BSHG-SLV 1.03X1.13X1.13 ST
(Superseded to 08728900)

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 017992

GR,10 DP 16 TEETH X .750
(Superseded to 08704600)

$70.99

$

Usually ships in 4-12 days

0

4

Gravely 017989

SHFT,SPLINED
(Superseded to 08704500)

$11.99

$

Usually ships in 4-12 days

0

5

Gravely 015118

GR,10 DP 20 TEETH X .600
(Superseded to 08701400)

$

$

Not available
