987061 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) NUMBER THIRTEEN - TRANSMISSION COVER ASSEMBLY Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

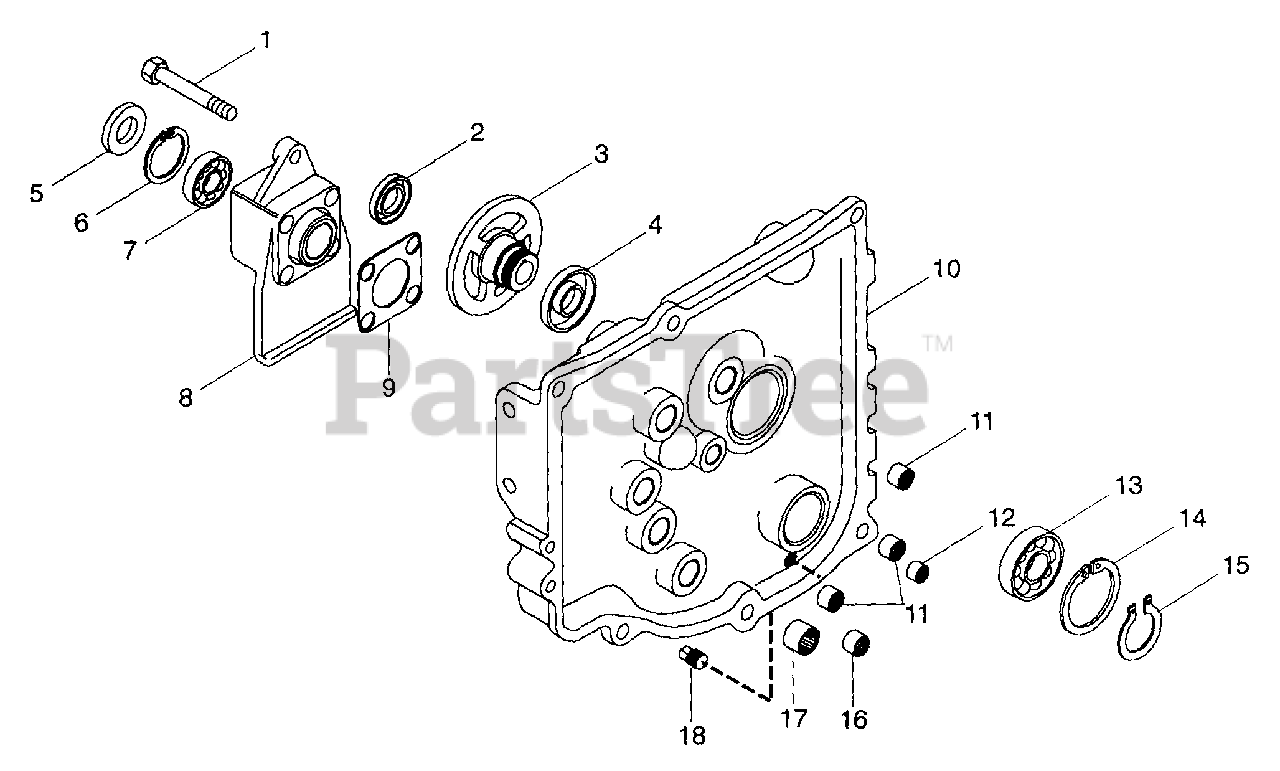

NUMBER THIRTEEN - TRANSMISSION COVER ASSEMBLY Parts Diagram

  • Title

1

Gravely 180191

BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 20+

0

2

Gravely 018035

SEAL .750X1.625X.250
(Superseded to 05614600)

$13.99

$

In Stock, only 2 left!

0

3

Gravely 050604

HUB,CLUTCH
(Superseded to 08786900)

$303.99

$

Usually ships in 4-12 days

0

4

Gravely 046323

SEAL-LIP 2.25X3.25X.38
(Superseded to 05617600)

$27.99

$

Usually ships in 4-12 days

0

5

Gravely 051096

SEAL 1.250X2.250X.500
(Superseded to 05618200)

$22.99

$

In Stock, only 4 left!

0

6

Gravely 018812

RG-RTNG-INT 2.490X.078
(Superseded to 05712900)

$6.49

$

Usually ships in 4-12 days

0

7

Gravely 050473

BRG-BALL 1.25X2.25X.50
(Superseded to 05426600)

$41.99

$

Usually ships in 4-12 days

0

8

Gravely 046061

AXLE BRG RTNR
(Superseded to 08775300)

$

$

Not available

9

Gravely 018030

GSKT,
(Superseded to 08701800)

$7.99

$

In Stock, Qty 7

0

10

Gravely 050117

ASM,TRANSMISSION COVER
(Superseded to 08785100)

$

$

Not available

11

Gravely 017913

BRG-NEEDLE .750X1.0X.75
(Superseded to 05420100)

$23.99

$

Usually ships in 4-12 days

0

12

Gravely 017914

BRG-NEEDLE .625X.812X.75
(Superseded to 05420200)

$9.99

$

Usually ships in 4-12 days

0

13

Gravely 046321

BRG-BALL 1.97X3.54X.79
(Superseded to 05426300)

$59.99

$

Usually ships in 4-12 days

0

14

Gravely 046322

RG-RTNG-INT 3.540X.109
(Superseded to 05715400)

$

$

Not available

15

Gravely 017919

RG-RTNG-EXT 1.819X.062
(Superseded to 05712100)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 011063

BRG-NEEDLE .750X1.0X.75
(Superseded to 05427500)

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 017912

BRG-NEEDLE 1.0X1.25X.75
(Superseded to 05420000)

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 070238

PLUG,PIPE .38SQ HD UNFIN STL
(Superseded to 07023800)

$

$

Not available
