987061 - Gravely Lawn Tractor, 16hp, With Hydraulic Lift (SN: 000101 & Above) TRANSMISSION Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

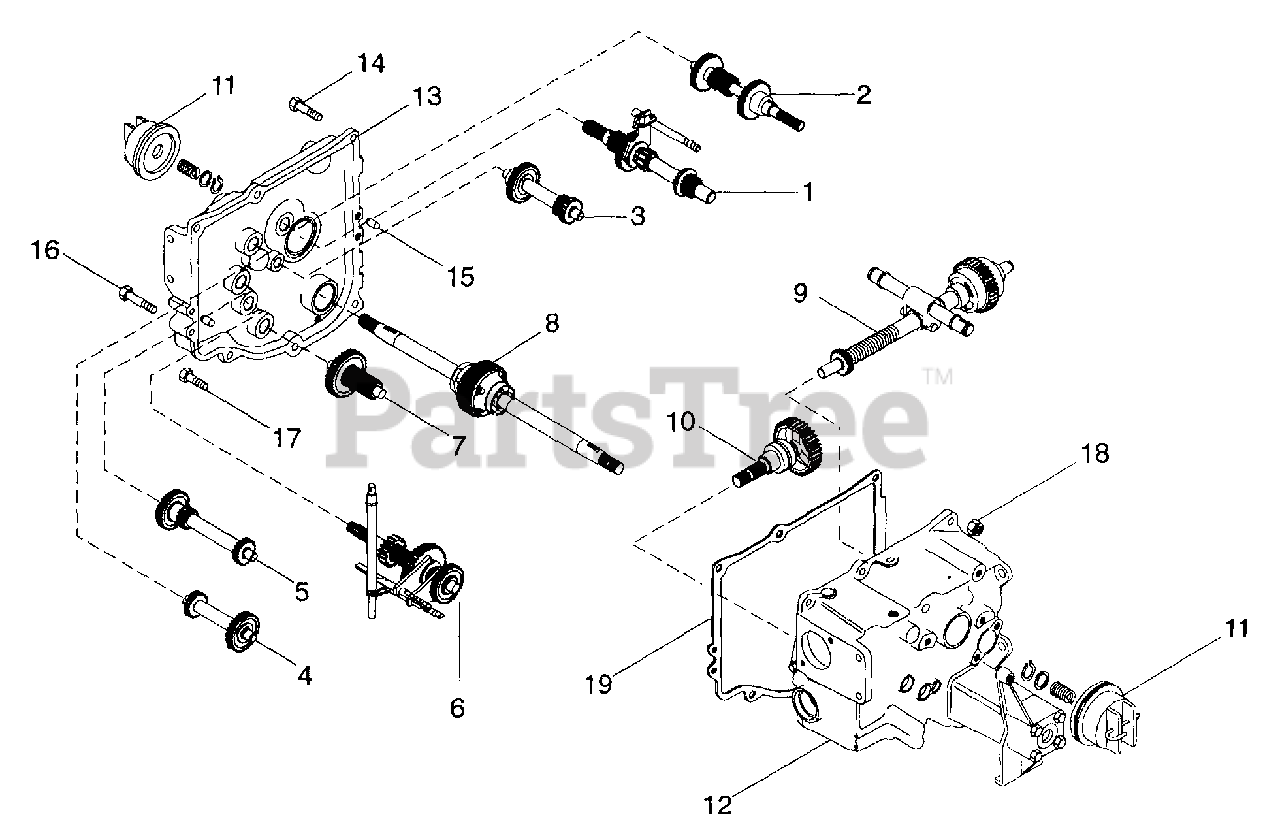

TRANSMISSION Parts Diagram

  • Title

1

Shaft, Forward Clutch

$

$

Not available

2

Shaft, Reverse Clutch

$

$

Not available

3

Shaft, 3rd and 4th Gear

$

$

Not available

4

Shaft, Idler

$

$

Not available

5

Shaft, 1st and 2nd Gear

$

$

Not available

6

Shaft, Brake-Sliding Gear

$

$

Not available

7

Shaft, Pinion-Final Drive

$

$

Not available

8

Shaft, Differential Asm.

$

$

Not available

9

Shaft, PTO Clutch

$

$

Not available

10

Shaft, PTO Drive Asm.

$

$

Not available

11

Fwd-Rev Clutch Asm.

$

$

Not available

12

Transmission Case Asm.

$

$

Not available

13

Transmission Cover Asm

$

$

Not available

14

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 018089

PIN-DWL .38X.625
(Superseded to 05807600)

$

$

Not available

16

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

17

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

18

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 018027

GSKT,TRANS COVER
(Superseded to 08721800)

$32.99

$

In Stock, only 4 left!

0
