987066 - Gravely Lawn Tractor, 16hp Kohler, With Manual Lift (SN: 000101 & Above) BRAKE LINKAGE - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Manual Lift

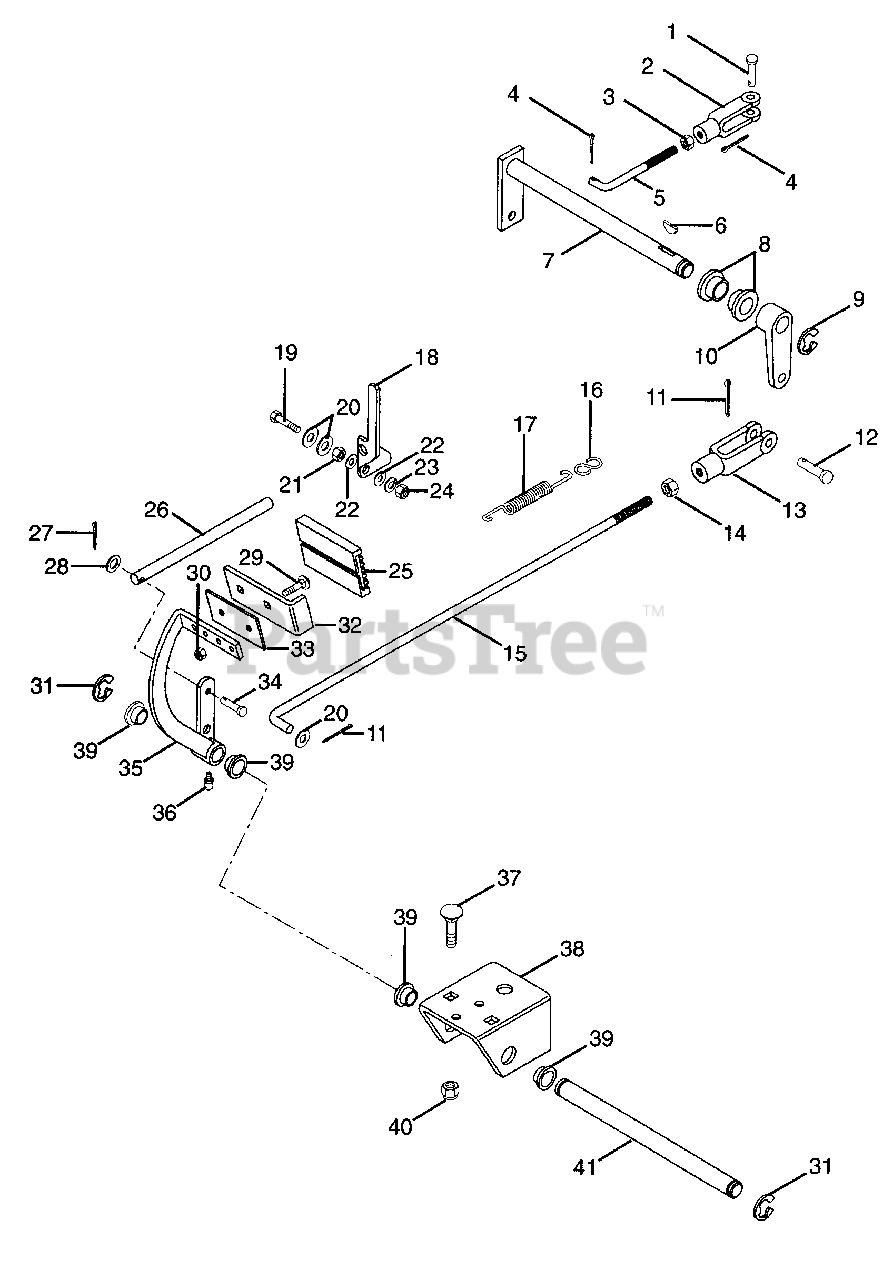

BRAKE LINKAGE - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 121741

Pin-Clevis .312 x .822
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 034633

Yoke .31-24 x 2.250
(Superseded to 07014700)

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 06536700

Nut-Jam .312-24 Grade 2
(Superseded to 06500923)

$1.49

$

In Stock, Qty 10

0

4

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

5

Gravely 045109

Rod-Parking Brake
(Superseded to 08656100)

$62.99

$

Usually ships in 4-12 days

0

6

Gravely 124549

Key-Woodruff .19 x .75
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 045104

Weldment-Brake Cross Shaft
(Superseded to 08764500)

$

$

Not available

8

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$5.49

$

In Stock, Qty 20+

0

9

Gravely 011270

Ring-Retaining-External .574 x .050
(Superseded to 05707400)

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 018019

Lever-PTO
(Superseded to 08705700)

$

$

Not available

11

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 5

0

12

Gravely 138078

Pin-Clevis .375 x .948
(Superseded to 06811900)

$5.49

$

In Stock, only 3 left!

0

13

Gravely 018380

Clevis .38-24 Adjustable
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

15

Gravely 045102

Rod-Brake (Right Hand)
(Superseded to 08656000)

Note: (Right Hand)

$

$

Not available

16

Gravely 011329

Clip-Spring
(Superseded to 08657900)

$

$

Not available

17

Gravely 011263

Spring-Tens .095 x .500 x 5.5
(Superseded to 08353300)

$15.99

$

In Stock, only 2 left!

0

18

Gravely 020772

Arm-Parking Brake Lock
(Superseded to 08859800)

$

$

Not available

19

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, Qty 16

0

20

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06535900

Nut-Jam .375-16
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 020775

Washer-Flat-Nylon .375 x .75 x .060
(Superseded to 06433600)

$0.99

$

In Stock, Qty 10

0

23

Gravely 06308800

Washer-Lock .375 x .094
(Superseded to 06300116)

$1.49

$

In Stock, Qty 18

0

24

Gravely 06529600

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 041944

Pad-Pedal
(Superseded to 00270100)

$3.99

$

In Stock, Qty 5

0

26

Gravely 046064

Rod
(Superseded to 08775400)

$51.99

$

Usually ships in 4-12 days

0

27

Gravely 06707500

Pin-Cotter .062 x .75

$0.99

$

In Stock, only 2 left!

0

28

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

29

Gravely 06219700

Bolt-Round Head Square Neck .25-20 x 1.25

$4.99

$

Usually ships in 4-12 days

0

30

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 018053

Ring-Retaining-External .625 x .042
(Superseded to 05708300)

$0.99

$

In Stock, Qty 5

0

32

Gravely 045518

Pedal-Brake
(Superseded to 08767400)

$

$

Not available

33

Gravely 041921

Plate-Brake
(Superseded to 08938300)

$

$

Not available

34

Gravely 045918

Pin-Clevis .25 x 1.13
(Superseded to 06700209)

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 045215

Weldment-Brake Pedal
(Superseded to 08765200)

$284.99

$

Usually ships in 4-12 days

0

36

Gravely 441027

Fitting-Lube .25-28 x .256

$

$

Not available

37

Gravely 06219600

Bolt-Round Head Square Neck .38-16 x .75
(Superseded to 06223900)

Note: Grade 1

$1.99

$

In Stock, only 4 left!

0

38

Gravely 045222

Bracket-Brake Pedal
(Superseded to 08765800)

$

$

Not available

39

Gravely 045787

Bushing-Flange .630 x 1.000 x .625
(Superseded to 05517400)

$7.49

$

Usually ships in 4-12 days

0

40

Gravely 06535500

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 045221

Shaft-Brake Pedal Mounting
(Superseded to 08765700)

$

$

Not available
