987066 - Gravely Lawn Tractor, 16hp Kohler, With Manual Lift (SN: 000101 & Above) NUMBER SIX SHAFT - BRAKE/SLIDING GEAR - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Manual Lift

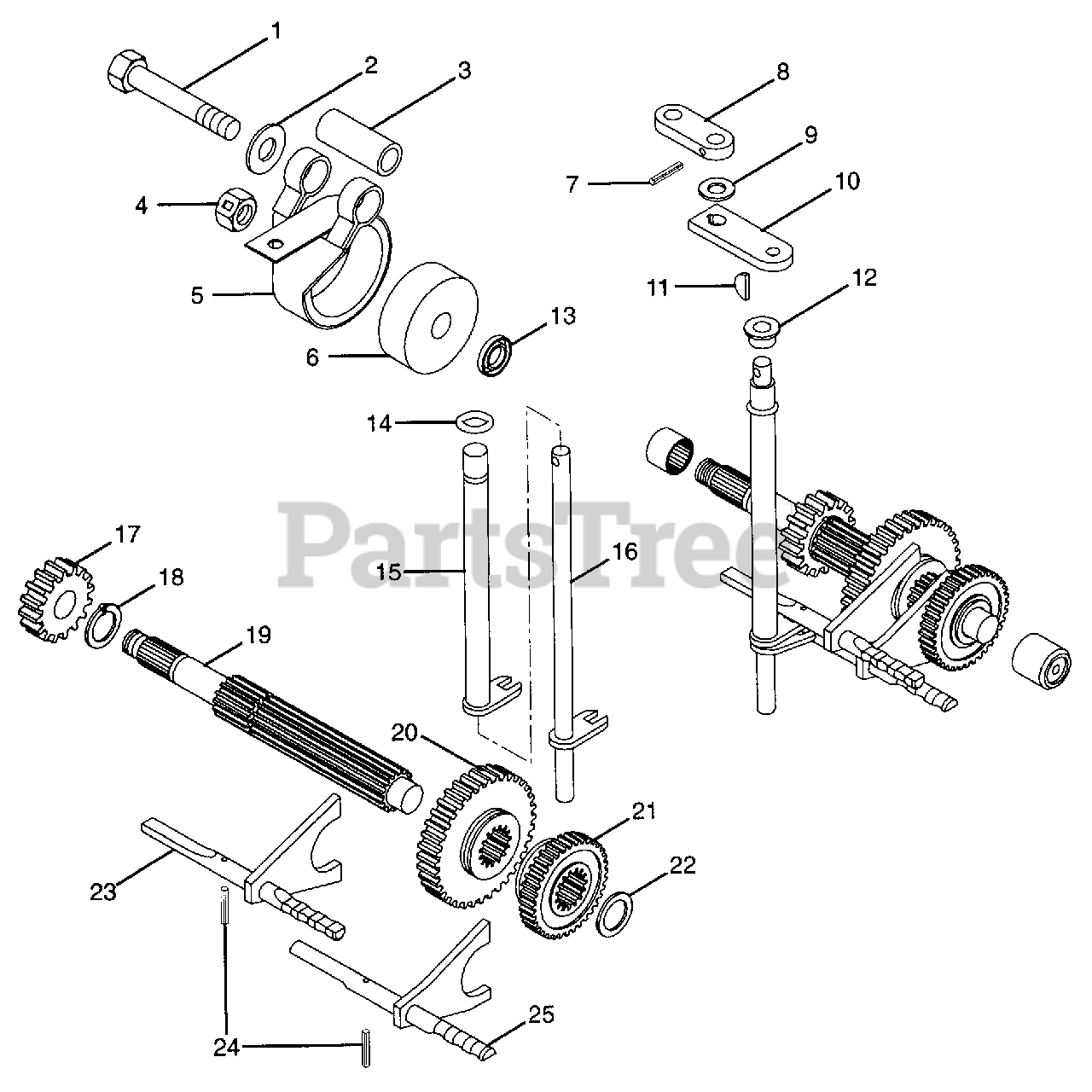

NUMBER SIX SHAFT - BRAKE/SLIDING GEAR - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 05965500

Bolt-Hex .50-13 x 2.75 Grade 5
(Superseded to 05901720)

$5.49

$

Usually ships in 4-12 days

0

2

Gravely 06441900

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 018165

Bushing-Sleeve .550 x .750 x 2.06
(Superseded to 08713400)

$19.99

$

Usually ships in 4-12 days

0

4

Gravely 06535300

Nut-Locking-Center .625-11 Grade 2

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 040732

Assembly-Brake Band
(Superseded to 08751700)

$

$

Not available

6

Gravely 021371

Drum-Brake
(Superseded to 08723600)

$92.99

$

Usually ships in 4-12 days

0

7

Gravely 421202

Pin-Roll .187 x 1.000
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 017945

Arm-Shifter
(Superseded to 08702900)

$26.99

$

Usually ships in 4-12 days

0

9

Gravely 021141

Washer-Felt .437 x 1.000 x .031
(Superseded to 05615600)

$3.99

$

In Stock, Qty 8

0

10

Gravely 017944

Arm-Shifter
(Superseded to 08702800)

$40.99

$

Usually ships in 4-12 days

0

11

Gravely 271089

Key-Woodruff .13 x .38
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 017943

Bushing-Flange .756 x 1.125 x .75
(Superseded to 05519800)

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 015137

Seal .750 x 1.250 x .136
(Superseded to 05613800)

$14.99

$

In Stock, Qty 5

0

14

Gravely 018018

O-Ring .625 x .75 x .062
(Superseded to 05614200)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 017940

Weldment 1st & 3rd Shifter
(Superseded to 08702400)

$

$

Not available

16

Gravely 017937

Weldment 2nd & 4th Shifter
(Superseded to 08702100)

$13.99

$

Usually ships in 4-12 days

0

17

Gravely 014988

Gear 8 DP 16 Teeth x .850
(Superseded to 08700800)

$

$

Not available

18

Gravely 014987

Ring-Retaining External .920 x .125
(Superseded to 05711800)

$9.99

$

Usually ships in 4-12 days

0

19

Gravely 021370

Shaft-Slide Gear
(Superseded to 08723500)

$

$

Not available

20

Gravely 014989

Gear-Sliding 10 DP 36 T x .594
(Superseded to 08700900)

$

$

Not available

21

Gravely 014995

Gear-Sliding 10 DP 30 T x .594
(Superseded to 08701000)

$

$

Not available

22

Gravely 014998

Bearing-N-Thrust .752 x 1.24 x .093
(Superseded to 06413300)

$6.49

$

Usually ships in 4-12 days

0

23

Gravely 020761

Weldment-Rail Shift Fork 1 & 3
(Superseded to 08721100)

$

$

Not available

24

Gravely 456384

Pin-Roll .250 x .75
(Superseded to 05803600)

$2.99

$

In Stock, only 2 left!

0

25

Gravely 020762

Weldment-Rail Shift Fork 2 & 4
(Superseded to 08721200)

$

$

Not available
