987066 - Gravely Lawn Tractor, 16hp Kohler, With Manual Lift (SN: 000101 & Above) NUMBER THIRTEEN - TRANSMISSION COVER ASSY - 066,067,068,069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Manual Lift

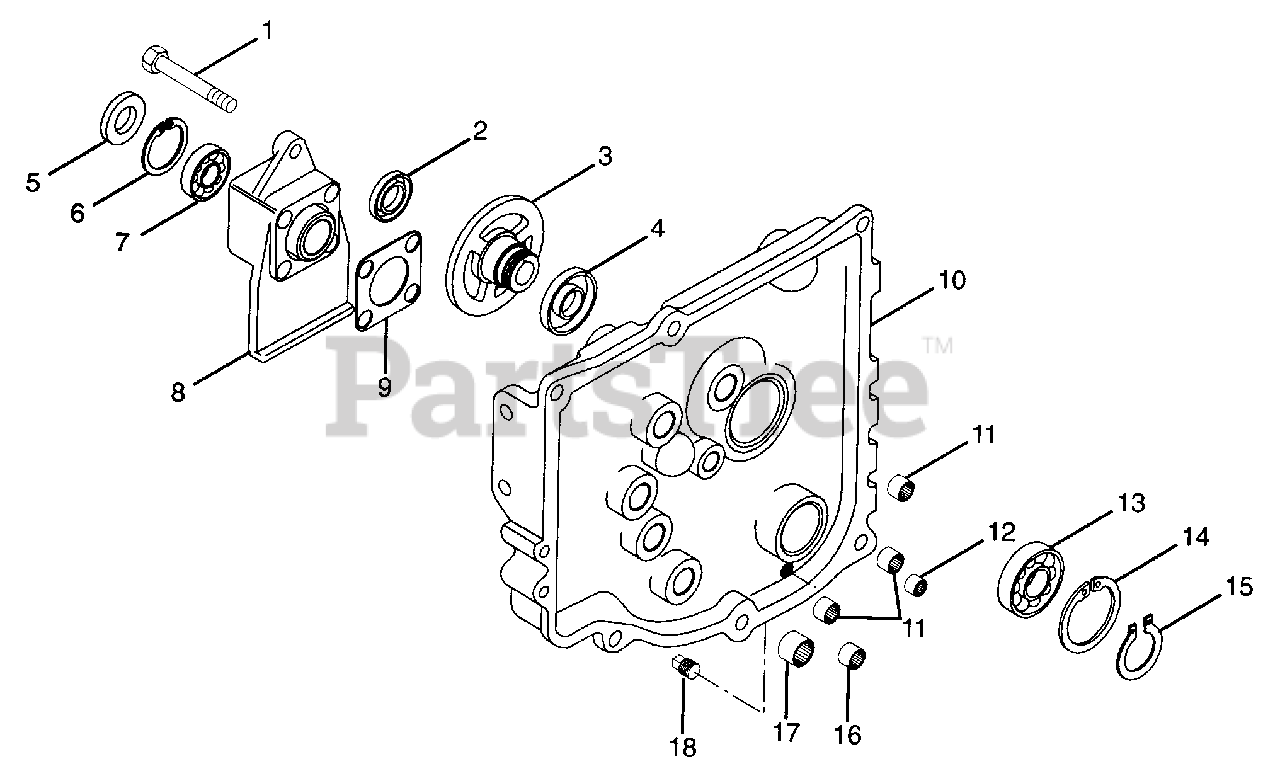

NUMBER THIRTEEN - TRANSMISSION COVER ASSY - 066,067,068,069 - G SERIES Parts Diagram

  • Title

1

Gravely 05960000

Bolt-Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

In Stock, Qty 8

0

2

Gravely 018035

Seal .750 x 1.625 x .250
(Superseded to 05614600)

$13.99

$

In Stock, only 4 left!

0

3

Gravely 050604

Hub-Clutch
(Superseded to 08786900)

$303.99

$

Usually ships in 4-12 days

0

4

Gravely 046323

Seal-Lip 2.25 x 3.25 x .38
(Superseded to 05617600)

$27.99

$

Usually ships in 4-12 days

0

5

Gravely 051096

Seal 1.250 x 2.250 x .500
(Superseded to 05618200)

$22.99

$

In Stock, Qty 6

0

6

Gravely 018812

Ring-Retaining-External 2.49 x .078
(Superseded to 05712900)

$6.49

$

Usually ships in 4-12 days

0

7

Gravely 050473

Bearing-Ball 1.25 x 2.25 x .50
(Superseded to 05426600)

$41.99

$

Usually ships in 4-12 days

0

8

Gravely 046061

Axle Bearing Retainer
(Superseded to 08775300)

$

$

Not available

9

Gravely 018030

Gasket
(Superseded to 08701800)

$7.99

$

In Stock, Qty 18

0

10

Gravely 050117

Assembly-Transmission Cover
(Superseded to 08785100)

$

$

Not available

11

Gravely 017913

Bearing-Needle .75 x 1.0 x .75
(Superseded to 05420100)

$23.99

$

Usually ships in 4-12 days

0

12

Gravely 017914

Bearing-Needle .625 x .812 x .75
(Superseded to 05420200)

$9.99

$

Usually ships in 4-12 days

0

13

Gravely 046321

Bearing-Ball 1.97 x 3.54 x .79
(Superseded to 05426300)

$59.99

$

Usually ships in 4-12 days

0

14

Gravely 046322

Ring-Retaining-Internal 3.54 x .109
(Superseded to 05715400)

$

$

Not available

15

Gravely 017919

Ring-Retaining-External 1.819 x .062
(Superseded to 05712100)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 011063

Bearing-Needle .75 x 1.0 x .75
(Superseded to 05427500)

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 017912

Bearing-Needle 1.0 x 1.25 x .75
(Superseded to 05420000)

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 070238

Plug-Pipe .38
(Superseded to 07023800)

$

$

Not available
