987066 - Gravely Lawn Tractor, 16hp Kohler, With Manual Lift (SN: 000101 & Above) NUMBER TWELVE - TRANSMISSION CASE ASSY - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Manual Lift

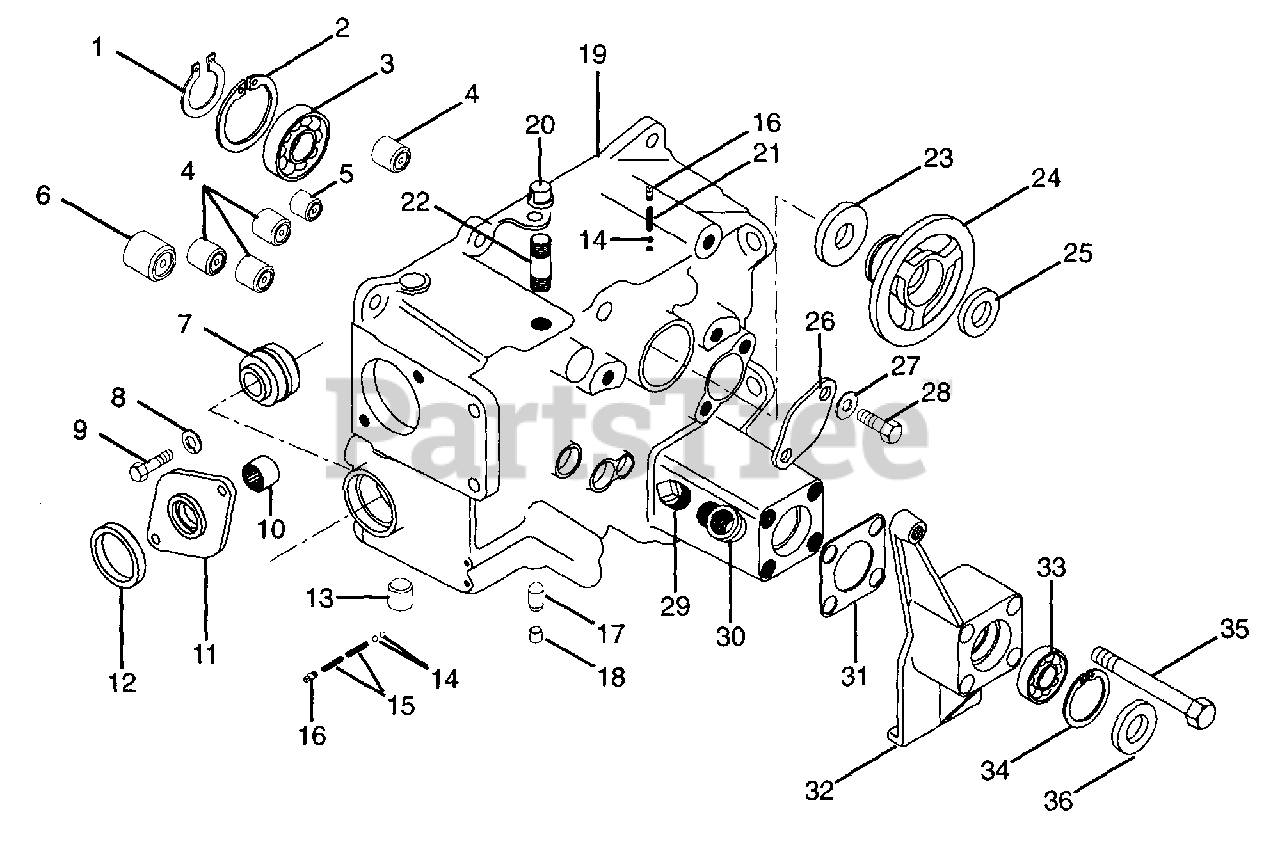

NUMBER TWELVE - TRANSMISSION CASE ASSY - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 017919

Ring-Retaining-External 1.819 x .062
(Superseded to 05712100)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 018872

Ring-Retaining-Internal 3.52 x .109
(Superseded to 05713000)

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 017915

Bearing-Ball 1.97 x 3.14 x .63
(Superseded to 05420300)

$68.99

$

Usually ships in 4-12 days

0

4

Gravely 017913

Bearing-Needle .75 x 1.0 x .75
(Superseded to 05420100)

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 017914

Bearing-Needle .625 x .812 x .75
(Superseded to 05420200)

$9.99

$

Usually ships in 4-12 days

0

6

Gravely 017912

Bearing-Needle 1.0 x 1.25 x .75
(Superseded to 05420000)

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 014640

Bearing-Assembly 1.000 x 1.980 x 1.243
(Superseded to 05419300)

$115.99

$

Usually ships in 4-12 days

0

8

Gravely 06308600

Washer-Lock .313 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

10

Gravely 009660

Bearing-Needle .75 x 1.000 x .50
(Superseded to 05427100)

$

$

Not available

11

Gravely 046302

Cap-Front PTO
(Superseded to 08778300)

$

$

Not available

12

Gravely 015137

Seal .750 x 1.250 x .136
(Superseded to 05613800)

$14.99

$

In Stock, Qty 5

0

13

Gravely 017946

Plug-Cup .500
(Superseded to 07704100)

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 274301

Ball .312
(Superseded to 05429900)

$

$

Not available

15

Gravely 017936

Spring-Compression .045 x .30 x 1.50
(Superseded to 08327700)

$

$

Not available

16

Gravely 103877

Plug-Pipe .12
(Superseded to 07023700)

$

$

Not available

17

Gravely 018200

Pin-Interlock
(Superseded to 08706400)

$

$

Not available

18

Gravely 421743

Plug-Cup; 3/8
(Superseded to 07702700)

$

$

Not available

19

Gravely 050115

Assembly-Transmission Case
(Superseded to 08784900)

$1034.99

$

Usually ships in 4-12 days

0

20

Gravely 019472

Cap-Pipe 1/2
(Superseded to 08715400)

$9.49

$

Usually ships in 4-12 days

0

21

Gravely 024772

Spring-Compression .045 x .300 x .938
(Superseded to 08330400)

$

$

Not available

22

Gravely 121664

Nipple-Pipe .50 x 2.50
(Superseded to 07024300)

$

$

Not available

23

Gravely 017917

Seal 2.250 x 3.002 x .375
(Superseded to 05614000)

$22.99

$

Usually ships in 4-12 days

0

24

Gravely 051555

Hub-Clutch
(Superseded to 08790700)

$479.99

$

Usually ships in 4-12 days

0

25

Gravely 018035

Seal .750 x 1.628 x .250
(Superseded to 05614600)

$13.99

$

In Stock, only 4 left!

0

26

Gravely 018421

Plate-Cover
(Superseded to 08707500)

$11.99

$

Usually ships in 4-12 days

0

27

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

29

Gravely 103880

Plug-Pipe .50
(Superseded to 07023900)

$3.49

$

Usually ships in 4-12 days

0

30

Gravely 070240

Elbow .50 x 90
(Superseded to 07024000)

$

$

Not available

31

Gravely 018030

Gasket
(Superseded to 08701800)

$7.99

$

In Stock, Qty 18

0

32

Gravely 042976

Retainer-Axle Bearing
(Superseded to 08760200)

$

$

Not available

33

Gravely 050743

Bearing-Ball 1.25 x 2.25 x .50

$

$

Not available

34

Gravely 018812

Ring-Retaining-External 2.49 x .078
(Superseded to 05712900)

$6.49

$

Usually ships in 4-12 days

0

35

Gravely 05960000

Bolt-Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

In Stock, Qty 8

0

36

Gravely 051096

Seal 1.250 x 2.250 x .500
(Superseded to 05618200)

$22.99

$

In Stock, Qty 6

0
