987066 - Gravely Lawn Tractor, 16hp Kohler, With Manual Lift (SN: 000101 & Above) STEERING - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Manual Lift

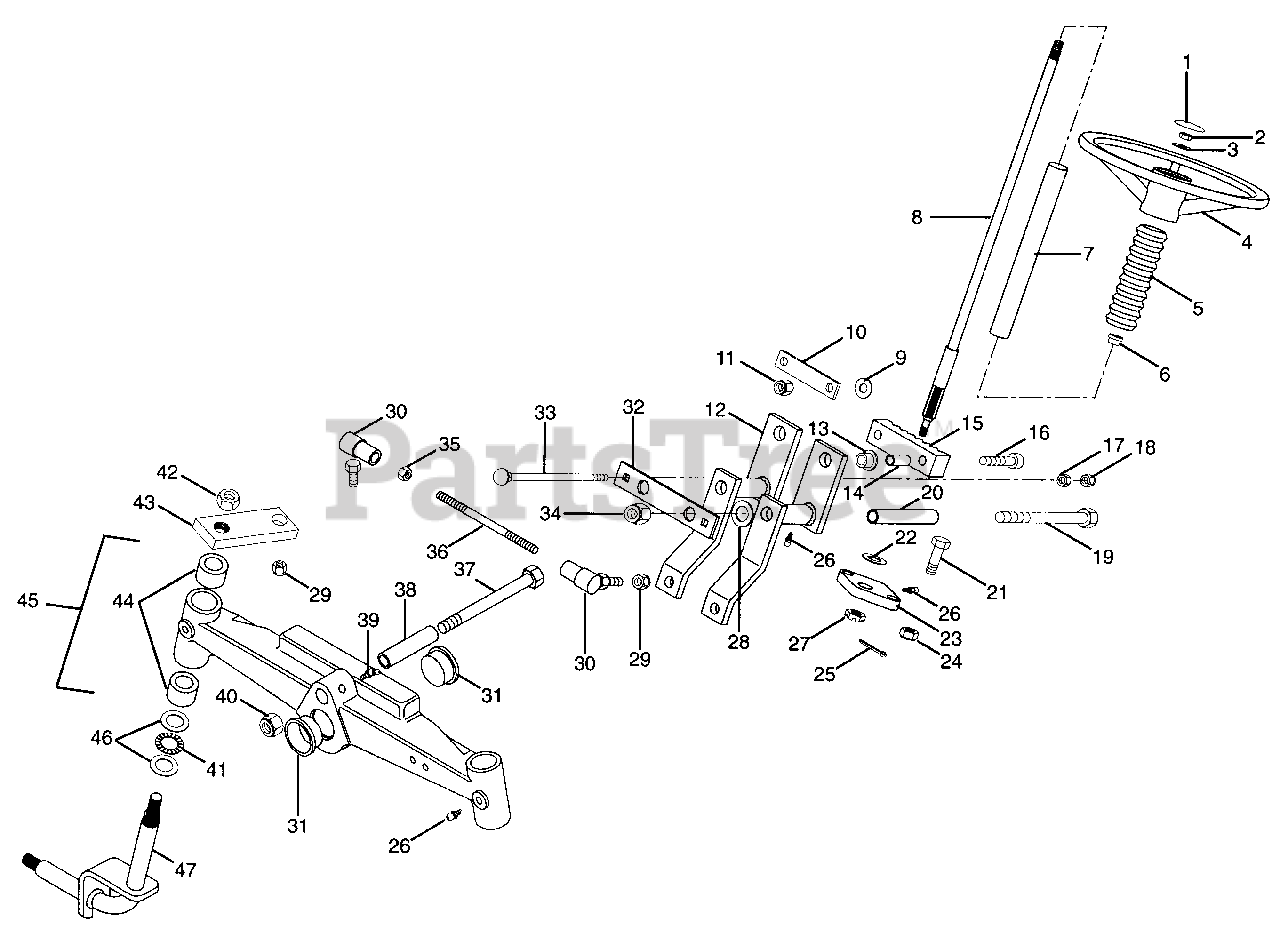

STEERING - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 031426

Steering Wheel Cap
(Superseded to 03489800)

$

$

Not available

2

Gravely 06539300

Nut-Jam .625-11
(Superseded to 06500200)

$

$

Not available

3

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 031281

Steering Wheel
(Superseded to 03066600)

$

$

Not available

5

Gravely 047311

Steering Column Boot
(Superseded to 08739200)

$

$

Not available

6

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$5.49

$

In Stock, Qty 20+

0

7

Gravely 040984

Tube-Plastic 1.0 I.D.
(Superseded to 07525500)

$

$

Not available

8

Gravely 047530

Weldment-Steering Shaft
(Superseded to 08780900)

$

$

Not available

9

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 021246

Strap-Rack and Pinion
(Superseded to 08723000)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06535500

Nut-Locking-Center .375-16 Grade 2
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 040130

Weldment-Steering
(Superseded to 08746200)

$296.99

$

Usually ships in 4-12 days

0

13

Gravely 021077

Bushing-Flange .627 x .879 x .469 x 1.120
(Superseded to 05519100)

$7.49

$

Usually ships in 4-12 days

0

14

Gravely 021076

Bushing-Steel .391 x .621 x .676
(Superseded to 08902300)

$27.99

$

In Stock, only 2 left!

0

15

Gravely 051851

Grade-Rack
(Superseded to 08791700)

$

$

Not available

16

Gravely 05963300

Bolt-Hex .38-16 x 2.00
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 06529200

Nut-Hex .312-18 Grade 2
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

18

Gravely 06529800

Nut-Locking-Center .312-18 Grade 2
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 05961800

Bolt-Hex .50-13 x 6.00

$

$

Not available

20

Gravely 021078

Sleeve-Pivot
(Superseded to 08721900)

$

$

Not available

21

Gravely 05962800

Bolt-Hex .44-14 x 1.50
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

22

Gravely 035344

Washer-Thrust .507 x .917 x .031
(Superseded to 06426300)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 035064

Support-Steering Shaft
(Superseded to 08737200)

$

$

Not available

24

Gravely 06536400

Nut-Locking-Center .44-14
(Superseded to 06500930)

$3.49

$

In Stock, Qty 8

0

25

Gravely 06707000

Pin-Cotter .09 x 1.00
(Superseded to 121224)

$0.99

$

In Stock, Qty 9

0

26

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

27

Gravely 06539100

Nut-Hex-Slotted .500-13

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 014998

Bearing-N-Thrust .752 x 1.24 x .093
(Superseded to 06413300)

$6.49

$

Usually ships in 4-12 days

0

29

Gravely 06538800

Nut-Locking-Nylon .375-24 Grade 2

$2.49

$

In Stock, only 4 left!

0

30

Gravely 021084

Joint-Steering Ball
(Superseded to 02917100)

$29.99

$

In Stock, Qty 10

0

31

Gravely 018785

Cap-Front Axle
(Superseded to 07520300)

$3.49

$

In Stock, only 1 left!

0

32

Gravely 021079

Plate-Adjustment
(Superseded to 08722000)

$22.99

$

Usually ships in 4-12 days

0

33

Gravely 06222800

Bolt-Round Head Square Neck .31-18 x 5.50 Grade 2

$

$

Not available

34

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

$4.99

$

In Stock, Qty 16

0

35

Gravely 06534700

Nut-Jam .375-24 Grade 2
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

36

Gravely 040630

Rod-Steering
(Superseded to 08655200)

$55.99

$

Usually ships in 4-12 days

0

37

Gravely 05968800

Bolt-Hex .75-10 x 4.50

$9.99

$

In Stock, only 1 left!

0

38

Gravely 023237

Tube-Axle Pivot
(Superseded to 08725200)

$70.99

$

In Stock, Qty 7

0

39

Gravely 411031

Fitting-Lube 45 Deg
(Superseded to 07012700)

$4.99

$

Usually ships in 4-12 days

0

40

Gravely 06535400

Nut-Locking-Center .75-10 Grade 2

$6.49

$

Usually ships in 4-12 days

0

41

Gravely 021543

Bearing-Thrust .875 x 1.427 x .078
(Superseded to 05422000)

$11.99

$

In Stock, only 3 left!

0

42

Gravely 06535600

Nut-Hex .625-11 Grade 2

$2.99

$

Usually ships in 4-12 days

0

43

Gravely 040126

Arm-Tie Rod Axle
(Superseded to 08746100)

$38.99

$

Usually ships in 4-12 days

0

44

Gravely 043359

Bushing-Sleeve .866 x 1.004 x 1.000
(Superseded to 05516600)

$22.99

$

Usually ships in 4-12 days

0

45

Gravely 045400

Axle-Steering
(Superseded to 08766900)

$

$

Not available

46

Gravely 021541

Washer-Thrust .877 x 1.427 x .032
(Superseded to 06426100)

$11.99

$

In Stock, only 3 left!

0

47

Gravely 018463

Weldment-King Pin
(Superseded to 08707700)

$261.99

$

Usually ships in 4-12 days

0
