987067 - Gravely Lawn Tractor, 16hp Kohler, With Hydraulic Lift (SN: 000101 & Above) ELECTRICAL SYSTEM - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Hydraulic Lift

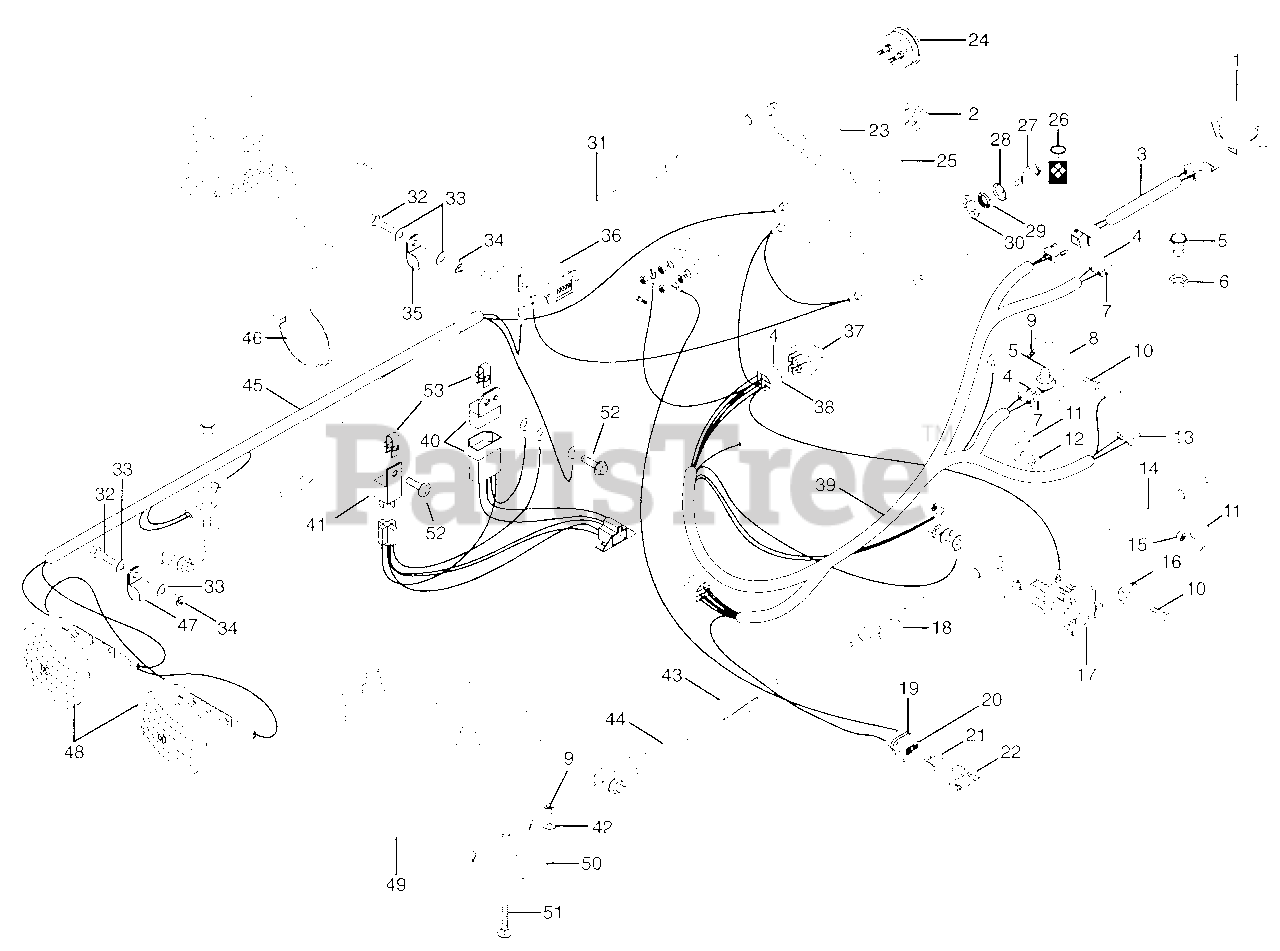

ELECTRICAL SYSTEM - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 03654200

Switch-Seat

$13.99

$

In Stock, only 1 left!

0

2

Gravely 034379

Switch Assembly
(Superseded to 03437900)

$71.99

$

Usually ships in 4-12 days

0

3

Gravely 045601

Harness-Wiring Seat Switch
(Superseded to 08769000)

$

$

Not available

4

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, only 1 left!

0

5

Gravely 020916

Switch-Neutral Start N.O.
(Superseded to 02913100)

$45.99

$

In Stock, only 1 left!

0

6

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 042176

Connector 2 Wire Switch
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 020660

Bracket-Switch
(Superseded to 08720300)

$

$

Not available

9

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

11

Gravely 027122

Clamp
(Superseded to 06907200)

$

$

Not available

12

Gravely 06529600

375-16 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 042289

Connector
(Superseded to 20709401)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 039862

Cable Starter
(Superseded to 08745600)

$

$

Not available

15

Gravely 06535500

Nut-Locking-Center .375-16
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 011676

Nut-Speed .25-20
(Superseded to 07016800)

$

$

Not available

17

Gravely 045071

Solenoid
(Superseded to 03551000)

$34.99

$

In Stock, Qty 7

0

18

Gravely 033847

Boot-Insulator
(Superseded to 03384700)

$

$

Not available

19

Gravely 045920

Assembly-Connector Weather Tight
(Superseded to 20822700)

$

$

Not available

20

Gravely 045922

Terminal For 14-16 Gauge Wire
(Superseded to 20822900)

$

$

Not available

21

Gravely 045037

Fuse-25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, Qty 9

0

22

Gravely 045921

Cover
(Superseded to 20822800)

$

$

Not available

23

Gravely 050673

Light-Indicator
(Superseded to 05128700)

$11.99

$

In Stock, only 2 left!

0

24

Gravely 021848

Gauge-Ammeter
(Superseded to 03490800)

$

$

Not available

25

Gravely 046060

Switch-Light
(Superseded to 08973300)

$6.99

$

In Stock, only 1 left!

0

26

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

27

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

28

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

29

Gravely 045489

Nut-Panel .562-24
(Superseded to 06517400)

Note: (066-069)

$13.99

$

In Stock, only 1 left!

0

29

Gravely 045497

Nut-Panel .625-32
(Superseded to 06517300)

Note: (070)

$7.99

$

In Stock, only 1 left!

0

30

Gravely 019667

Washer-Lock Internal .563 x .040
(Superseded to 06310900)

Note: (066-069)

$2.49

$

In Stock, only 4 left!

0

30

Gravely 063019

Washer-Lock Internal .625 x .045
(Superseded to 06306900)

Note: (070)

$3.99

$

In Stock, only 1 left!

0

31

Gravely 039871

Cable-Negative Battery
(Superseded to 08745800)

$

$

Not available

32

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 11

0

33

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

34

Gravely 06529800

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 041784

Clamp-Steel 1.0

$

$

Not available

36

Gravely 038256

Hour Meter
(Superseded to 09497400)

$22.99

$

In Stock, only 2 left!

0

37

Gravely 019223

Ignition Switch
(Superseded to 59211800)

Note: (066-069)

$68.99

$

In Stock, Qty 5

0

37

Gravely 088833

Switch-Key
(Superseded to 59211900)

Note: (070)

$90.99

$

Usually ships in 4-12 days

0

38

Gravely 038058

Connector
(Superseded to 20645101)

$5.99

$

In Stock, Qty 9

0

39

Gravely 087723

Harness-Wiring
(Superseded to 08772300)

Note: (066-069)

$

$

Not available

39

Gravely 087892

Harness-Wiring
(Superseded to 08789200)

Note: (070)

$

$

Not available

40

Gravely 59000300

Kit-Interlock Module-Delay

$137.99

$

Usually ships in 4-12 days

0

41

Gravely 040216

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

42

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

43

Gravely 034466

Cover-Battery Terminal
(Superseded to 07523100)

$

$

Not available

44

Gravely 039861

Cable-Battery to Magneto Switch
(Superseded to 08745500)

$

$

Not available

45

Gravely 087796

Harness-Wiring Ground & Lights
(Superseded to 08779600)

$

$

Not available

46

Gravely 010629

Tie-Cable
(Superseded to 07517300)

$

$

Not available

47

Gravely 035313

Cable Clamp
(Superseded to 03334000)

$

$

Not available

48

Gravely 039069

Head Light
(Superseded to 03114900)

$20.99

$

In Stock, only 2 left!

0

49

Gravely 04202200

Battery-12Volt
(Superseded to 02078500)

$

$

Not available

50

Gravely 037742

Clamp
(Superseded to 08539500)

$22.99

$

In Stock, only 1 left!

0

51

Gravely 06220000

Bolt-Round Head Square Neck .25-20 x 1.75
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

52

Gravely 06116900

Screw-Machine-Hex Washer Head 10-24 x .75
(Superseded to 05901837)

$2.49

$

In Stock, only 1 left!

0

53

Gravely 07027700

Nut-Retainer 10-24

$

$

Not available
