987067 - Gravely Lawn Tractor, 16hp Kohler, With Hydraulic Lift (SN: 000101 & Above) FUEL & EXHAUST SYSTEM - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Hydraulic Lift

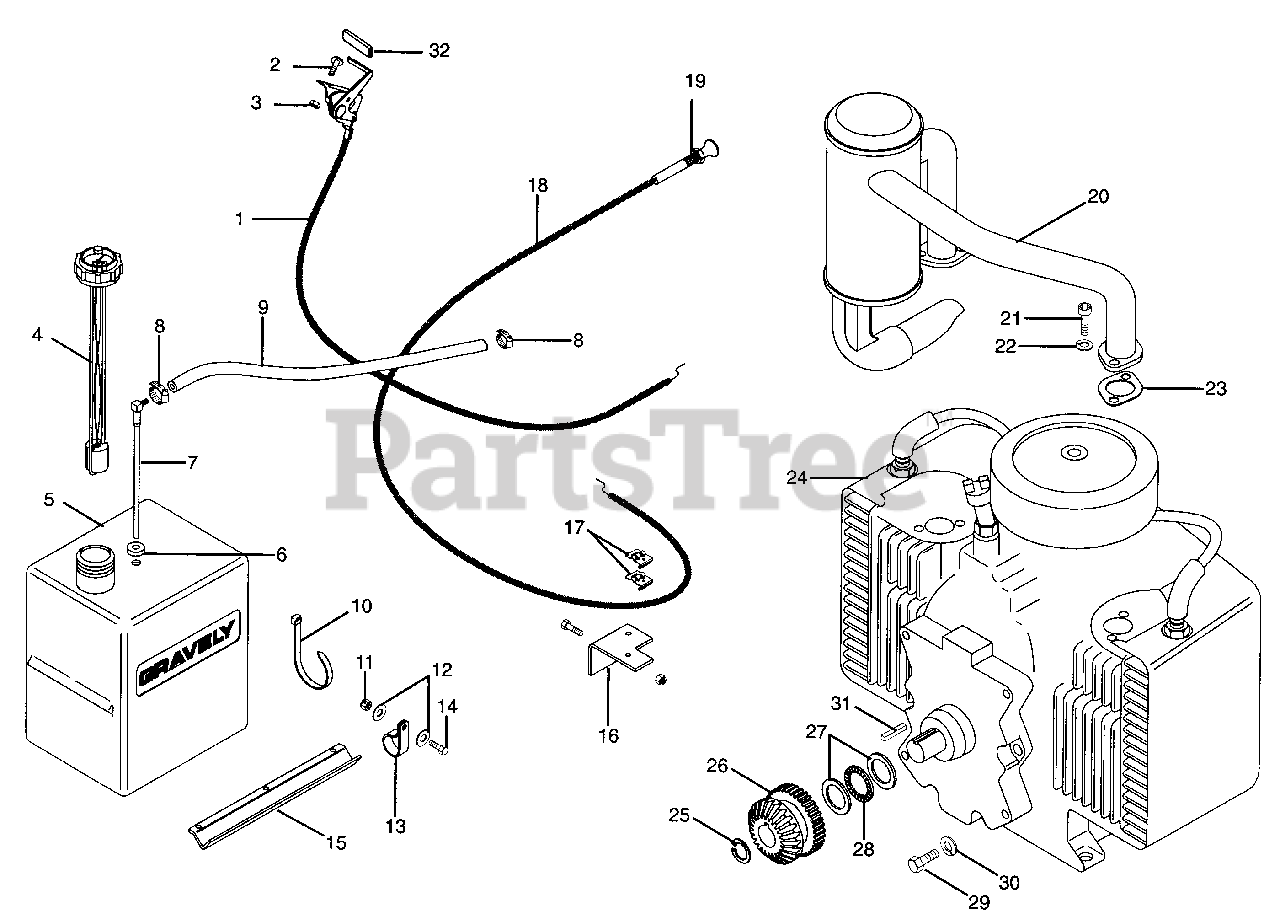

FUEL & EXHAUST SYSTEM - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 06939200

CABLE, THROTTLE
(Superseded to 06941300)

$54.99

$

Usually ships in 4-12 days

0

2

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 047615

GAUGE,FUEL
(Superseded to 08983200)

$

$

Not available

5

Gravely 047612

TANK,FUEL
(Superseded to 08983000)

$

$

Not available

6

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 047614

FTG,TANK
(Superseded to 08983100)

$35.99

$

Usually ships in 4-12 days

0

8

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

9

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 010629

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

11

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 035313

CABLE CLAMP
(Superseded to 03334000)

$

$

Not available

14

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 032030

SHIELD,HEAT
(Superseded to 08734400)

$

$

Not available

16

Gravely 040448

BRKT,THROTTLE & CHOKE
(Superseded to 08748100)

$

$

Not available

17

Gravely 007331

CLIP,SPEED
(Superseded to 06931500)

$

$

Not available

18

Gravely 039859

CONTROL,CHOKE
(Superseded to 06926100)

$60.99

$

Usually ships in 4-12 days

0

19

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

20

Gravely 051902

MUFFLER,EXHAUST
(Superseded to 08792500)

$

$

Not available

21

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 044390

GASKET,EXHAUST
(Superseded to 08824700)

$23.99

$

In Stock, only 4 left!

0

24

Gravely 047480

ENG,16HP MAGNUM , PS-24633

Note: (066,067)

$

$

Not available

Gravely 045527

ENG,18HP MAGNUM, PS-24590

Note: (068)

$

$

Not available

Gravely 045529

ENG,20HP KOHLER MAG. PS.49562

Note: (069)

$

$

Not available

25

Gravely 018344

RG-RTNG-INT 1.249X.050
(Superseded to 05712600)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 051321

GR,SPUR & BEVEL (INPUT)
(Superseded to 08790200)

$329.99

$

Usually ships in 4-12 days

0

27

Gravely 040758

WSHR-THRST 1.125X1.750X.1245
(Superseded to 06434200)

$21.99

$

Usually ships in 4-12 days

0

28

Gravely 018341

BRG-N-THRST 1.74X1.127X.078
(Superseded to 05421000)

$10.99

$

Usually ships in 4-12 days

0

29

Gravely 05946000

BLT-HEX .50-13X1.75 YZ GR8

$

$

Not available

30

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 018345

KEY-SQ .248X1.25X.248
(Superseded to 06606900)

$2.99

$

In Stock, only 2 left!

0

32

Gravely 075215

GRIP
(Superseded to 07521500)

$

$

Not available
