987067 - Gravely Lawn Tractor, 16hp Kohler, With Hydraulic Lift (SN: 000101 & Above) HOOD GRILLE - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Hydraulic Lift

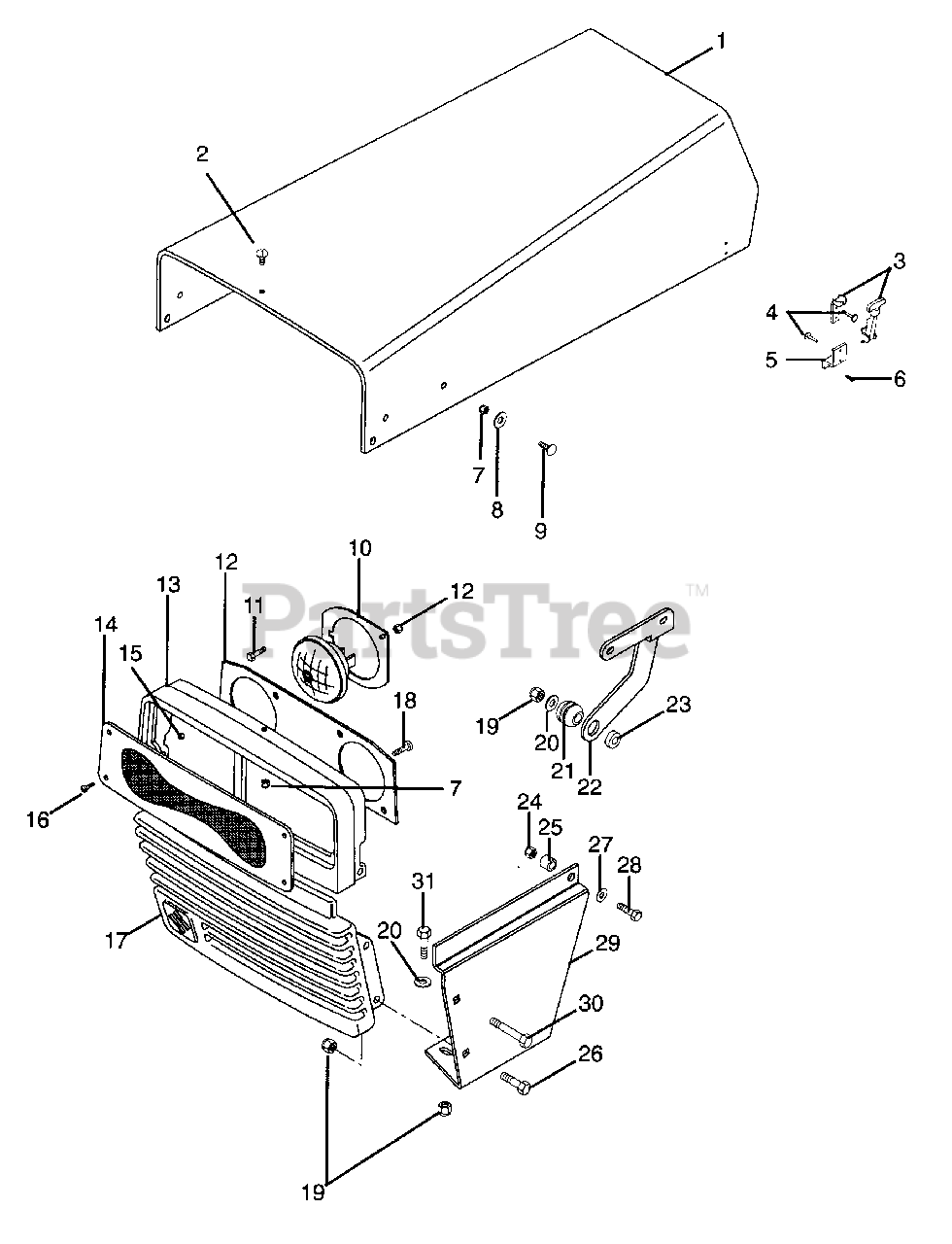

HOOD GRILLE - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 038674

HOOD,TRACTOR
(Superseded to 08658600)

$

$

Not available

2

Gravely 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$1.49

$

In Stock, only 3 left!

0

3

Gravely 035294

LATCH,FLEXIBLE
(Superseded to 08704700)

$26.99

$

Usually ships in 4-12 days

0

4

Gravely 032661

RVT-STEEL
(Superseded to 06807500)

$

$

Not available

5

Gravely 039828

BRKT,HOOD LATCH MTG
(Superseded to 08744700)

$46.99

$

Usually ships in 4-12 days

0

6

Gravely 07415600

SCR-TAP 8-32X.50 HWH TR YWZC

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 039070

HEAD LIGHT RETAINER RING
(Superseded to 03115900)

$

$

Not available

11

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

12

Gravely 038672

PANEL,HEADLIGHT REFLECTOR
(Superseded to 03067000)

$

$

Not available

13

Gravely 038673

BEZEL,HEADLIGHT
(Superseded to 03066800)

$

$

Not available

14

Gravely 038671

PANEL,HEADLIGHT LENSE
(Superseded to 03066900)

$

$

Not available

15

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

17

Gravely 039831

GRILL
(Superseded to 03493700)

$

$

Not available

18

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06535500

NUT-LK-CTR .375-16 YWZC
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 035518

GROMMET
(Superseded to 07504200)

$6.49

$

Usually ships in 4-12 days

0

22

Gravely 039047

L.H. HOOD HINGE
(Superseded to 03118600)

$

$

Not available

Gravely 039049

R.H. HOOD HINGE
(Superseded to 03118500)

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 036849

SPACER -FLANGED .390X.500X.781
(Superseded to 03114500)

$10.99

$

In Stock, Qty 12

0

24

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 010908

Bushing-Sleeve .406 x 1.00 x 1.00
(Superseded to 08707800)

$91.99

$

Usually ships in 4-12 days

0

26

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

29

Gravely 039836

PNL,SIDE L.H.
(Superseded to 08745000)

$13.99

$

Usually ships in 4-12 days

0

Gravely 039835

PNL,SIDE R.H.
(Superseded to 08744900)

$13.99

$

Usually ships in 4-12 days

0

30

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

31

UNKNOWN

$

$

Not available
