987067 - Gravely Lawn Tractor, 16hp Kohler, With Hydraulic Lift (SN: 000101 & Above) REAR DECK AND SEAT - 066, 067, 068, 069 - G SERIES Parts Diagram

Lawn Tractor, 16hp Kohler, With Hydraulic Lift

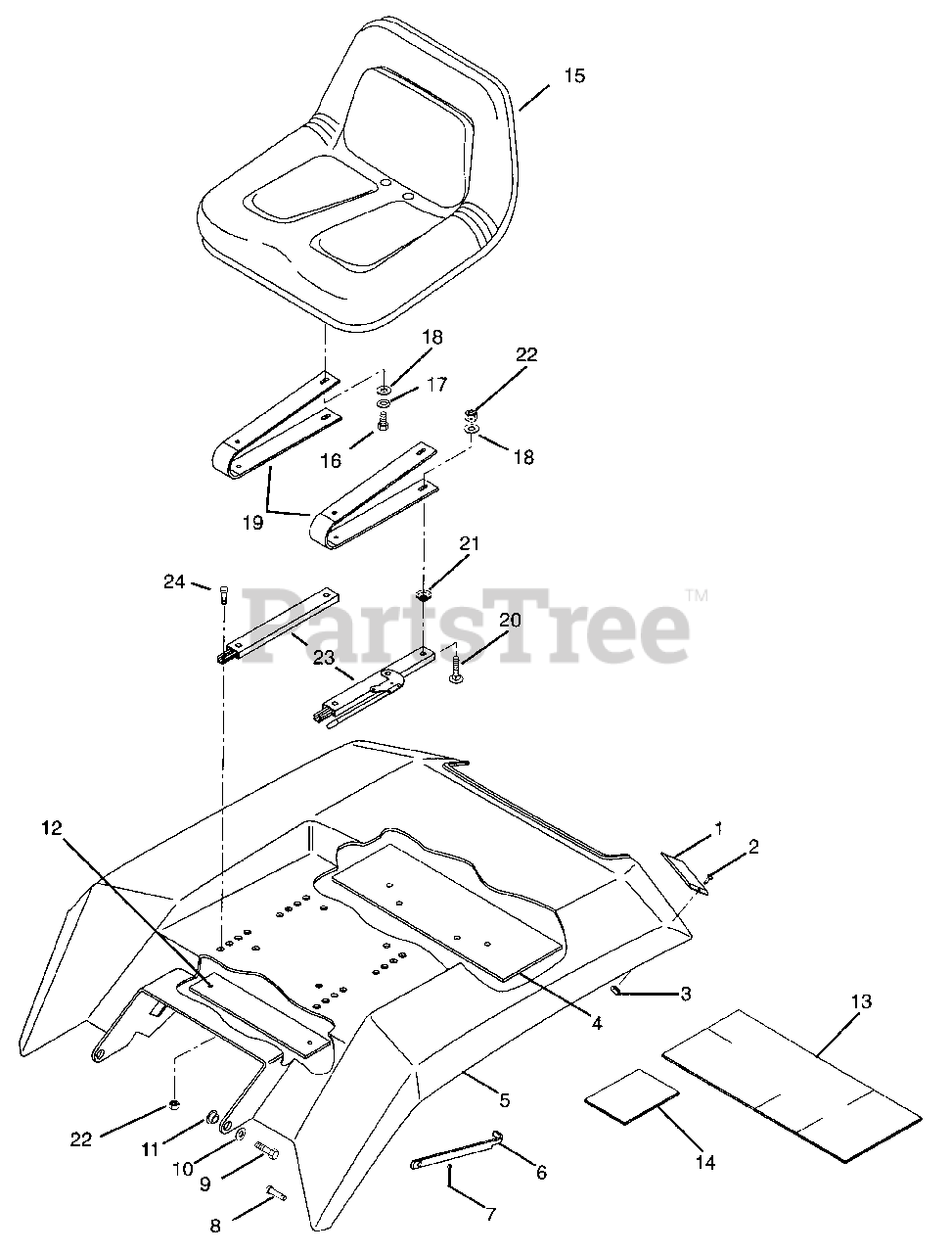

REAR DECK AND SEAT - 066, 067, 068, 069 - G SERIES Parts Diagram

  • Title

1

Gravely 051329

REFLECTOR
(Superseded to 07536500)

$23.99

$

Usually ships in 4-12 days

0

2

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06539200

NUT-LK 10-32 NY YWZC

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 051601

BRKT,SEAT SUPPORT
(Superseded to 08790900)

$34.99

$

Usually ships in 4-12 days

0

5

Gravely 040453

WLDMT,SEAT PAN NOTCHED
(Superseded to 08748500)

$

$

Not available

6

Gravely 024996

STRAP,FENDER HOLD-UP
(Superseded to 08727200)

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 06707500

PIN-CTR .06X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 1 left!

0

8

Gravely 018420

PIN-CLEV .250X.406
(Superseded to 06809700)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 024815

BSHG-FLG .406X.88X.270X.140
(Superseded to 05515800)

$9.99

$

In Stock, Qty 14

0

12

Gravely 051278

BRKT,SEAT
(Superseded to 09004051)

$

$

Not available

13

Gravely 08798800

HEAT SHIELD 30.5X14

$

$

Not available

14

Gravely 08798900

HEAT SHIELD 12X9

$

$

Not available

15

Gravely 09112400

SEAT, V-560 HIGH BACK

$

$

Not available

16

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 047528

SPRING, SEAT
(Superseded to 03486851)

$

$

Not available

20

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 035670

SEAT SLIDE SPACER
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

22

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 03600800

SEAT SLIDES -(RAME TAK-3010-4)

$

$

Not available

24

Gravely 039059

SCR-CAP BTHD.31-18X.875 GR5 PK
(Superseded to 07008600)

$

$

Not available

25

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0
