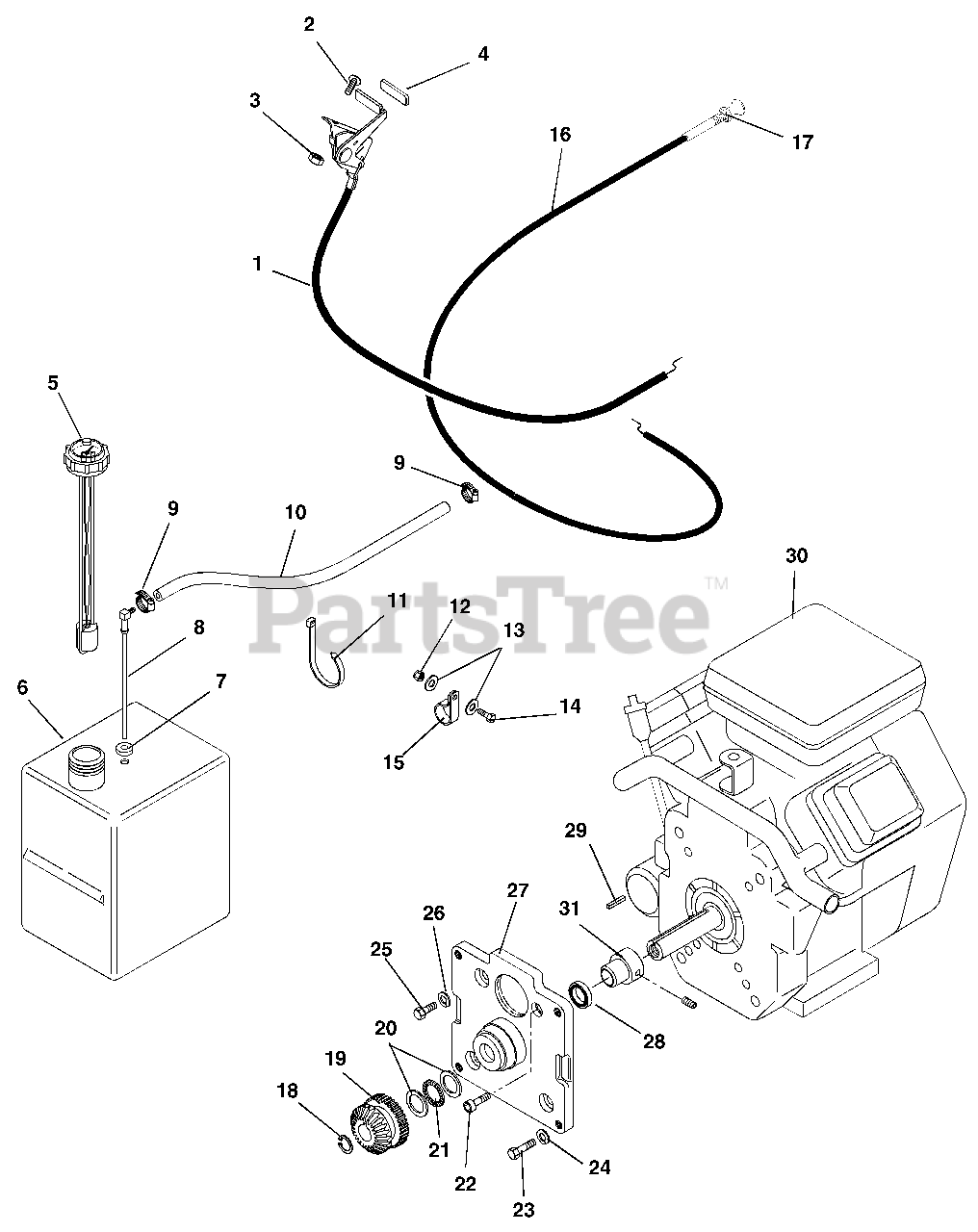

987070 - Gravely Lawn Tractor, 16hp Briggs & Stratton, With Hydraulic Lift (SN: 000101 & Above) Engine, Fuel And Exhaust System - Briggs & Stratton - 16 HP Parts Diagram

Lawn Tractor, 16hp Briggs & Stratton, With Hydraulic Lift

Engine, Fuel And Exhaust System - Briggs & Stratton - 16 HP Parts Diagram

  • Title

1

Gravely 06941300

CABLE, THROTTLE

$54.99

$

Usually ships in 4-12 days

0

2

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 07521500

GRIP

$

$

Not available

5

Gravely 047615

GAUGE,FUEL
(Superseded to 08983200)

$

$

Not available

6

Gravely 047612

TANK,FUEL
(Superseded to 08983000)

$

$

Not available

7

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 047614

FTG,TANK
(Superseded to 08983100)

$35.99

$

Usually ships in 4-12 days

0

9

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

10

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 03334000

CABLE CLAMP

$

$

Not available

16

Gravely 040133

CONTROL,CHOKE
(Superseded to 06926200)

$

$

Not available

17

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 05717200

RG-RTG-INT 1.111 X .042

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 08796400

GR, SPUR & BEVEL (INPUT)

Note: (Input)

$

$

Not available

20

Gravely 06434800

WSHR-THRST 1.00X1.56X.125

$

$

Not available

21

Gravely 011225

BRG-N-THRST 1.0X1.55X.078
(Superseded to 05427900)

$9.99

$

In Stock, only 2 left!

0

22

Gravely 421648

SCR-SKH .44-14X1.00
(Superseded to 05933000)

$

$

Not available

23

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

24

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 180146

BLT-HEX .44-14X1.25 GR5 YWZC
(Superseded to 05963800)

$2.99

$

In Stock, only 1 left!

0

26

Gravely 06310700

WSHR-LK .438X.133 HVY YWZC

$3.49

$

In Stock, only 1 left!

0

27

Gravely 087974

ADAPTER, ENGINE
(Superseded to 08797400)

$

$

Not available

28

Gravely 018517

SEAL 1.125X1.628X.250
(Superseded to 05615100)

$10.99

$

Usually ships in 4-12 days

0

29

Gravely 018345

KEY-SQ .248X1.25X.248
(Superseded to 06606900)

$2.99

$

In Stock, only 2 left!

0

30

Gravely 08240600

ENG, 16HP B&S VANGUARD HORIZ

$

$

Not available

31

Gravely 087977

SPACER-SPECIAL ENGINE
(Superseded to 08797700)

$224.99

$

Usually ships in 4-12 days

0
