987070 - Gravely Lawn Tractor, 16hp Briggs & Stratton, With Hydraulic Lift (SN: 000101 & Above) Number Eleven - Forward / Reverse Clutch Assembly Parts Diagram

Lawn Tractor, 16hp Briggs & Stratton, With Hydraulic Lift

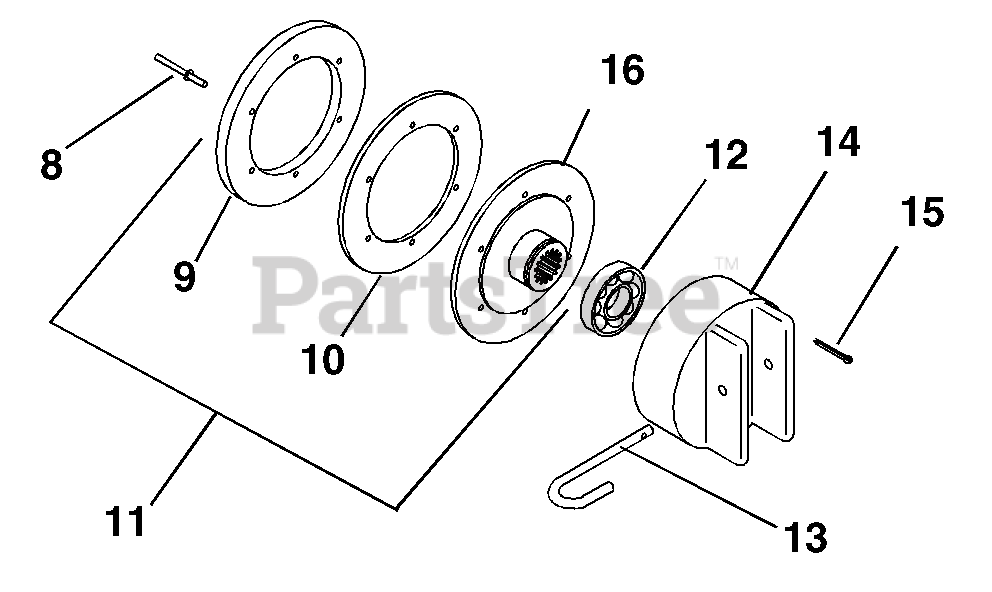

Number Eleven - Forward / Reverse Clutch Assembly Parts Diagram

  • Title

8

Gravely 044141

Rivet
(Superseded to 21267400)

Note: (Bag of 50 - P/N 041608)

$49.99

$

In Stock, only 3 left!

0

9

Gravely 040692

Lining, Clutch
(Superseded to 08751000)

$62.99

$

In Stock, only 2 left!

0

10

Gravely 042481

Ring, Clutch
(Superseded to 08759500)

$25.99

$

In Stock, only 2 left!

0

11

Gravely 042482

Assembly, Clutch and Ring
(Superseded to 08759600)

$

$

Not available

12

Gravely 035330

Bearing-Ball 1.57 x 3.15 x .71
(Superseded to 05420900)

$213.99

$

In Stock, only 3 left!

0

13

Gravely 035681

Pin, Clutch Spring
(Superseded to 08654800)

$47.99

$

Usually ships in 4-12 days

0

14

Gravely 034734

Trunion, Forward-Reverse Clutch
(Superseded to 08911000)

$97.99

$

In Stock, only 3 left!

0

15

Gravely 06707500

Pin-Cotter .06 x .75

$0.99

$

In Stock, only 1 left!

0

16

Gravely 042482

Disc,Clutch
(Superseded to 08759600)

$

$

Not available

Gravely 041608

Rivets - Bag of 50
(Superseded to 06807800)

$1.49

$

In Stock, Qty 20+

0
