987070 - Gravely Lawn Tractor, 16hp Briggs & Stratton, With Hydraulic Lift (SN: 000101 & Above) Number Two Shaft - Reverse Clutch Parts Diagram

Lawn Tractor, 16hp Briggs & Stratton, With Hydraulic Lift

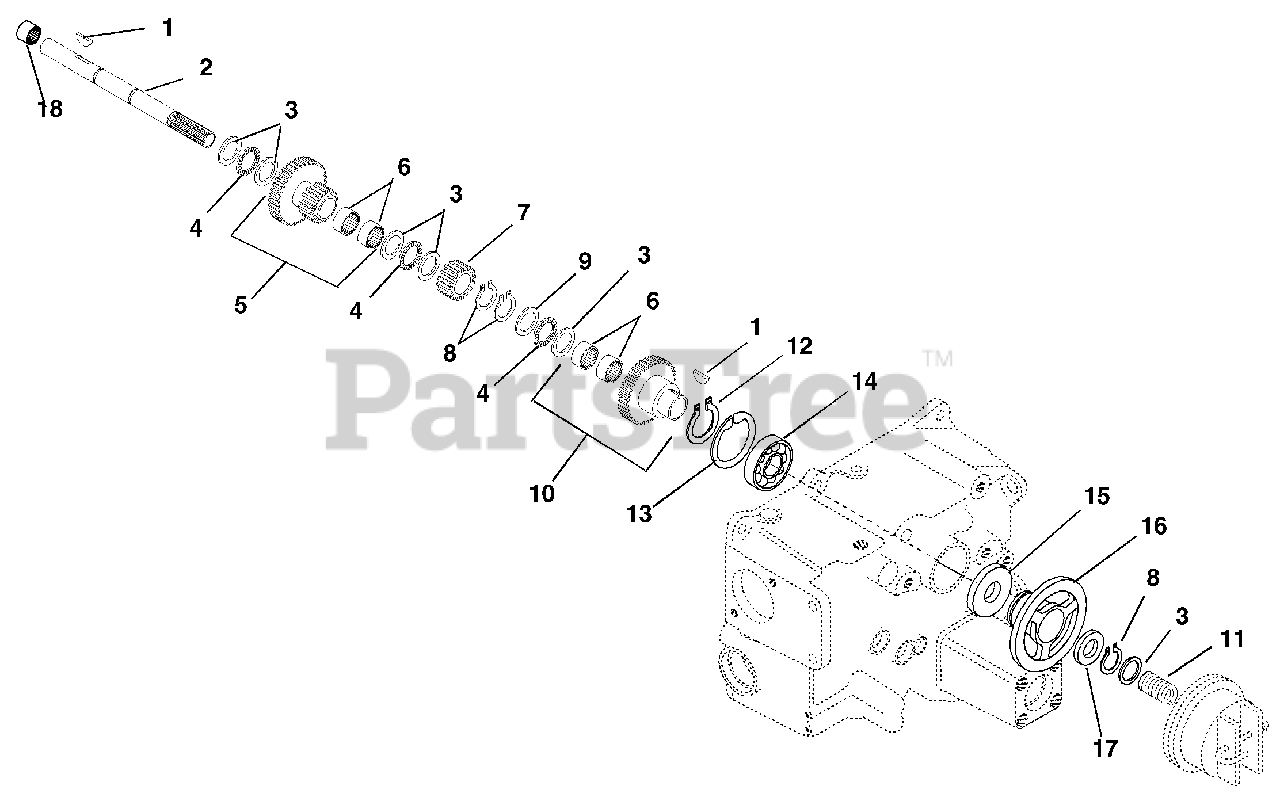

Number Two Shaft - Reverse Clutch Parts Diagram

  • Title

1

Gravely 431787

Key-Woodruff .19 x .63
(Superseded to 06609300)

$3.49

$

In Stock, Qty 8

0

2

Gravely 034730

Shaft, Splined Reverse Clutch
(Superseded to 08736400)

$

$

Not available

3

Gravely 036407

Washer-Hardened-Thrust .76 x 1.23 x .031
(Superseded to 06413400)

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 006741

Bearing-Needle Thrust .75 x 1.24 x .078
(Superseded to 05410400)

$13.99

$

In Stock, Qty 7

0

5

Gravely 018020

Gear,Idler Assembly
(Superseded to 08705800)

$216.99

$

Usually ships in 4-12 days

0

6

Gravely 017949

Bearing-Roller .75 x 1.0 x .50
(Superseded to 05420400)

$21.99

$

Usually ships in 4-12 days

0

7

Gravely 018003

Gear,10 Diametral Pitch 16 Teeth x .75
(Superseded to 08705100)

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 011135

Ring-Retaining-Internal .75 x .042
(Superseded to 05700135)

$2.99

$

In Stock, only 2 left!

0

9

Gravely 006742

Washer-Thrust-Hardened .75 x 1.24 x .062
(Superseded to 06431900)

$10.99

$

Usually ships in 4-12 days

0

10

Gravely 017947

Assembly, Reverse Gear and Bearing
(Superseded to 08703000)

$

$

Not available

11

Gravely 020444

Spring-Compression .09 x .80 x 1.00
(Superseded to 08329100)

$14.99

$

In Stock, only 4 left!

0

12

Gravely 017919

Ring-Retaining-External 1.82 x .062
(Superseded to 05712100)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 018872

Ring-Retaining-Internal 3.52 x .11
(Superseded to 05713000)

$14.99

$

Usually ships in 4-12 days

0

14

Gravely 017915

Bearing-Ball 1.97 x 3.14 x .63
(Superseded to 05420300)

$68.99

$

Usually ships in 4-12 days

0

15

Gravely 017917

Seal 2.25 x 3.00 x .38
(Superseded to 05614000)

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 051555

Hub,Clutch
(Superseded to 08790700)

$479.99

$

Usually ships in 4-12 days

0

17

Gravely 018035

Seal .75 x 1.63 x .25
(Superseded to 05614600)

$13.99

$

In Stock, only 4 left!

0

18

Gravely 011063

Bearing-Needle .75 x 1.00 x .75
(Superseded to 05427500)

$15.99

$

Usually ships in 4-12 days

0
