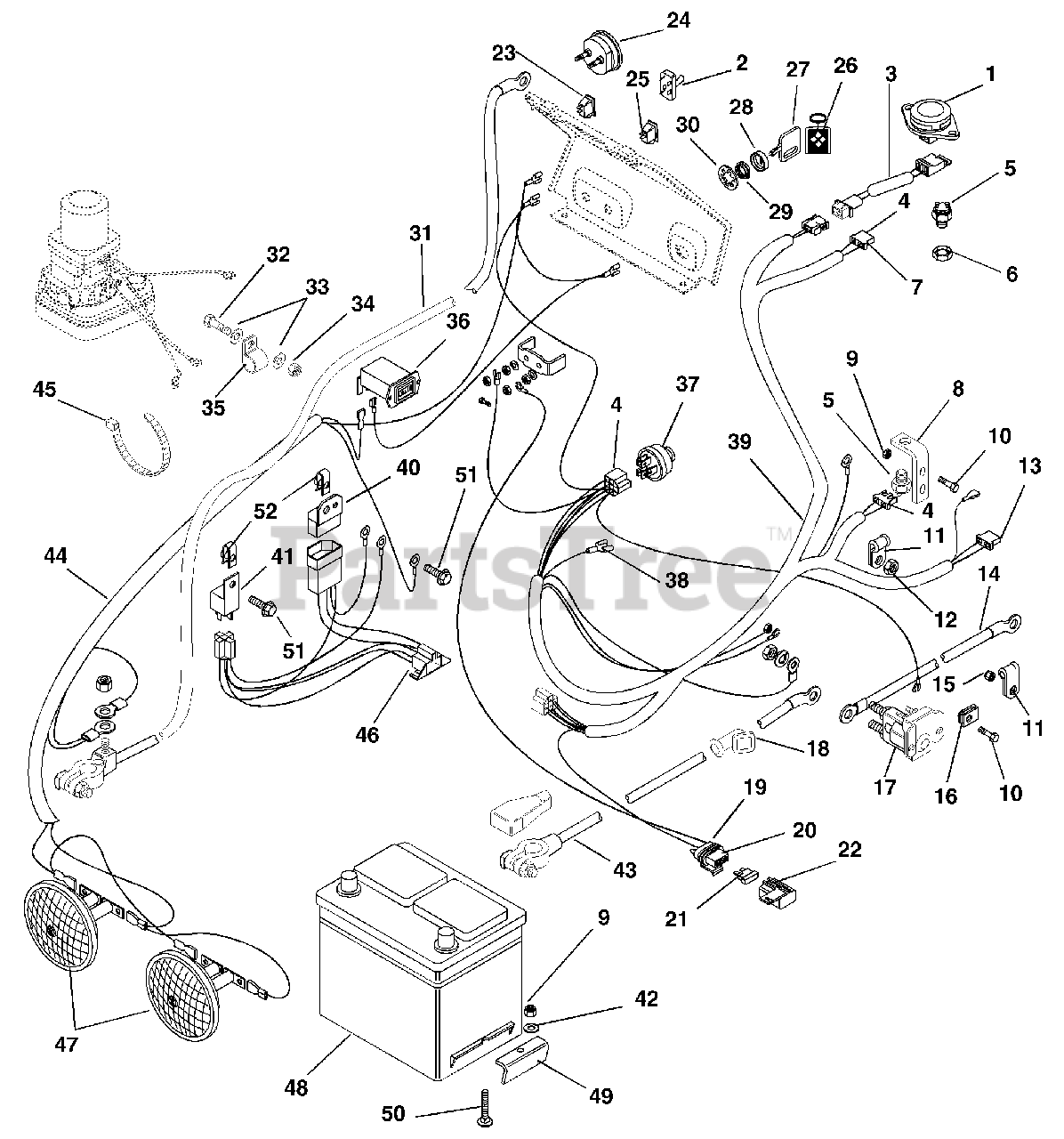

987071 - Gravely Lawn Tractor, 13.5hp Robin Subaru, With Hydraulic Lift (SN: 000101 & Above) Electrical System Parts Diagram

Lawn Tractor, 13.5hp Robin Subaru, With Hydraulic Lift

Electrical System Parts Diagram

  • Title

1

Gravely 03654200

Switch, Seat

$15.99

$

In Stock, only 3 left!

0

2

Gravely 03437900

Assembly, Switch

$73.99

$

Usually ships in 4-12 days

0

3

Gravely 045601

Harness, Wiring Seat Switch
(Superseded to 08769000)

$

$

Not available

4

Gravely 038059

Terminal
(Superseded to 08540001)

$4.49

$

In Stock, Qty 5

0

5

Gravely 020916

Switch-Neutral Start (N.O.)
(Superseded to 02913100)

Note: (N.O.)

$46.99

$

In Stock, Qty 6

0

6

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 042176

Connector, 2-Wire Switch
(Superseded to 08550000)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 020660

Bracket, Switch
(Superseded to 08720300)

$

$

Not available

9

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

11

Gravely 027122

Clamp
(Superseded to 06907200)

$

$

Not available

12

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 042289

Connector
(Superseded to 20709401)

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 039862

Cable, Starter
(Superseded to 08745600)

Note: (Models 071, 072) (S/N Range 000101 - 000214)

$

$

Not available

14

Gravely 049032

Cable, Starter
(Superseded to 08868500)

Note: (Models 071, 072) (S/N Range 000215 and up)

$

$

Not available

14

Gravely 040135

Cable, Starter
(Superseded to 08746300)

Note: (Model 070)

$

$

Not available

15

Gravely 06535500

Nut-Locking-Center .38-16
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 011676

Nut-Speed .25-20
(Superseded to 07016800)

$

$

Not available

17

Gravely 044766

Solenoid
(Superseded to 03551000)

$43.99

$

In Stock, Qty 9

0

18

Gravely 033847

Boot, Insulator
(Superseded to 03384700)

$

$

Not available

19

Gravely 045920

Assembly, Connector Weather Tight
(Superseded to 20822700)

$

$

Not available

20

Gravely 045922

Terminal For 14-16 Gauge Wire
(Superseded to 20822900)

$

$

Not available

21

Gravely 045037

Fuse, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, Qty 12

0

22

Gravely 045921

Cover
(Superseded to 20822800)

$

$

Not available

23

Gravely 050673

Light, Indicator
(Superseded to 05128700)

$7.99

$

In Stock, Qty 8

0

24

Gravely 021848

Gauge, Ammeter
(Superseded to 03490800)

$

$

Not available

25

Gravely 046060

Switch, Light
(Superseded to 08973300)

$7.49

$

In Stock, Qty 10

0

26

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

27

Gravely 02460700

Key With Cap

$10.99

$

In Stock, Qty 20+

0

28

Gravely 045490

Cap, Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 18

0

29

Gravely 045489

Nut-Panel .56-24
(Superseded to 06517400)

Note: (Models 071, 072)

$21.99

$

In Stock, Qty 7

0

29

Gravely 045497

Nut-Panel .625-32
(Superseded to 06517300)

Note: (Model 070)

$9.49

$

Usually ships in 4-12 days

0

30

Gravely 06310900

Washer-Locking-Internal .56 x .040

Note: (Models 071, 072)

$2.49

$

In Stock, only 2 left!

0

30

Gravely 06301900

Washer-Locking-Internal .63 x .045
(Superseded to 06306900)

Note: (Model 070)

$4.99

$

Usually ships in 4-12 days

0

31

Gravely 039871

Cable, Negative Battery
(Superseded to 08745800)

Note: (Model 070)

$

$

Not available

31

Gravely 04901600

Cable, Negative Battery

Note: (Models 071, 072)

$

$

Not available

32

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, Qty 10

0

33

Gravely 06437200

Washer-Flat-Steel .34 x .69 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 050395

Clamp-Steel 1.00
(Superseded to 06917900)

$15.99

$

Usually ships in 4-12 days

0

36

Gravely 038256

Hour Meter
(Superseded to 09497400)

$25.99

$

In Stock, only 1 left!

0

37

Gravely 03602300

Switch, Key

Note: (Models 071, 072)

$26.99

$

In Stock, Qty 20+

0

37

Gravely 08883300

Switch,Key
(Superseded to 59211900)

Note: (Model 070)

$92.99

$

Usually ships in 4-12 days

0

38

Gravely 038058

Connector
(Superseded to 20645101)

$8.49

$

In Stock, Qty 6

0

39

Gravely 04901800

Harness, Wiring

Note: (Models 071, 072)

$

$

Not available

39

Gravely 08789200

Harness, Wiring

Note: (Model 070)

$

$

Not available

40

Gravely 09044200

Module, Interlock Delay

$73.99

$

Usually ships in 4-12 days

0

41

Gravely 03042800

Relay
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

42

Gravely 06437300

Washer-Flat-Steel 28 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

43

Gravely 08745500

Cable, Battery To Magneto Switch

$

$

Not available

44

Gravely 08779600

Harness, Wiring Ground and Lights

$

$

Not available

45

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

46

Gravely 09044100

Adapter, Module

$48.99

$

Usually ships in 4-12 days

0

47

Gravely 039069

Head Light
(Superseded to 03114900)

$21.99

$

In Stock, only 2 left!

0

48

Gravely 04202200

Battery
(Superseded to 02078500)

$

$

Not available

49

Gravely 037742

Clamp
(Superseded to 08539500)

$23.99

$

In Stock, only 1 left!

0

50

Gravely 06220000

Bolt-Round Head Square Neck .25-20 x 1.75 Grade 5
(Superseded to 06200404)

$2.99

$

Usually ships in 4-12 days

0

51

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

52

Gravely 07027700

Nut-Retaining Ring 10-24

$

$

Not available
