987071 - Gravely Lawn Tractor, 13.5hp Robin Subaru, With Hydraulic Lift (SN: 000101 & Above) Engine, Fuel And Exhaust System - Robin - 13.5 HP Parts Diagram

Lawn Tractor, 13.5hp Robin Subaru, With Hydraulic Lift

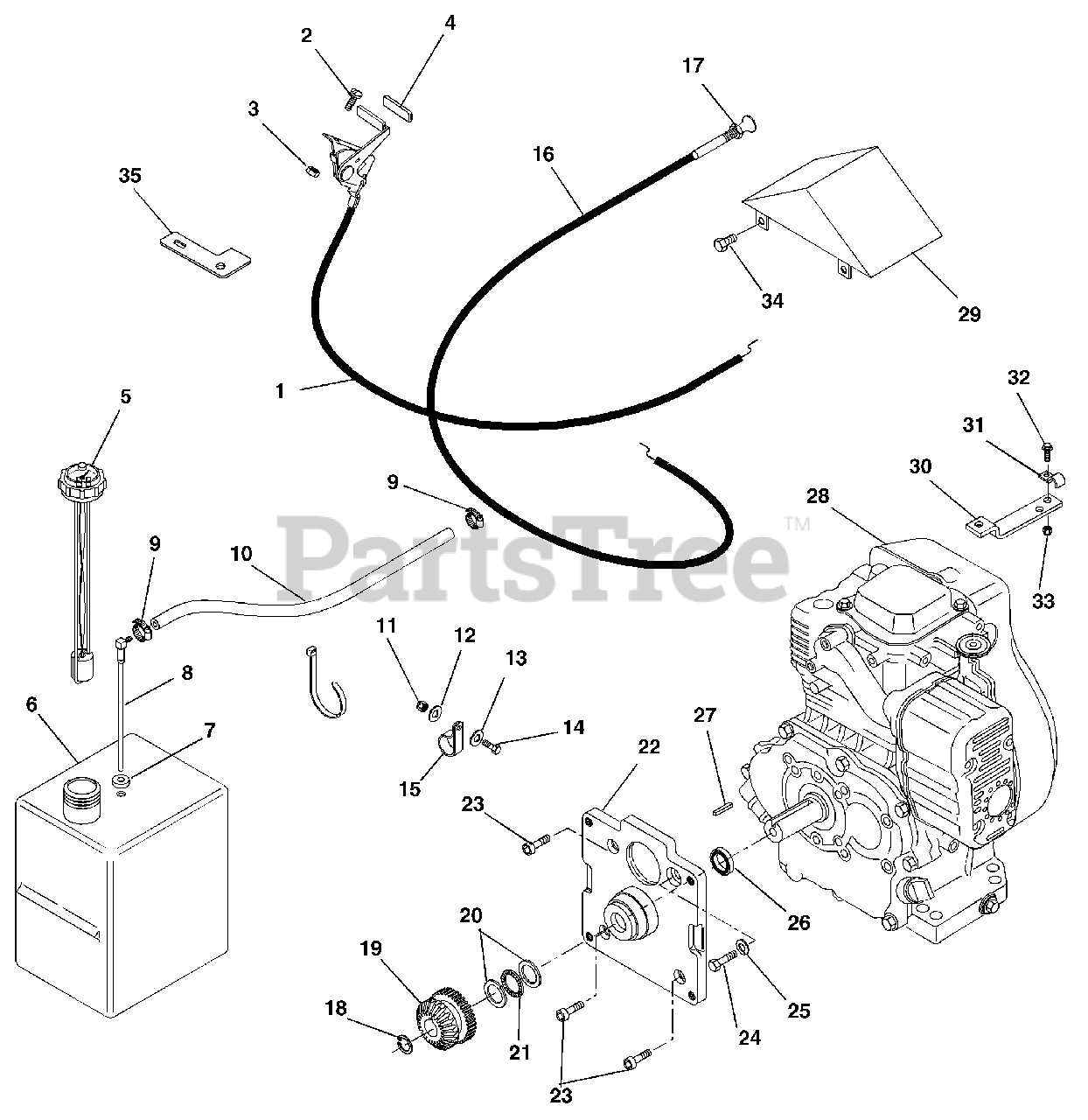

Engine, Fuel And Exhaust System - Robin - 13.5 HP Parts Diagram

  • Title

1

Gravely 06942700

CABLE, THROTTLE CONTROL

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 07521500

GRIP

$

$

Not available

5

Gravely 047615

GAUGE,FUEL
(Superseded to 08983200)

$

$

Not available

6

Gravely 047612

TANK,FUEL
(Superseded to 08983000)

$

$

Not available

7

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 047614

FTG,TANK
(Superseded to 08983100)

$35.99

$

Usually ships in 4-12 days

0

9

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

10

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 03334000

CABLE CLAMP

$

$

Not available

16

Gravely 06942600

CABLE, CHOKE CONTROL

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 018344

RG-RTNG-INT 1.249X.050
(Superseded to 05712600)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 08790200

GR,SPUR & BEVEL (INPUT)

Note: (Input)

$329.99

$

Usually ships in 4-12 days

0

20

Gravely 06434200

WSHR-THRST 1.125X1.750X.1245

$21.99

$

Usually ships in 4-12 days

0

21

Gravely 05421000

BRG-N-THRST 1.74X1.127X.078

$10.99

$

Usually ships in 4-12 days

0

22

Gravely 04900900

ADAPTER, ENGINE

$

$

Not available

23

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 05933000

SCR-SKH .44-14X1.00

$

$

Not available

25

Gravely 05963600

BLT-HEX .31-24X1.00 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 05613000

SEAL 1.987X1.375X.313

$17.99

$

In Stock, Qty 13

0

27

Gravely 018345

KEY-SQ .248X1.25X.248
(Superseded to 06606900)

$2.99

$

In Stock, only 2 left!

0

28

Gravely 08255900

ENGINE, ROBIN EH410YS7310

$

$

Not available

29

Gravely 08578700

PANEL, LINKAGE COVER

$11.99

$

Usually ships in 4-12 days

0

30

Gravely 08594400

BRACKET, CABLE

$

$

Not available

31

Gravely 06928000

CLIP

$4.99

$

Usually ships in 4-12 days

0

32

Gravely 06116400

SCR-MCH #6-32X1.0 YWZC

$

$

Not available

33

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 05956300

BLT-HEX M8 X 1.25X16 YWZC

$

$

Not available

35

Gravely 04902600

STOP, THROTTLE CABLE

$

$

Not available
