987071 - Gravely Lawn Tractor, 13.5hp Robin Subaru, With Hydraulic Lift (SN: 000101 & Above) Front And Rear Wheels Parts Diagram

Lawn Tractor, 13.5hp Robin Subaru, With Hydraulic Lift

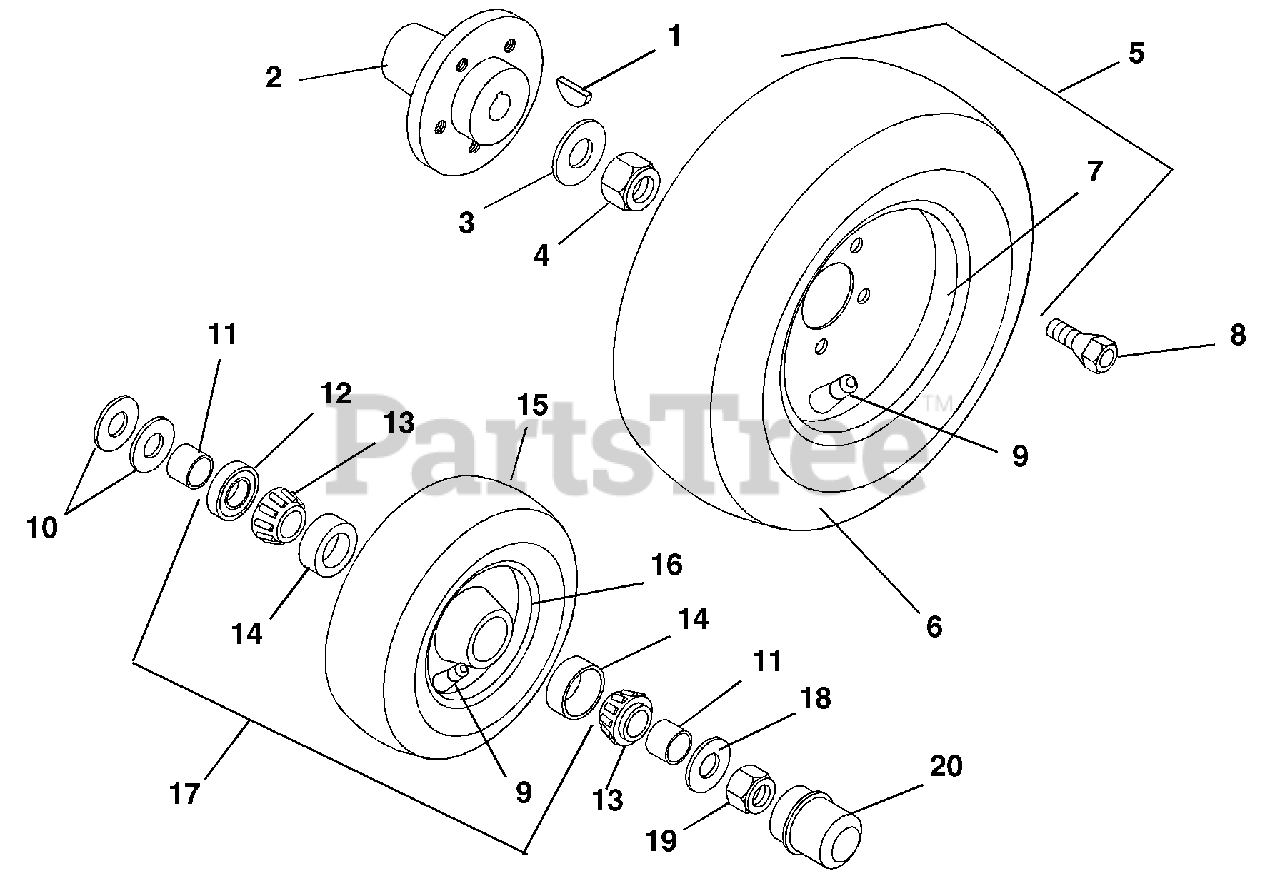

Front And Rear Wheels Parts Diagram

  • Title

1

Gravely 187184

KEY-WDRF .25X1.38X.406 SAE127
(Superseded to 06609000)

$3.99

$

In Stock, only 4 left!

0

2

Gravely 040304

HUB,TAPERED 4-WHL
(Superseded to 08747100)

Note: (Model 070)

$

$

Not available

Gravely 040304

HUB,TAPERED 4-WHL
(Superseded to 08747100)

Note: (Model 072)

$

$

Not available

Gravely 04903553

HUB
(Superseded to 04903500)

Note: (Model 071)

$

$

Not available

Gravely 04903553

HUB
(Superseded to 04903500)

Note: (Model 072)

$

$

Not available

3

Gravely 06439800

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, Qty 11

0

4

Gravely 06535400

NUT-LK-CTR .75-10 YWZC

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 052994

TIRE,REAR 23X8.50-12
(Superseded to 20928200)

Note: (Models 070, 071)

$156.99

$

Usually ships in 4-12 days

0

Gravely 052995

ASSY, TIRE & WHEEL, 23X10.5-12
(Superseded to 07150100)

Note: (Model 072)

$

$

Not available

6

Gravely 048920

TIRE,REAR 23X8.50-12
(Superseded to 20928000)

Note: (Models 070, 071)

$

$

Not available

Gravely 048921

TIRE, 23X10.50-12
(Superseded to 20928100)

Note: (Model 072)

$

$

Not available

7

Gravely 048922

WLDMT,RIM
(Superseded to 20928200)

$156.99

$

Usually ships in 4-12 days

0

8

Gravely 07051400

BOLT, LUG .44-20X1.00 YWZC

$10.99

$

In Stock, only 4 left!

0

9

Gravely 011191

VALVE STEM ASS'Y
(Superseded to 07520000)

$2.99

$

In Stock, only 1 left!

0

10

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 018448

SPACER .752X1.000X.500
(Superseded to 03495900)

$16.99

$

In Stock, only 4 left!

0

12

Gravely 018447

SEAL 1.206X1.785X.486
(Superseded to 05613200)

$17.99

$

In Stock, Qty 7

0

13

Gravely 018446

BRG-CONE .750X.61
(Superseded to 05404500)

$29.99

$

In Stock, Qty 20+

0

14

Gravely 018445

BRG-CUP 1.781X.475
(Superseded to 05404400)

$11.99

$

In Stock, Qty 17

0

15

Gravely 018923

TIRE,FRONT 16 X 6.50-8

Note: (Models 070, 071)

$

$

Not available

Gravely 046063

T/WHL ASSY 16X6.5-8
(Superseded to 07119600)

Note: (Model 072)

$221.99

$

Usually ships in 4-12 days

0

16

Gravely 048925

T/WHL ASSY 16X6.5-8
(Superseded to 07119600)

$221.99

$

Usually ships in 4-12 days

0

17

Gravely 048542

T/WHL ASSY 16X6.5-8
(Superseded to 07119600)

Note: (Models 070, 071)

$221.99

$

Usually ships in 4-12 days

0

Gravely 048538

T/WHL ASSY 16X6.5-8
(Superseded to 07119600)

Note: (Model 072)

$221.99

$

Usually ships in 4-12 days

0

18

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

20

Gravely 018449

DUST CAP
(Superseded to 03496000)

$15.99

$

In Stock, Qty 8

0
